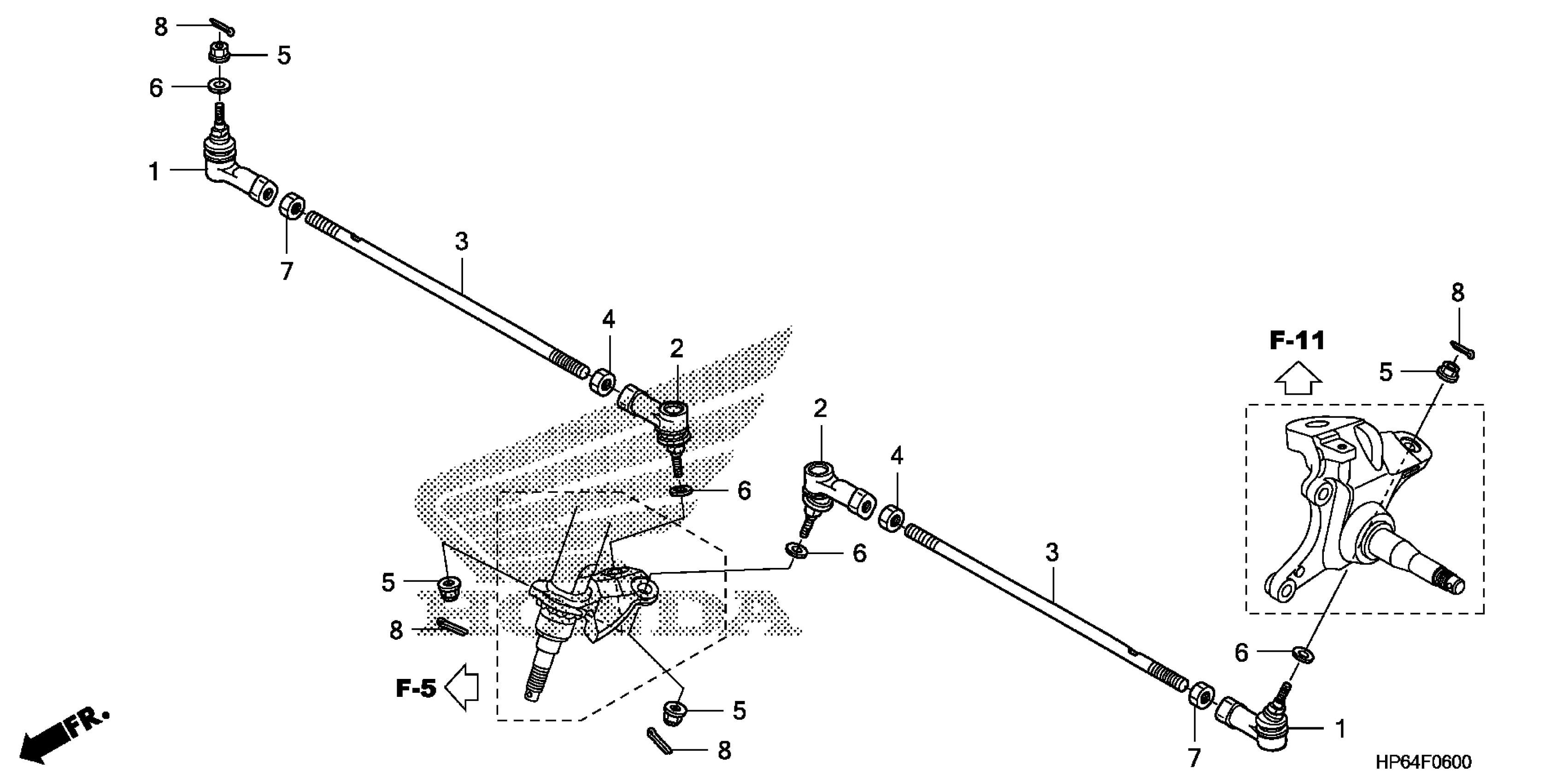

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 TIE ROD Diagram

#

Description
Price

1

END, TIE ROD (RIGHT HAND THREAD)

53157-HP6-A01

$40.02

2

END, TIE ROD (LEFT HAND THREAD)

53158-HP6-A01

$37.72

3

TIE ROD

53521-HP6-A00

$30.67

4

NUT, TIE ROD LOCK (LEFT HAND THREAD) (INSIDE)

53526-679-000

$3.10

5

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

6

WASHER, TIE ROD END

90504-HP6-A00

$3.19

7

NUT, HEX. (12MM) (OUTSIDE)

94031-12280

$1.49

8

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

8

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

8

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

8

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

8

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

8

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

8

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

8

PIN, COTTER (2.0X22)

94201-29220

$1.49
