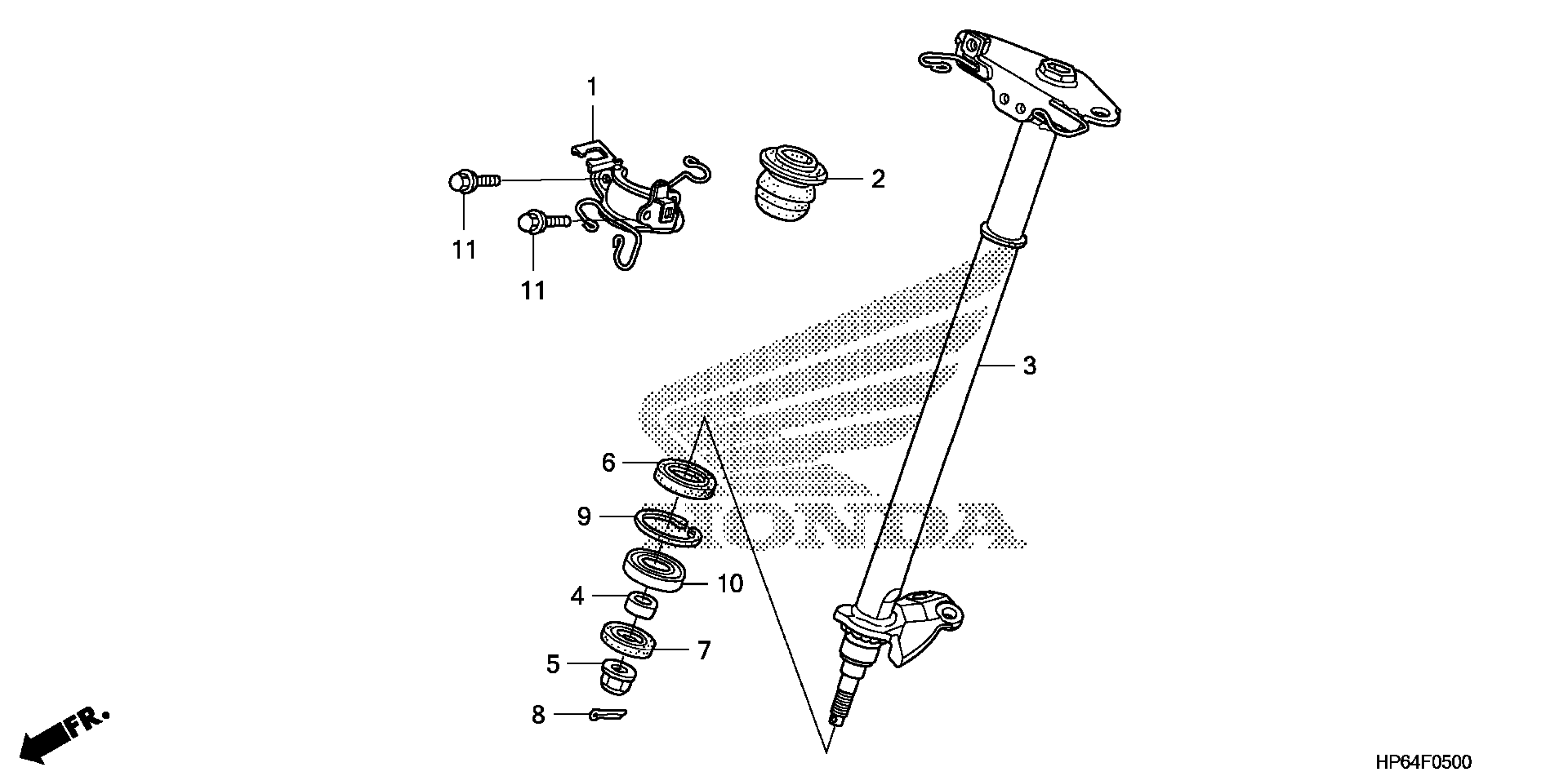

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 STEERING SHAFT Diagram

HOLDER, STEERING SHAFT

53220-HP6-A00

$28.64

BUSH, STEERING

53221-HP1-003

$14.49

SHAFT, STEERING

53310-HP6-A00

$353.25

COLLAR, STEERING SHAFT

53317-HM8-A00

$6.59

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

BEARING, RADIAL BALL (6203UU)

96150-62033-10

$18.12

BOLT, FLANGE (8X16)

96300-08016-07

$1.49

BOLT, FLANGE (8X16) This part replaces 96400-08016-07.

96300-08016-07

$1.49
