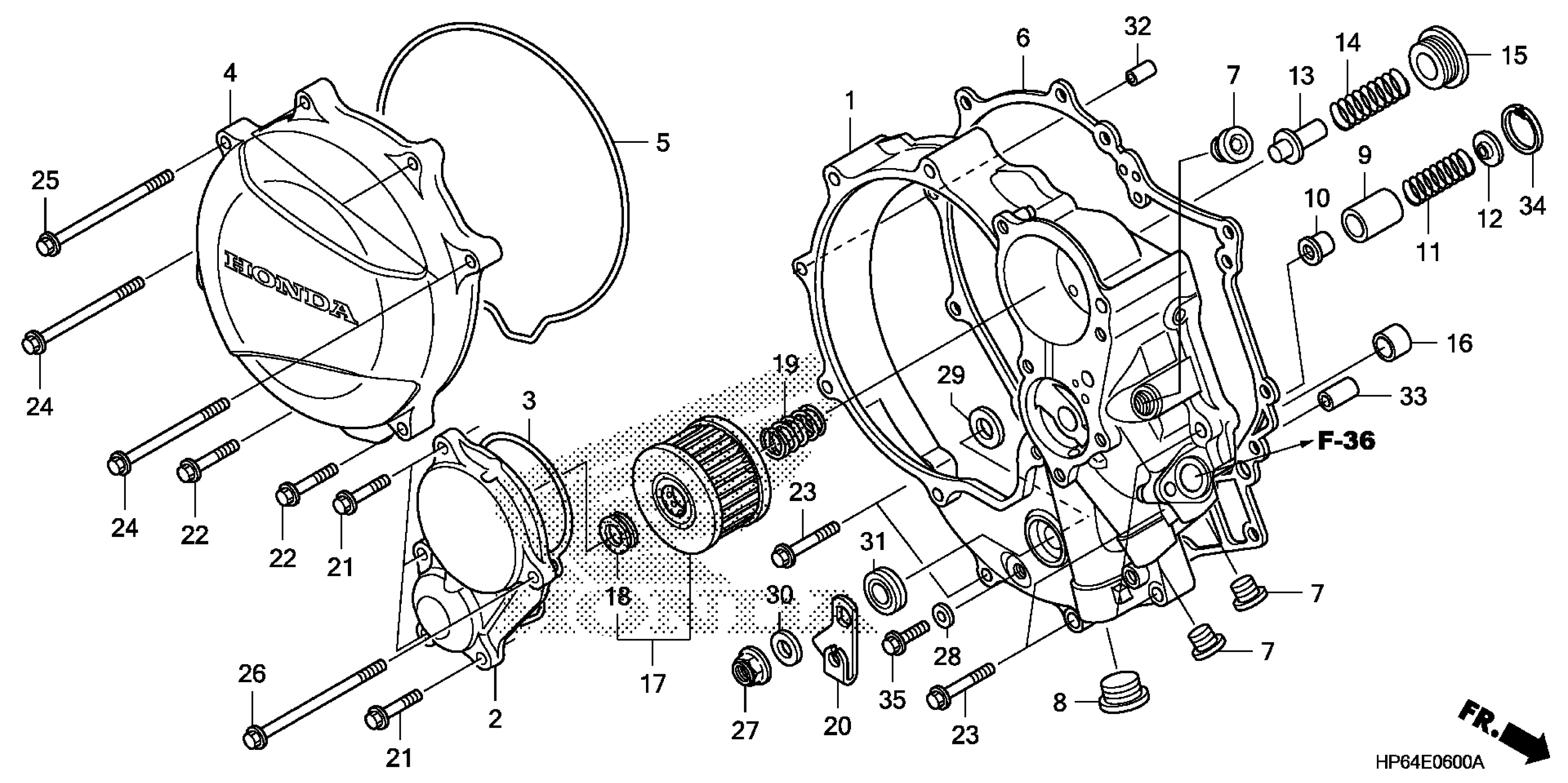

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-HP6-A00

$214.97

2

COVER, OIL FILTER

11333-HP6-A00

Unavailable

3

GASKET, OIL FILTER COVER

11335-HP6-A00

$7.08

4

COVER, CLUTCH

11351-HP6-A00

$93.47

5

GASKET, CLUTCH COVER

11352-HP6-A00

$6.12

6

GASKET, R. COVER

11394-HP6-A00

Unavailable

7

BOLT, SEALING (12MM)

12205-KE8-300

$5.85

8

BOLT, SEALING (18MM) (Honda Code 2156917)

12206-ML8-300

$8.82

8

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$8.82

8

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$8.82

8

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$8.82

9

VALVE, OIL LEAK STOPPER

15106-MG3-000

$15.68

10

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.31

11

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.51

12

SEAT B, SPRING

15111-MG3-000

$2.69

13

VALVE, RELIEF

15231-HP6-A00

$7.13

14

SPRING, RELIEF VALVE

15232-HM3-670

$1.79

15

CAP, RELIEF VALVE

15235-HP0-A00

$9.13

16

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.83

17

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.57

17

ELEMENT, OIL FILTER

15410-KF0-315

$5.57

17

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.57

18

RUBBER, FILTER

15413-MC8-000

Unavailable

19

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

20

LEVER, REVERSE STOPPER

24865-HP6-A00

Unavailable

21

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.81

22

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

23

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.68

24

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.32

25

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$2.97

26

BOLT, FLANGE (6X85) (NSHF)

90004-GHB-800

$2.51

27

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

28

WASHER, SEALING (6MM)

90441-706-000

$1.07

29

WASHER, THRUST (12MM)

90452-166-600

$2.21

30

WASHER, CRANK ARM

90545-044-000

$1.69

31

OIL SEAL (12X22X5)

91201-965-000

$3.87

32

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

33

PIN A, DOWEL (12X20)

94301-12200

$2.80

34

CIRCLIP (INNER) (11MM)

94520-11000

$1.03

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
