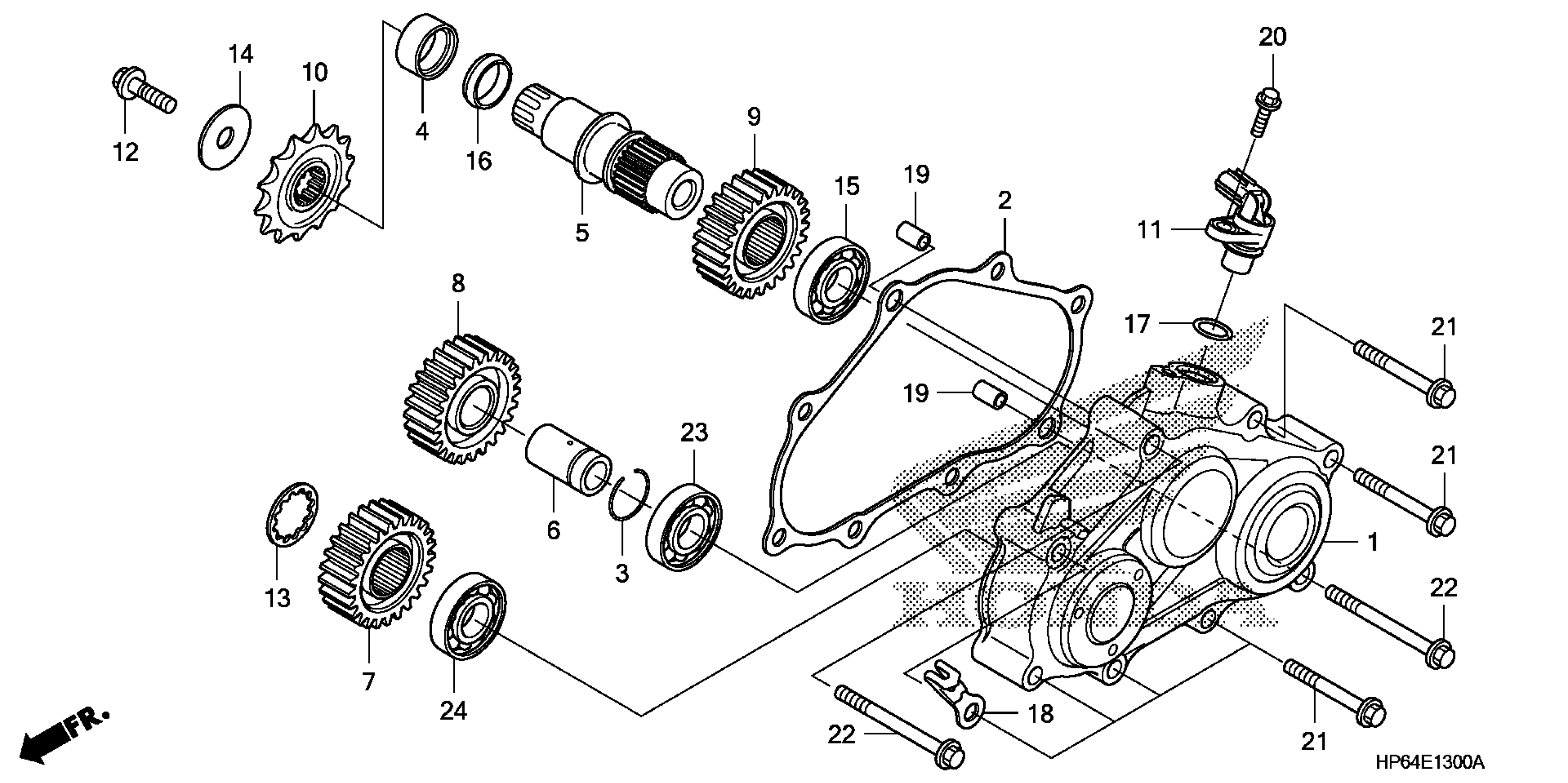

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 REDUCTION GEAR Diagram

#

Description
Price

1

COVER, REDUCTION GEAR

11371-HP6-A00

Unavailable

2

GASKET, REDUCTION COVER

11375-HP6-A00

$2.25

3

CLIP, PISTON PIN (22MM) (Honda Code 1206705)

13112-MC7-000

$2.17

4

COLLAR, COUNTERSHAFT

23225-HP1-670

$14.49

5

SHAFT, FINAL

23611-HP6-A00

$52.54

6

SHAFT, FINAL IDLE

23615-HP6-A00

$15.41

7

GEAR, FINAL DRIVE (23T)

23621-HP6-A00

Unavailable

8

GEAR, FINAL IDLE (26T)

23631-HP6-A00

Unavailable

9

GEAR, FINAL DRIVEN (25T)

23641-HP6-A00

$46.43

10

SPROCKET, DRIVE (14T)

23802-HP1-670

$32.18

11

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$39.56

11

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$39.56

12

BOLT, SPECIAL (10MM)

90037-422-003

$6.82

13

WASHER, SPLINE (26MM)

90402-HP6-A00

$2.17

14

WASHER (10.2MM)

90459-438-000

$5.43

15

BEARING, BALL (25X52X15) (NTN)

91003-PY4-004

$29.58

16

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.41

17

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

18

CLIP, WIRE HARNESS

91405-689-000

$9.68

19

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24

20

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

21

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

22

BOLT, FLANGE (8X60)

95701-08060-00

$1.38

23

BEARING, RADIAL BALL (6005)

96100-60050-00

$10.11

24

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98
