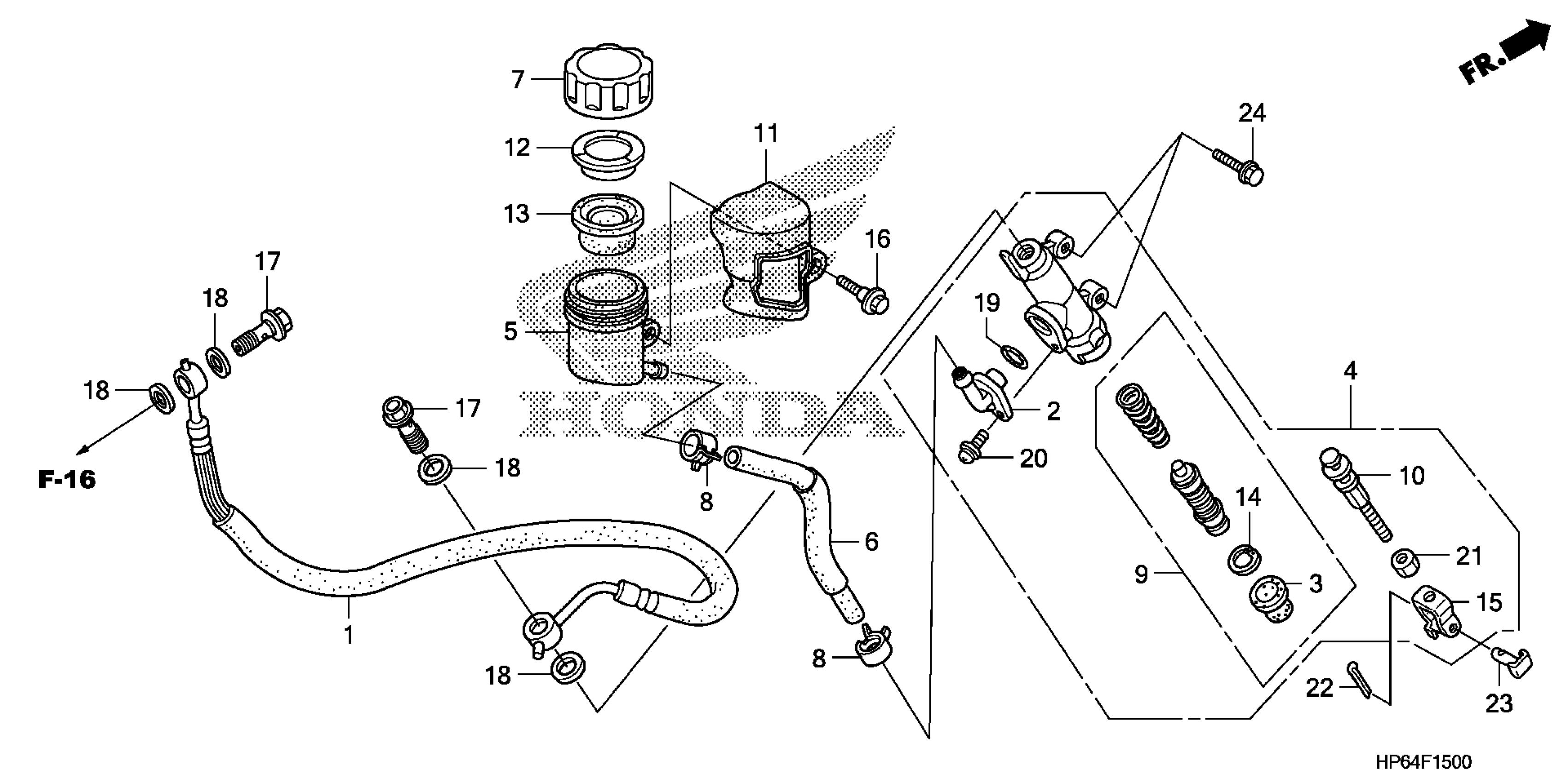

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-HP6-A01

$37.51

2

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

3

BOOT

43504-MB2-006

$9.01

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-HP6-A01

$121.12

5

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

6

HOSE, RR. BRAKE MASTER CYLINDER

43512-HP6-A01

$11.96

7

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

9

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

10

ROD, PUSH (NISSIN)

43530-HC0-006

$21.10

11

COVER, RR. MASTER CYLINDER CUP

43560-HP6-A00

Unavailable

12

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

13

DIAPHRAGM

45520-GM9-711

$8.22

14

CIRCLIP

46182-MEL-D21

$1.77

15

JOINT, BRAKE ROD

46504-MAL-601

$12.20

16

BOLT, FLANGE (6MM)

90139-MCA-A60

$2.80

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

O-RING (14.8X2.4)

91212-422-006

Unavailable

20

SCREW-WASHER (4X12)

93893-04012-07

$1.22

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

21

NUT, HEX. (8MM)

94002-08000-0S

$1.19

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

22

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$0.94

22

PIN, COTTER (2.0X22)

94201-29220

$0.94

23

PIN D, JOINT

95015-54000

$3.95

24

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
