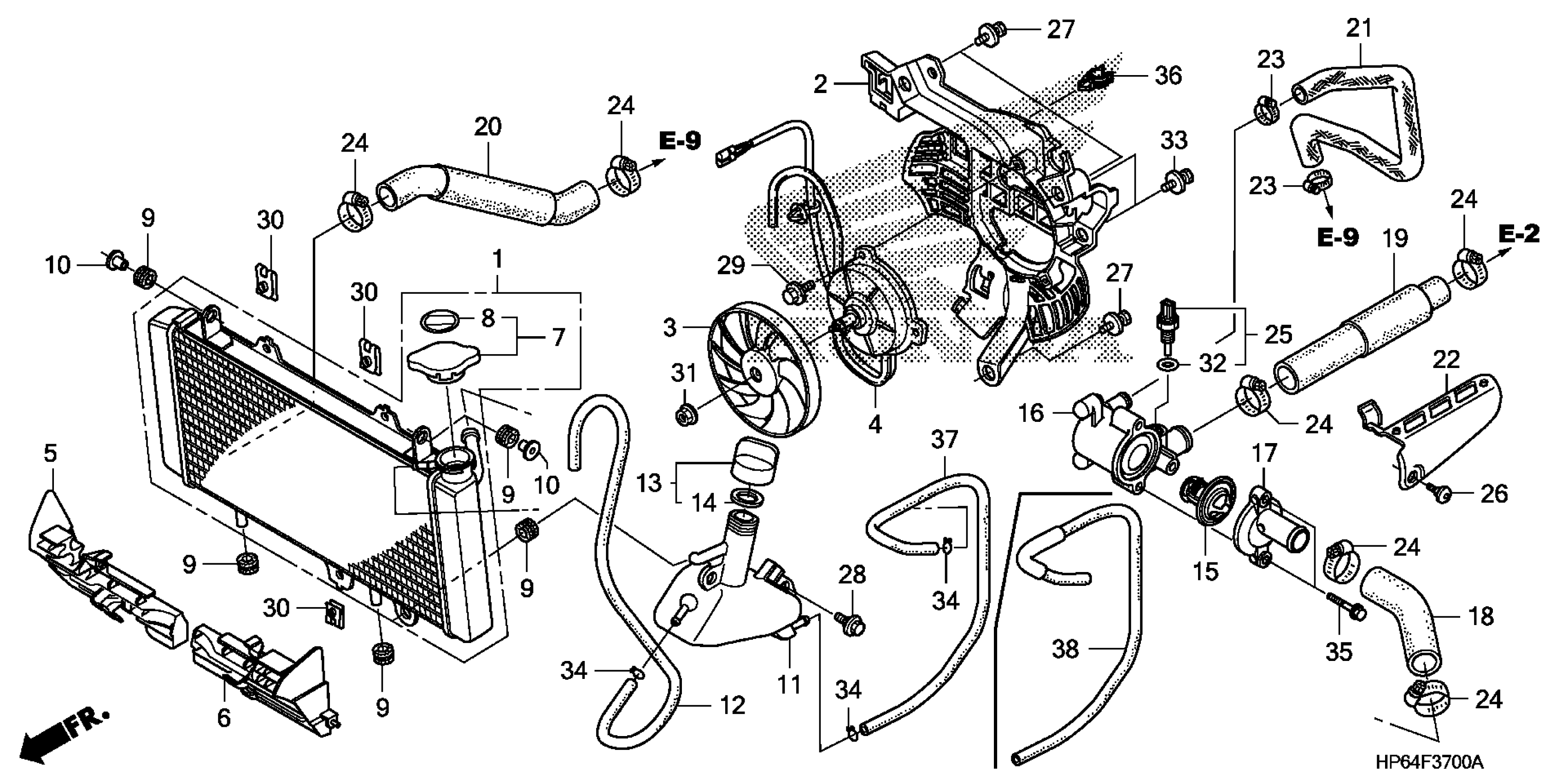

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 RADIATOR Diagram

RADIATOR

19010-HP6-A01

Unavailable

STAY, FAN MOTOR

19015-HP6-A11

Unavailable

FAN, COOLING

19020-HP6-A01

Unavailable

MOTOR ASSY., FAN

19030-HP6-A01

Unavailable

GRILLE, R. RADIATOR

19034-HP6-A00

$34.57

GRILLE, L. RADIATOR

19035-HP6-A00

$34.57

CAP, RADIATOR

19037-GEE-710

$27.19

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

TANK, RADIATOR RESERVE

19101-HP6-A00

Unavailable

TUBE, RADIATOR RESERVE

19102-HP6-A00

$4.87

CAP ASSY., RESERVE TANK

19106-GET-000

$6.42

GASKET, RESERVE TANK

19107-GET-000

$3.49

THERMOSTAT SET This part replaces 19300-HN8-003.

19300-HN8-305

$58.86

THERMOSTAT SET

19300-HN8-305

$58.86

CASE, THERMOSTAT

19310-HP6-A00

$36.78

COVER, THERMOSTAT

19315-HP6-A00

$16.29

HOSE A, WATER (UPPER)

19501-HP6-A00

$7.22

HOSE B, WATER (UPPER)

19502-HP6-A00

$14.99

HOSE, WATER (LOWER)

19503-HP6-A00

$21.46

HOSE, BYPASS

19504-HP6-A00

$16.07

PROTECTOR, WATER HOSE

19505-HP6-A00

Unavailable

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

Unavailable

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

SENSOR ASSY., WATER TEMPERATURE (KEIHIN)

37870-PNA-003

$82.59

SCREW, PAN (6X14)

90106-MCW-D00

$1.93

BOLT-WASHER (6X15)

90107-HN8-003

$1.75

BOLT, FLANGE (6MM)

90111-162-000

$2.62

BOLT, FLANGE (5X10)

90196-MBB-003

$2.42

NUT, CLIP (6MM)

90201-KPR-901

$1.70

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

O-RING (9.5X1.9)

91307-PNA-003

$2.00

BOLT-WASHER (6X16)

93404-06016-00

$1.48

CLIP, TUBE (B10)

95002-02100

$1.72

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

CLIP, THROTTLE WIRE

17938-SE0-941

$6.49

TUBE, RADIATOR RESERVE

19103-HP6-A10

$5.75
