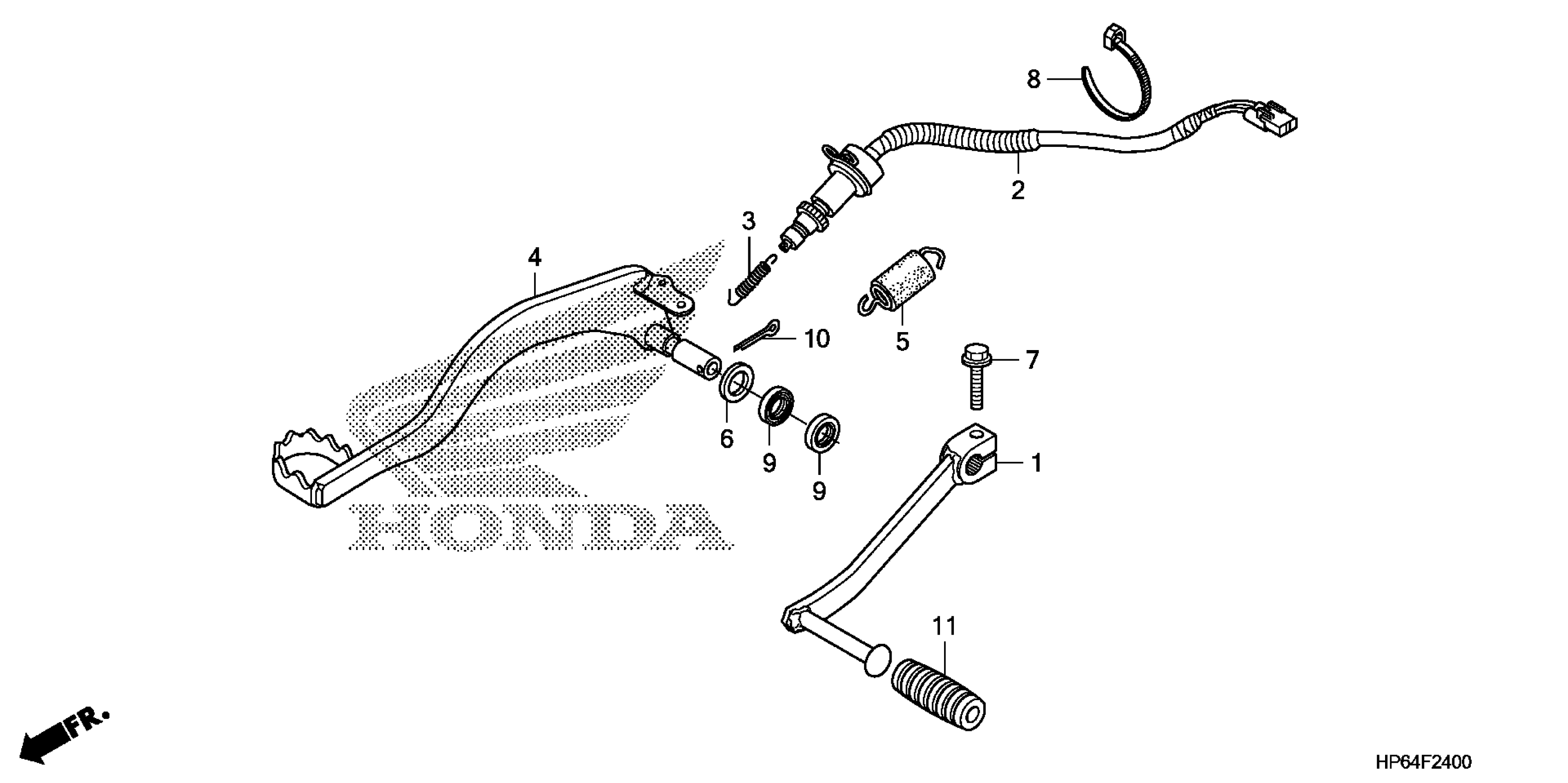

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 PEDAL Diagram

PEDAL, GEARSHIFT

24700-HP6-A00

Unavailable

SWITCH ASSY., RR. STOP

35350-HP6-A01

$43.83

SPRING, STOP SWITCH

35357-HP6-A00

$4.16

PEDAL, BRAKE

46510-HP6-A00

Unavailable

SPRING ASSY., BRAKE RETURN

46515-MAJ-G40

$8.46

BUSH, WASHER

53312-657-000

$6.24

BOLT, FLANGE (6X20)

90118-968-000

$3.93

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.54

PIN, COTTER (2.5MM)

94201-25300

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14
