Description

Price

1

HOSE A, OIL

15510-HP6-A00

$161.10

2

HOSE B, OIL

15520-HP6-A00

$197.57

3

TUBE, OIL TANK BREATHER

15572-HP6-A00

$19.31

4

DIPSTICK, OIL

15651-HP6-A00

Unavailable

5

STAY, OIL TANK

15805-HP6-A00

$11.72

6

TANK, OIL

15810-HP6-A01

$278.03

7

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

8

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

8

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

9

WASHER, SEALING (10MM)

90441-425-000

$2.13

10

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

11

O-RING (13X3.0)

91302-MB6-830

$1.95

12

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

13

O-RING (9.6X2.6) (ARAI) This part replaces 91305-639-000.

91309-ML7-003

$2.22

13

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

14

CLAMP, TUBE (D12.5)

95002-41250-00

$1.49

15

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

16

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

18

BOLT, FLANGE (10X16)

95701-10016-00

$1.49

19

BOLT, SOCKET (6X18)

96600-06018-00

$1.49

19

BOLT, SOCKET (6X18) This part replaces 96700-06018-00.

96600-06018-00

$1.49

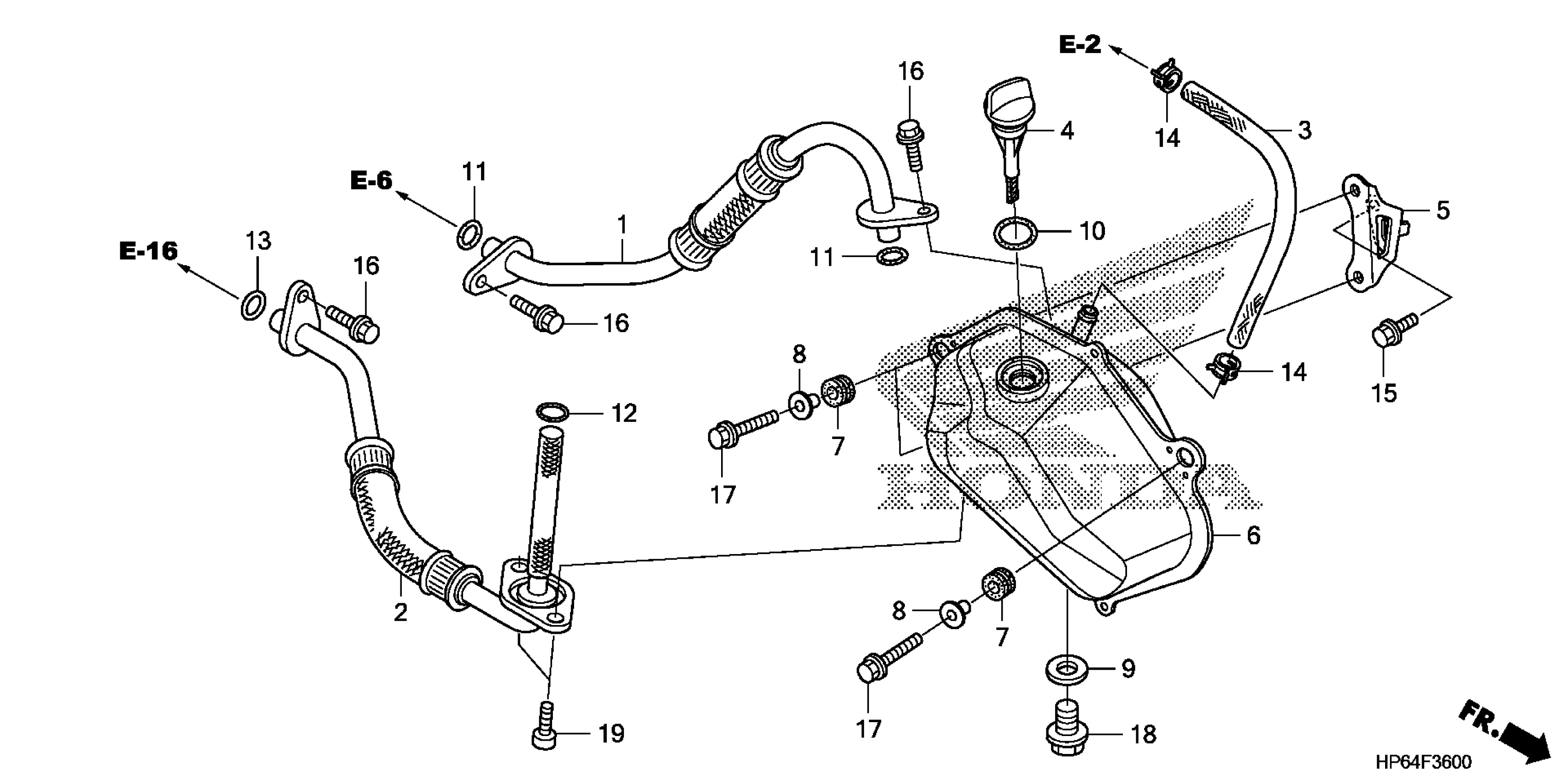

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 OIL TANK Diagram

HOSE A, OIL

HOSE B, OIL

TUBE, OIL TANK BREATHER

DIPSTICK, OIL

STAY, OIL TANK

TANK, OIL

RUBBER, RADIATOR MOUNTING

COLLAR, RADIATOR MOUNTING

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

WASHER, SEALING (10MM)

O-RING (18X3) (ARAI)

O-RING (13X3.0)

O-RING (15X2.5) (Honda Code 0386995)

O-RING (9.6X2.6) (ARAI) This part replaces 91305-639-000.

O-RING (9.6X2.6) (ARAI)

CLAMP, TUBE (D12.5)

BOLT, FLANGE (6X14) (Honda Code 2410884)

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

BOLT, FLANGE (6X25)

BOLT, FLANGE (10X16)

BOLT, SOCKET (6X18)

BOLT, SOCKET (6X18) This part replaces 96700-06018-00.
