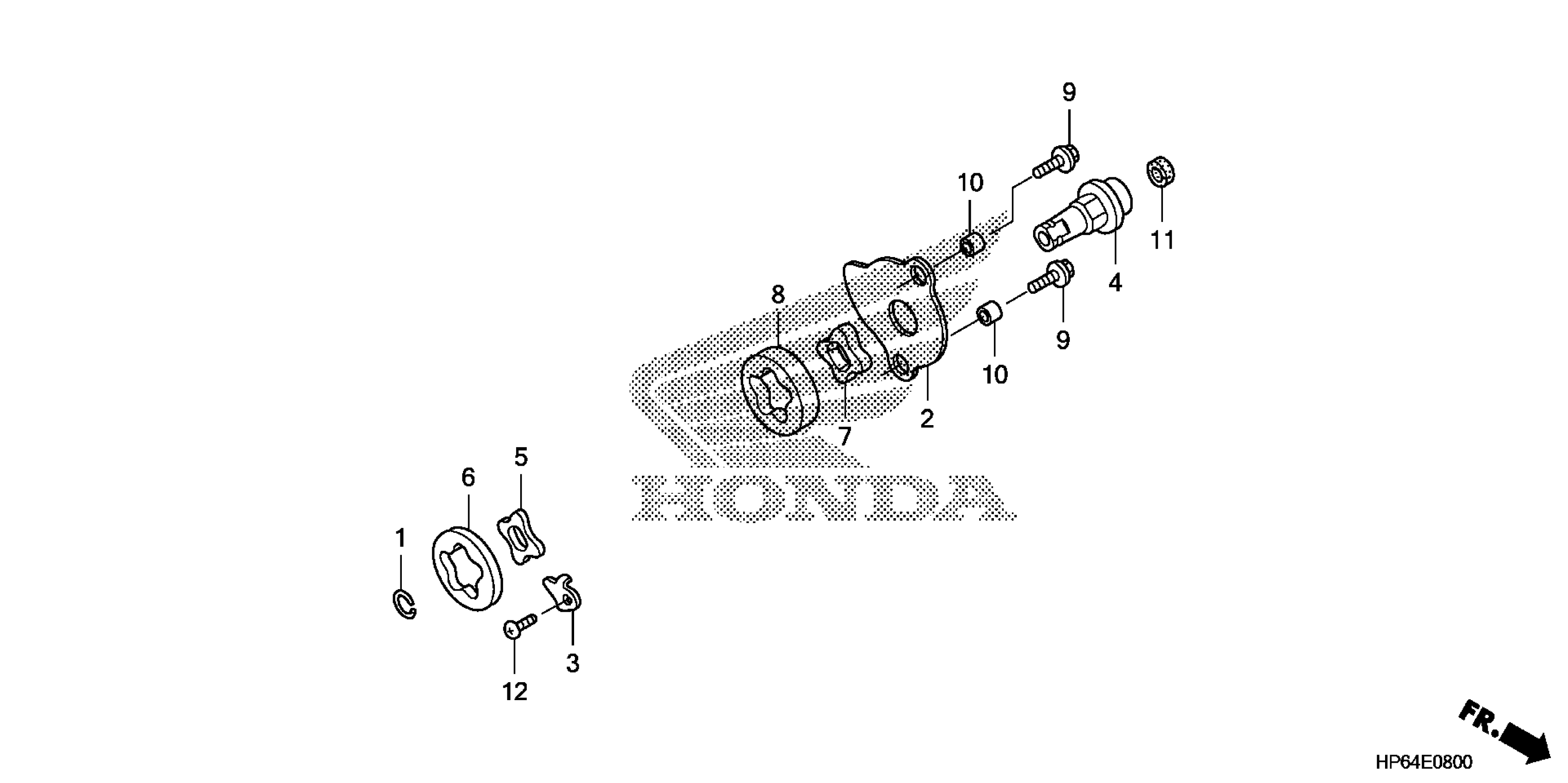

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 OIL PUMP Diagram

CLIP, VALVE GUIDE

12211-250-310

$4.39

PLATE, OIL PUMP

15102-HP6-A00

$19.72

PLATE A, OIL PUMP

15103-MBN-670

$1.52

SHAFT, OIL PUMP

15111-HP6-A00

$51.44

ROTOR A, OIL PUMP (INNER)

15115-HP6-A01

$16.28

ROTOR A, OIL PUMP (OUTER)

15116-HP6-A01

$20.10

ROTOR B, OIL PUMP (INNER)

15121-HP6-A01

$20.90

ROTOR, OIL PUMP (OUTER)

15133-HP6-A01

$27.54

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

OIL SEAL (6X11X4) (ARAI)

91231-891-003

$2.33

SCREW, PAN (4X8) SCREW, PAN (4X12)

93500-04008-0A

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49
