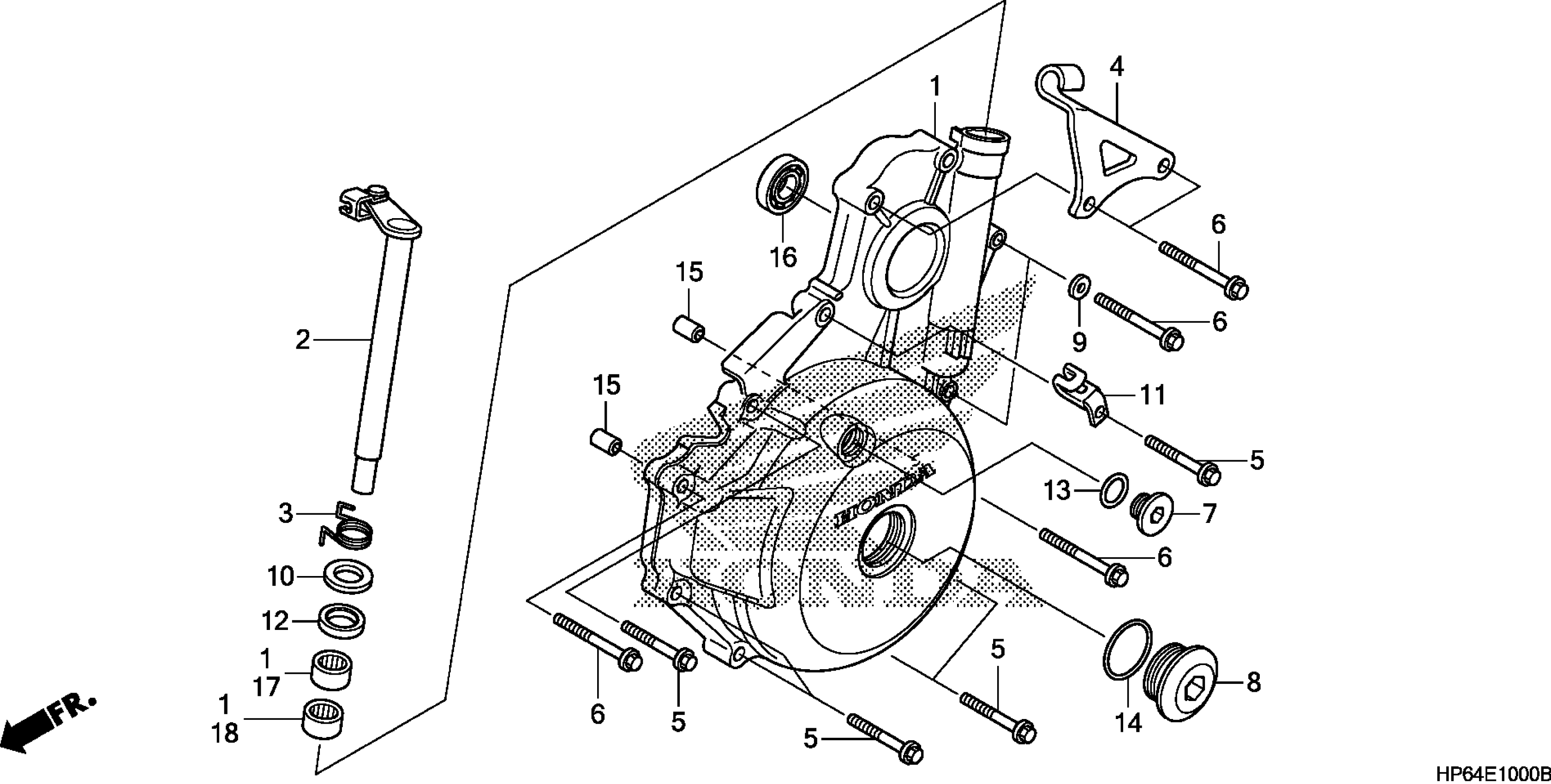

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11340-HP6-A00

$162.07

LIFTER, CLUTCH

22810-HP6-A00

Unavailable

SPRING, CLUTCH LEVER

22815-HP6-A00

Unavailable

RECEIVER, CLUTCH CABLE

22821-HP6-A00

$7.84

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-KT7-000

$19.74

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, BRAKE ARM

90525-GC4-700

$2.34

CLIP (4X50)

90601-KJ9-000

$3.08

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-427-003.

91205-KF0-003

$3.47

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

BEARING, NEEDLE (12X18X12)

91001-GG2-003

$18.97

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68
