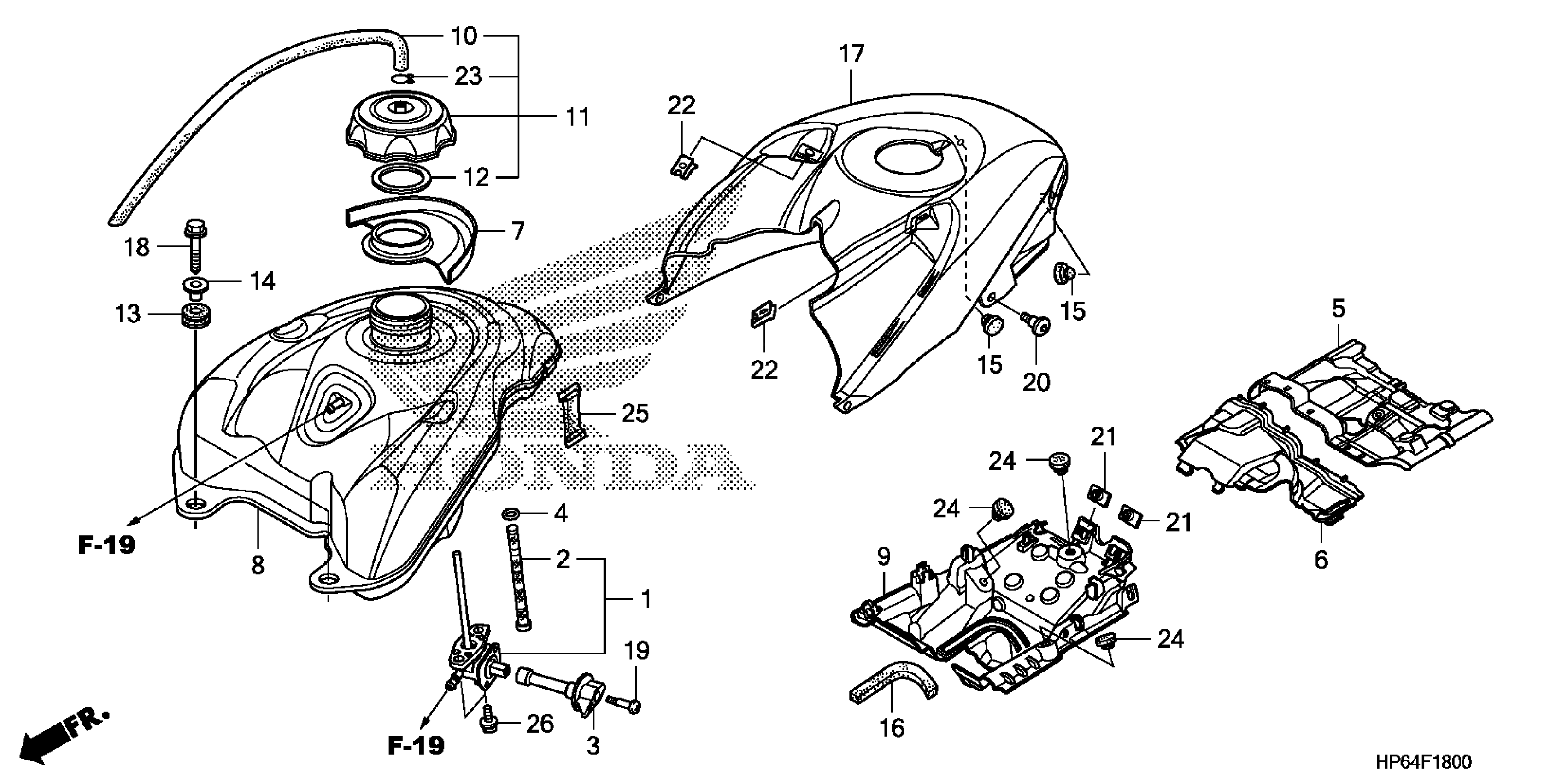

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-HP6-A01

$84.36

2

SCREEN SET, FUEL STRAINER

16952-HP6-A01

$24.36

3

LEVER, PETCOCK

16963-HP6-A00

$18.21

4

O-RING (11.8X3.55)

16997-467-000

$2.01

5

COVER, BATTERY

17260-HP6-A00

Unavailable

6

COVER, THROTTLE BODY

17261-HP6-A00

Unavailable

7

TRAY, FUEL TANK

17507-HP6-A00

Unavailable

8

TANK, FUEL

17510-HP6-A00

$378.30

9

PROTECTOR, TANK HEAT (LOWER)

17515-HP6-A00

Unavailable

10

TUBE, FUEL CAP BREATHER

17521-HN1-000

$6.48

11

CAP ASSY., FUEL TANK

17620-HN1-000

$29.32

12

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

13

RUBBER, MUFFLER

18334-KA3-830

$3.62

14

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

14

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

15

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

16

SEAL, FUEL TANK

83155-HP6-A00

$6.22

17

COVER, FUEL TANK *NHA79MR* (CHAOS BLACK METALLIC-R)

83700-HP6-A00ZA

$97.07

17

COVER, FUEL TANK *NHA98MR* (DEVIL SILVER METALLIC-R)

83700-HP6-A00ZB

Unavailable

18

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.09

19

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.33

20

SCREW, PAN (6X14)

90138-MCA-000

$1.80

21

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

22

NUT, SPRING (6MM)

90320-747-000

$2.13

23

CLIP, TUBE (C9)

95002-50000

$1.14

24

RUBBER C, STAND STOPPER

95011-63000

$3.64

25

BAND A, BATTERY

95012-11001

$2.77

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
