Description

Price

2

RUBBER, FUEL JOINT

16719-HN8-A61

$2.33

3

COVER, FUEL PUMP

16720-HP6-A00

Unavailable

4

PROTECTOR, FUEL PUMP

16730-HP6-A00

$10.31

5

TUBE, FUEL

16955-HP6-A00

$23.56

6

HOSE, FUEL FEED

16960-HP6-A01

$147.28

7

CLAMP, FUEL HOSE

17568-HP5-600

$1.49

8

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.93

9

TUBE, VAPOR

17683-HP6-A00

$26.67

10

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

11

RUBBER, MUFFLER

18334-KA3-830

$3.89

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

13

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

13

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

14

BOLT, FLANGE (5X10)

90002-892-000

$1.49

15

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

16

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

17

CLAMP, TUBE (D13)

95002-41300-08

$2.92

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

20

WASHER, CONICAL SPRING

90501-HN8-A60

$1.49

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

23

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HN8-305

$43.16

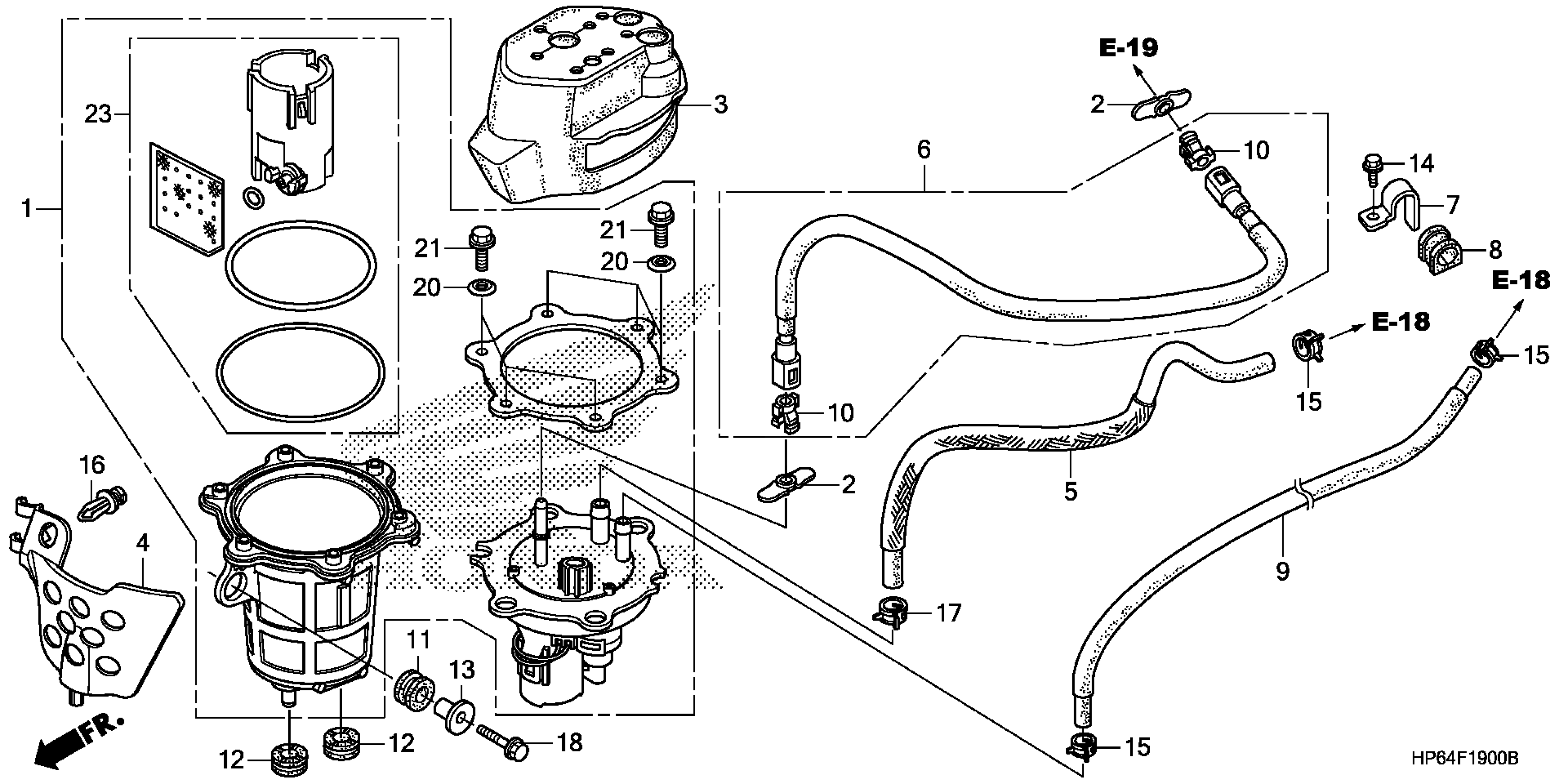

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FUEL PUMP Diagram
