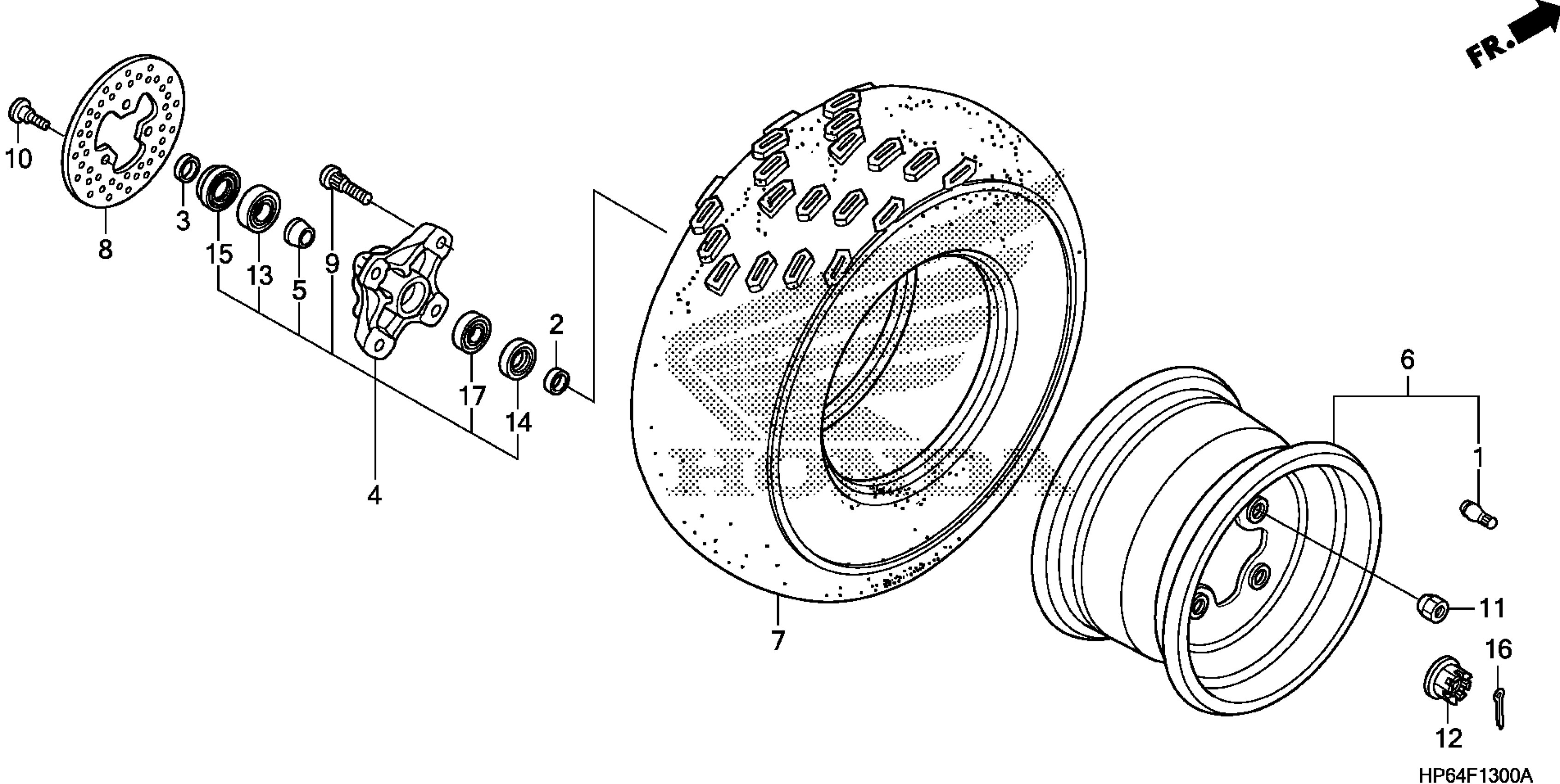

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

2

COLLAR, WHEEL SIDE

44311-HN6-000

$7.37

3

COLLAR, FR. WHEEL DISTANCE

44313-HP6-A00

Unavailable

4

HUB SUB-ASSY., FR.

44615-HP6-A00

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-HP6-A00

$13.87

6

WHEEL SET, FR.

44650-HP6-A00

$356.51

7

TIRE, FR. (21X7R10) (DUNLOP)

44711-HP6-A01

$212.55

8

DISK, FR. BRAKE

45251-HN1-003

$90.55

9

BOLT, WHEEL (10X36)

90103-HA2-003

$7.70

10

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.50

10

BOLT, FR. DISK (8X24) (SAGA)

90105-KR3-000

$5.64

10

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

10

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

11

NUT, WHEEL CLIP

90304-HA2-003

$5.23

12

NUT, AXLE (14MM)

90309-HC4-000

$13.83

13

BEARING, RADIAL BALL (60/22)

91074-KV3-721

$13.16

14

DUST SEAL (23X35X7)

91205-VM6-003

$8.61

15

DUST SEAL (30X44X6) (ARAI)

91251-HP6-A01

$5.42

16

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

16

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

16

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

16

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

17

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$8.32
