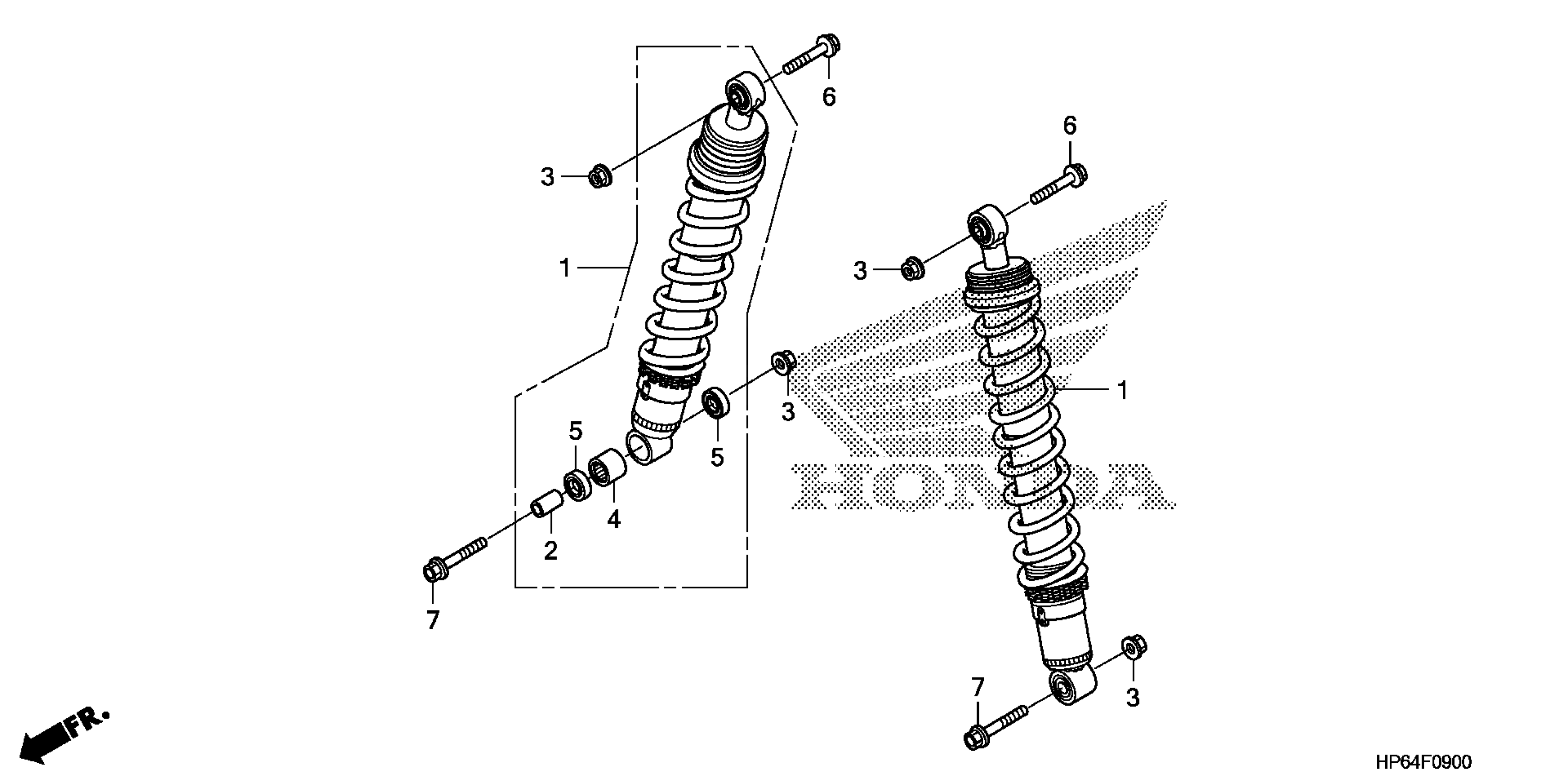

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FRONT CUSHION Diagram

#

Description

Price

1

CUSHION ASSY., FR. NH35M (CLOUD SILVER METALLIC)

51400-HP6-A01ZA

$456.82

1

CUSHION ASSY., FR. R134 (FIGHTING RED)

51400-HP6-A01ZB

$437.15

2

COLLAR C, CUSHION ARM

52465-MY1-000

$5.64

3

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

4

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$18.07

5

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

6

BOLT, FLANGE (10X40)

96400-10040-00

$2.22

7

BOLT, FLANGE (10X50)

96400-10050-00

$1.93
