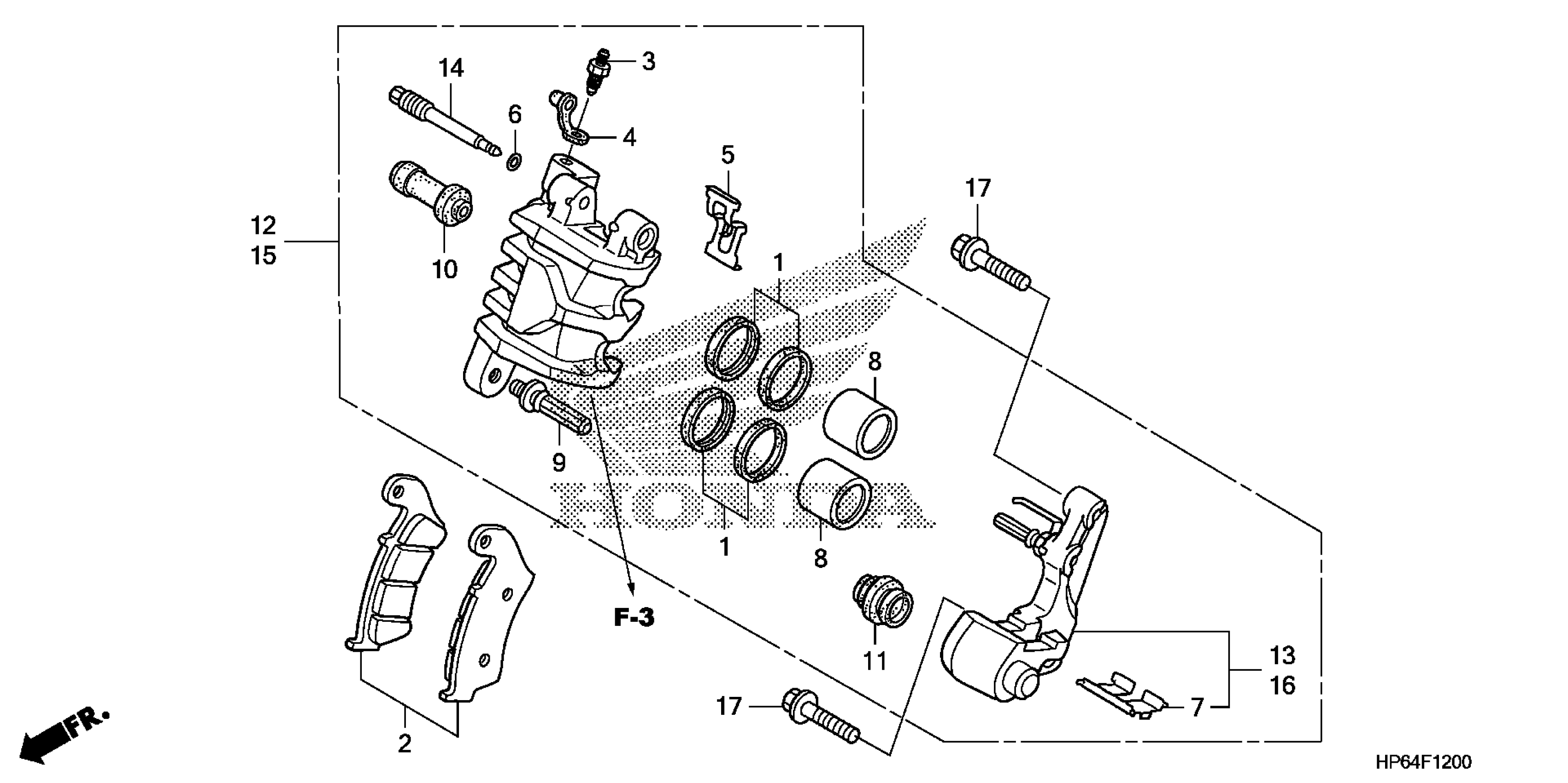

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

PAD SET, FR.

06455-HP1-016

$42.40

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

CAP, BLEEDER

43353-461-771

Unavailable

SPRING, PAD

45108-MY1-006

$9.86

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-HA5-671

$6.01

PISTON A (25X27)

45117-MAJ-G41

$25.95

BOLT A, BOLT

45131-HA5-672

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-HP1-006

$211.49

BRACKET SUB-ASSY., L. FR. CALIPER

45190-HP1-006

$44.25

PIN, HANGER

45215-HP1-006

$5.06

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-HP1-006

$218.03

BRACKET SUB-ASSY., R. FR. CALIPER

45290-HP1-006

$51.87

BOLT, FLANGE (8X28)

90102-KV3-700

$3.74
