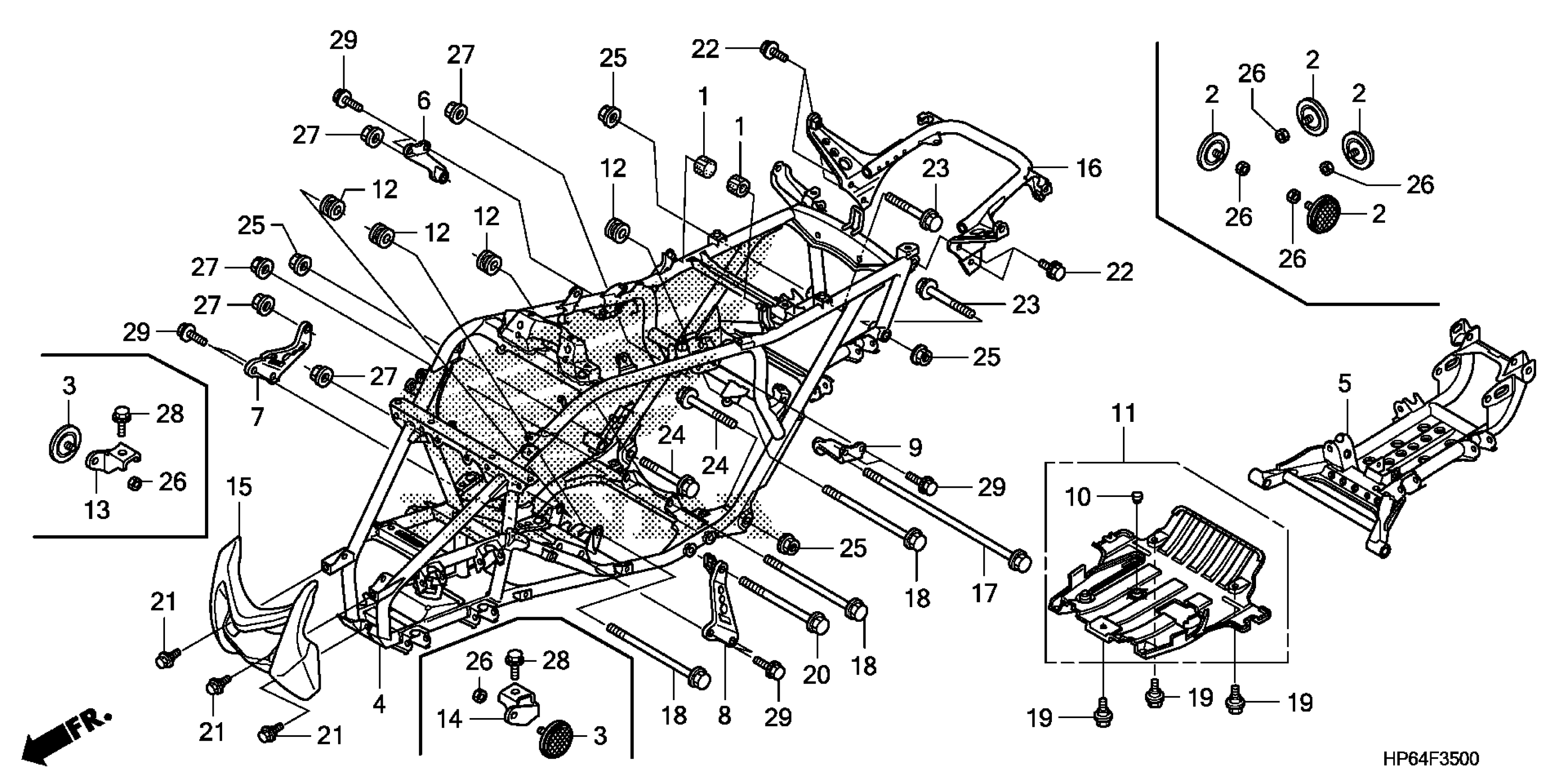

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 FRAME Diagram

#

Description
Price

1

CUSHION, FR. FUEL TANK

17611-HA5-000

$4.96

4

FRAME *NHA86M* (MAT BALLISTIC BLACK) | Use up to Frame SN 9K100017.

50100-HP6-A00ZA

$2,609.37

4

FRAME *NHA86M* (MAT BALLISTIC BLACK) | Use from Frame SN 9K100018.

50100-HP6-A01ZA

$3,087.84

5

FRAME, RR. *NHA86M* (MAT BALLISTIC BLACK)

50200-HP6-A00ZA

$361.51

6

PLATE, R. HEAD HANGER

50351-HP6-A10

Unavailable

7

PLATE, R. FR. ENGINE HANGER

50352-HP6-A10

$24.34

8

PLATE, L. FR. ENGINE HANGER

50353-HP6-A10

$29.12

9

PLATE, L. HEAD HANGER

50354-HP6-A10

Unavailable

10

RUBBER B, STOPPER

50354-428-000

$2.66

11

GUARD, ENGINE

50360-HP6-A00

Unavailable

12

COLLAR, FR. ENGINE HANGER

50532-HP6-A00

$6.21

15

PIPE, FR. CARRY *NH1* (BLACK)

81150-HP6-A00ZA

$96.16

16

PIPE, RR. CARRIER *NHA86M* (MAT BALLISTIC BLACK) | Use up to Frame SN 9K100194. This part replaces 81200-HP6-A00ZA.

81200-HP6-A01ZA

$84.56

16

PIPE, RR. CARRIER *NHA86M* (MAT BALLISTIC BLACK)

81200-HP6-A01ZA

$84.56

17

BOLT, FLANGE (10X213)

90102-HP6-A00

$5.87

18

BOLT, FLANGE (10X116)

90109-HP6-A00

$5.49

19

BOLT, FLANGE (6MM)

90111-162-000

$2.66

20

BOLT, FLANGE (10X93)

90112-HP6-A00

$4.75

21

BOLT, FLANGE (8X19)

90119-HP6-A00

$2.69

22

BOLT, FLANGE (8X18)

90123-KZ4-J40

$1.82

23

BOLT, FLANGE (12X58)

90155-HP6-A00

$6.94

24

BOLT, FLANGE (12X66)

90156-HC0-000

$13.51

25

NUT, SELF-LOCK (12MM)

90305-HP6-A00

$2.44

27

NUT, FLANGE (10MM)

94050-10000

$1.66

29

BOLT, FLANGE (8X18)

96300-08018-00

$1.66
