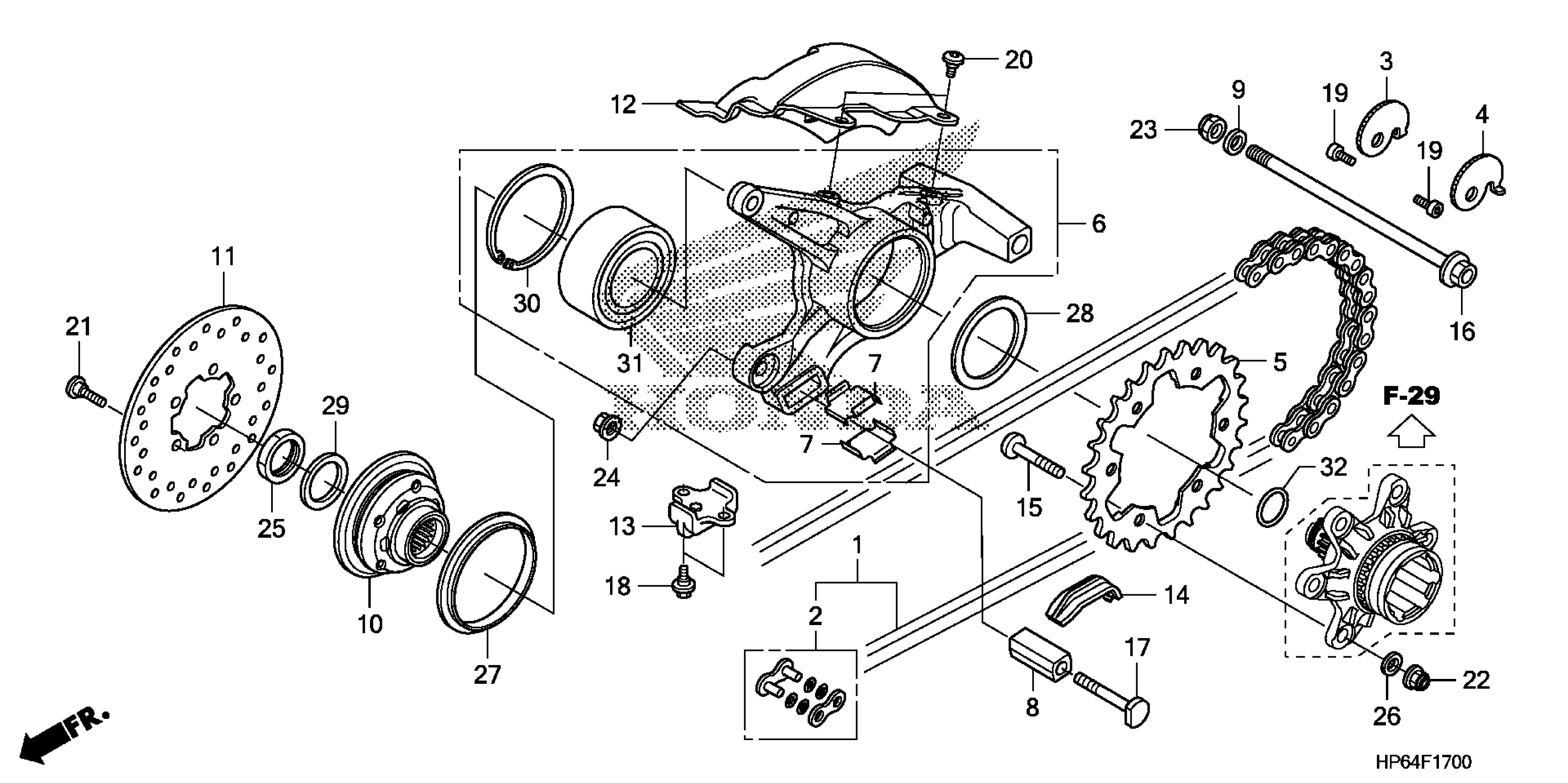

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 DRIVE CHAIN Diagram

#

Description
Price

1

CHAIN, DRIVE (RK520KZO-80L) (RK EXCEL) (STANDARD LINK 70L) This part replaces 40540-HP6-A01.

40540-HP6-A02

$156.70

1

CHAIN, DRIVE (RK520KZO-80L) (RK EXCEL) (STANDARD LINK 70L)

40540-HP6-A02

$156.70

2

MASTER LINK (DAIDO)

40531-HP6-A01

Unavailable

2

MASTER LINK (RK EXCEL)

40535-HP6-A02

Unavailable

3

ADJUSTER, R. CHAIN

40544-HP6-A00

$14.97

4

ADJUSTER, L. CHAIN

40545-HP6-A00

Unavailable

5

SPROCKET, FINAL DRIVEN (37T)

41201-HP6-A01

$78.20

6

CASE ASSY., RR. FINAL

41300-HP6-A00

Unavailable

7

PLATE, FINAL COLLAR

41303-HP6-A00

$4.70

8

COLLAR, RR. FINAL

41363-HP6-A00

$14.55

9

COLLAR, RR. FINAL SIDE

41364-HP6-A00

Unavailable

10

FLANGE, BRAKE DISK

43120-HP6-A00

Unavailable

11

DISK, RR. BRAKE

43251-HP6-A01

$199.13

12

COVER, RR. DISK (UPPER)

43331-HP6-A00

Unavailable

13

SLIDER, CHAIN

50380-HP6-A00

$11.07

14

RUBBER, RR. FRAME

50381-HP6-A00

$7.00

15

BOLT, SPROCKET FIXING (10X34)

90101-HP6-A00

$2.88

16

BOLT, FLANGE (16X194)

90105-HP6-A00

$23.43

17

BOLT (10X61)

90106-HP6-A00

$8.62

18

BOLT, FLANGE (6MM)

90111-162-000

$2.62

19

BOLT, SOCKET (8X14)

90113-HP6-A00

$2.46

20

BOLT, SOCKET (6X15)

90114-HP0-A00

$1.93

21

BOLT, DISK (8X24)

90116-HP6-A00

$2.80

22

NUT, AXLE (10MM)

90304-GA6-003

$2.62

23

NUT, U (16MM)

90305-GW2-711

$14.71

24

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

25

NUT, LOCK (34MM)

90311-HE0-000

$36.55

26

WASHER (10MM)

90465-MM9-000

$3.30

27

WASHER, RR. FINAL (INNER)

90501-HP6-A00

$11.62

28

WASHER, DRIVESHAFT

90502-HP6-A00

$8.33

29

WASHER, RR. FINAL (OUTER)

90503-HP6-A00

$9.42

30

CIRCLIP (INNER) (97)

90652-HP6-A00

$10.87

31

BEARING, ANGULAR BALL (70X95X40) (NTN)

91052-HP6-A01

$98.65

32

O-RING (33.5X2.2) (ARAI)

91351-HP6-A01

$2.25
