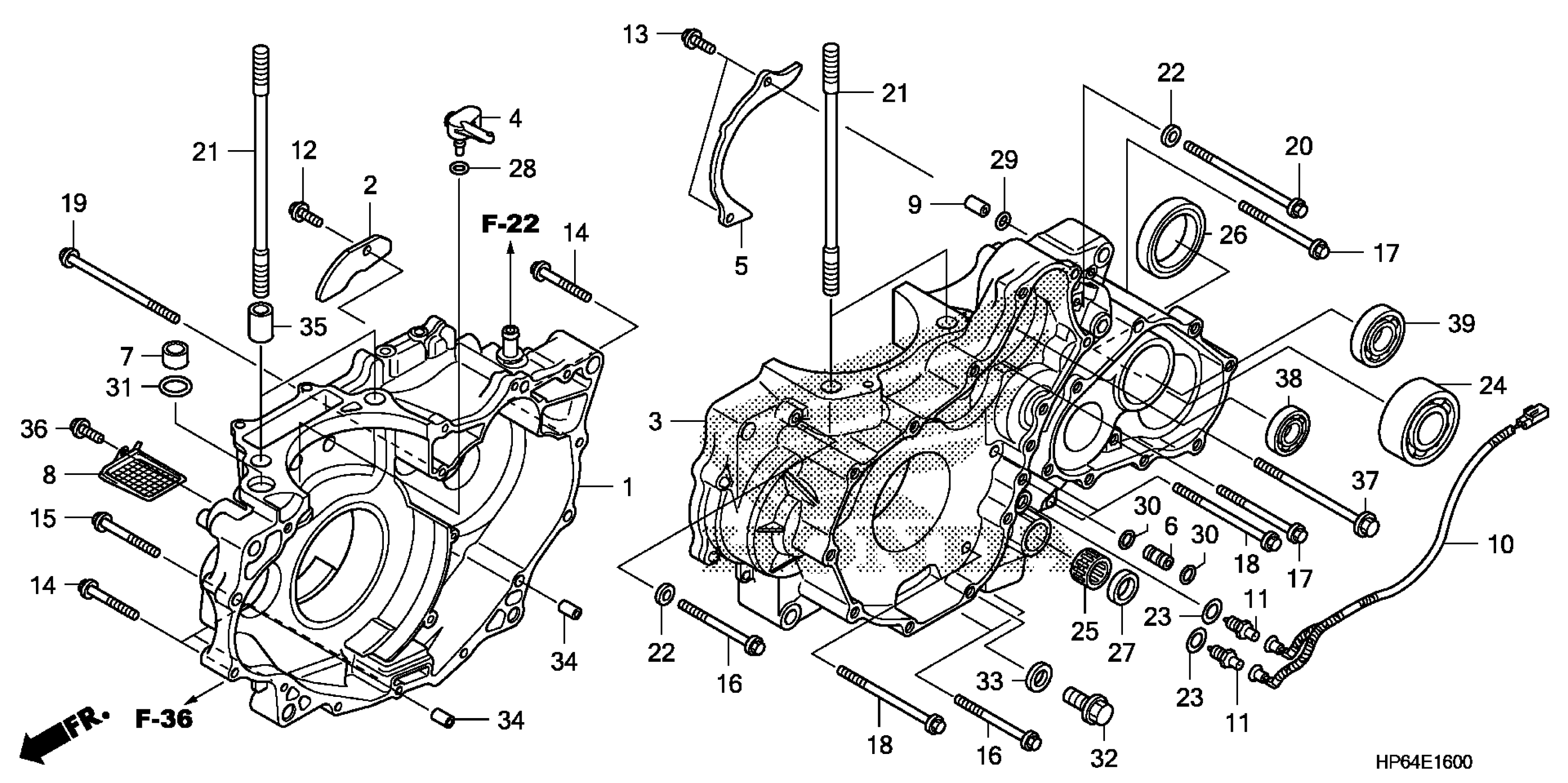

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-HP6-A00

Unavailable

2

PLATE, BREATHER

11160-HP6-A00

$1.75

3

CRANKCASE, L.

11200-HP6-A00

$622.59

4

JET, PISTON

11210-HP6-A00

$39.85

5

PLATE, DRIVE CHAIN GUIDE

11365-HP6-A00

$5.95

6

COLLAR, ALTERNATOR COVER

11642-MBT-F20

$7.39

7

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.97

8

SCREEN, OIL FILTER

15421-HP6-A01

Unavailable

9

ORIFICE (2.0MM)

15515-KT7-000

$4.31

10

SUB-HARNESS, ENGINE

32103-HP6-A00

Unavailable

11

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

12

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

13

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

14

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

15

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

16

BOLT, FLANGE (6X55) (NSHF)

90004-GHB-740

$5.36

17

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

18

BOLT, FLANGE (6X85) (NSHF)

90004-GHB-800

$2.72

19

BOLT, FLANGE (6X95) (NSHF)

90004-GHB-820

$3.20

20

BOLT, FLANGE (6X100) (NSHF)

90004-GHB-830

$2.56

21

BOLT, STUD (12X181)

90031-HP6-A00

$11.62

22

WASHER, SEALING (6MM)

90441-706-000

$1.49

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

24

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

25

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$38.54

26

OIL SEAL (31X42X7) (NOK)

91201-HP6-A01

$5.97

27

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

28

O-RING (4.8X1.3)

91301-HP6-A00

$1.84

29

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

30

O-RING (6X2) (NOK)

91307-ML7-004

$2.90

31

O-RING (17X3) (ARAI)

91312-KE8-003

$2.84

32

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

33

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

34

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

35

PIN A, DOWEL (14X20)

94301-14200

$2.28

36

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

37

BOLT, FLANGE (8X95)

95701-08095-00

$1.97

38

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

39

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25
