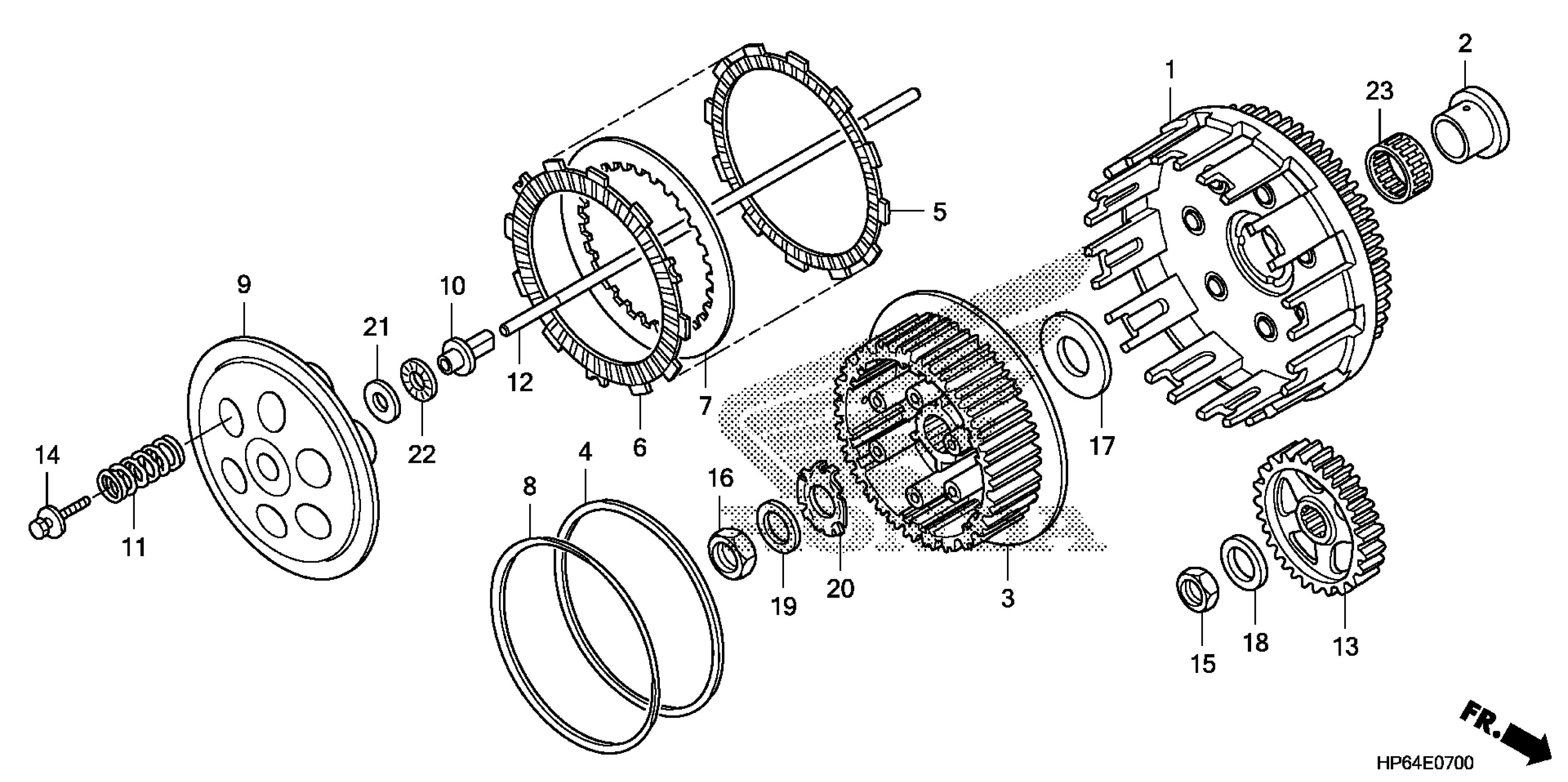

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-HP6-A00

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-HP6-A00

Unavailable

3

CENTER, CLUTCH

22120-HP6-A00

$108.54

4

SEAT, JUDDER SPRING

22125-HP6-A00

$4.76

5

DISK, CLUTCH FRICTION

22201-HP1-670

$16.14

6

DISK, CLUTCH FRICTION

22201-MEB-670

$17.07

7

PLATE, CLUTCH

22321-GHB-811

$12.02

8

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

9

PLATE, CLUTCH PRESSURE

22351-HP6-A00

$61.95

10

PIECE, CLUTCH LIFTER

22352-HP6-A00

$49.26

11

SPRING, CLUTCH (PINK)

22401-KZ3-690

$5.05

12

ROD, CLUTCH LIFTER

22850-HP6-A00

$27.16

13

GEAR, PRIMARY DRIVE (37T)

23121-HP6-A00

Unavailable

14

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

15

NUT (18MM)

90235-KA4-000

$11.09

16

NUT (18MM)

90235-MN1-670

$8.66

17

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

18

WASHER, LOCK

90432-428-000

$7.57

19

WASHER (18X27.5X2)

90451-MEN-730

$2.66

20

WASHER, LOCK (18MM)

90461-HP6-A00

$3.25

21

WASHER (12MM)

90608-072-000

$3.80

22

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

23

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.97
