Description

Price

1

HOUSING, AIR CLEANER

17210-HP6-A00

$33.07

2

BODY, AIR CLEANER

17211-HP6-A00

$62.60

3

LID, AIR CLEANER HOUSING

17217-HP6-A00

$37.84

4

SEAL, AIR CLEANER COVER

17219-HP6-A00

$9.87

5

STAY, AIR CLEANER ELEMENT

17221-HP6-A00

$4.53

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

7

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

8

TUBE, AIR CLEANER CONNECTING

17253-HP6-A00

Unavailable

9

ELEMENT, AIR CLEANER

17254-HP6-A00

$34.41

10

TUBE, BREATHER

17366-HP6-A00

Unavailable

11

TUBE, ENGINE BREATHER

17367-HP6-A00

$12.47

12

CLIP, BREATHER TUBE

17369-KB4-670

$5.24

13

RUBBER, MUFFLER

18334-KA3-830

$3.71

14

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

15

JOINT (TWO-WAY)

18631-MAH-710

$7.93

16

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

17

SENSOR ASSY., AIR TEMPERATURE

37880-MCA-003

$36.74

18

GROMMET, TA SENSOR

37881-MCA-003

$3.62

19

RUBBER, BATTERY BOX MOUNTING

50329-HA7-670

$2.80

20

GROMMET, RR. FENDER

80102-KFJ-900

$4.73

21

BAND, AIR CLEANER CONNECTING (116)

90651-HP1-600

$7.91

22

CLAMP, HARNESS

90652-HC4-003

$5.68

23

BAND, AIR CLEANER CONNECTING TUBE (68)

90668-HN2-830

$29.75

24

SCREW, PAN (5X12)

93500-05012-0H

$0.90

25

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

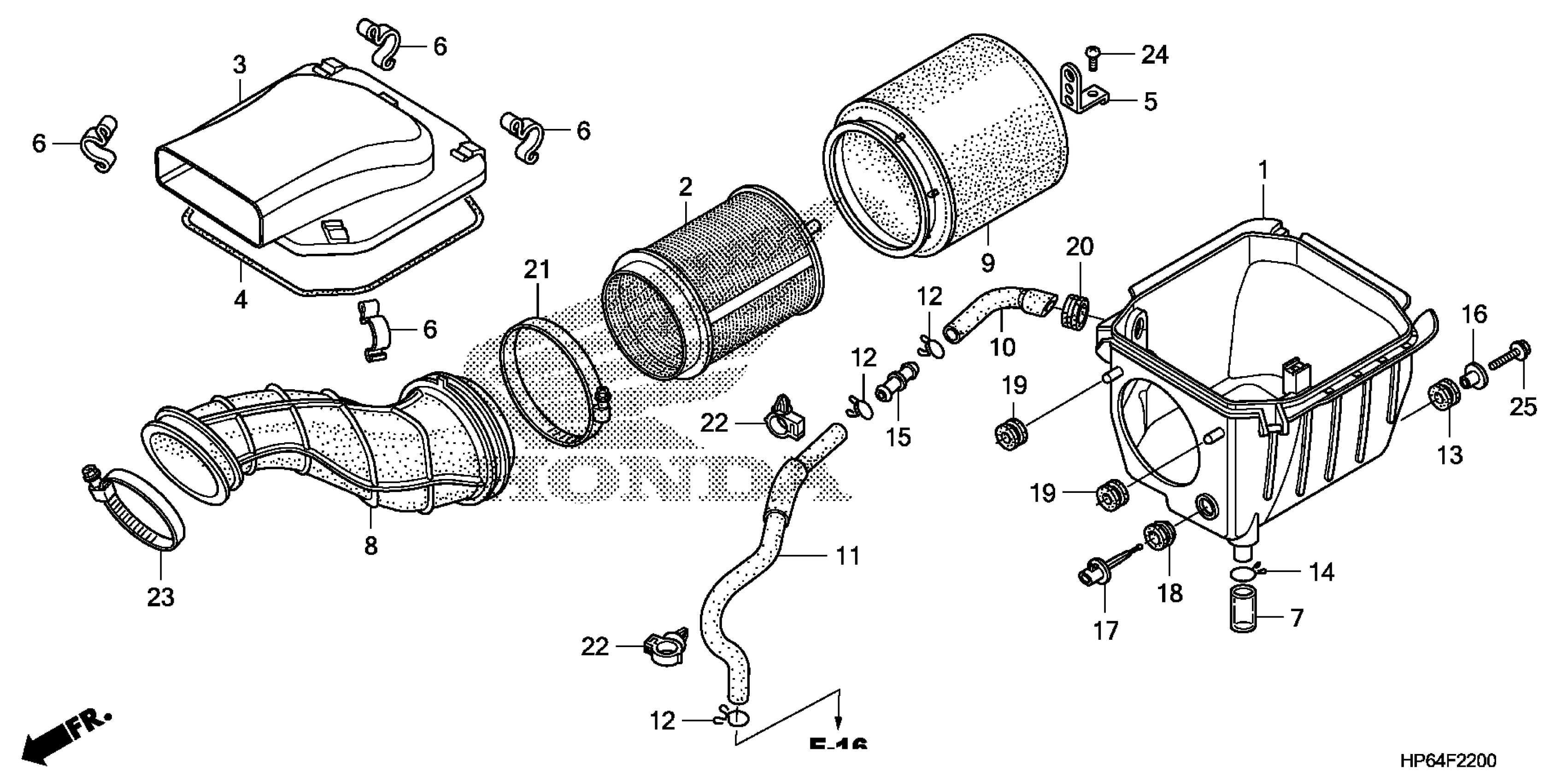

Honda TRX700XXA (08) TRX700XX, JPN, VIN# JH2TE360-8K000001 TO JH2TE360-8K099999 AIR CLEANER Diagram
