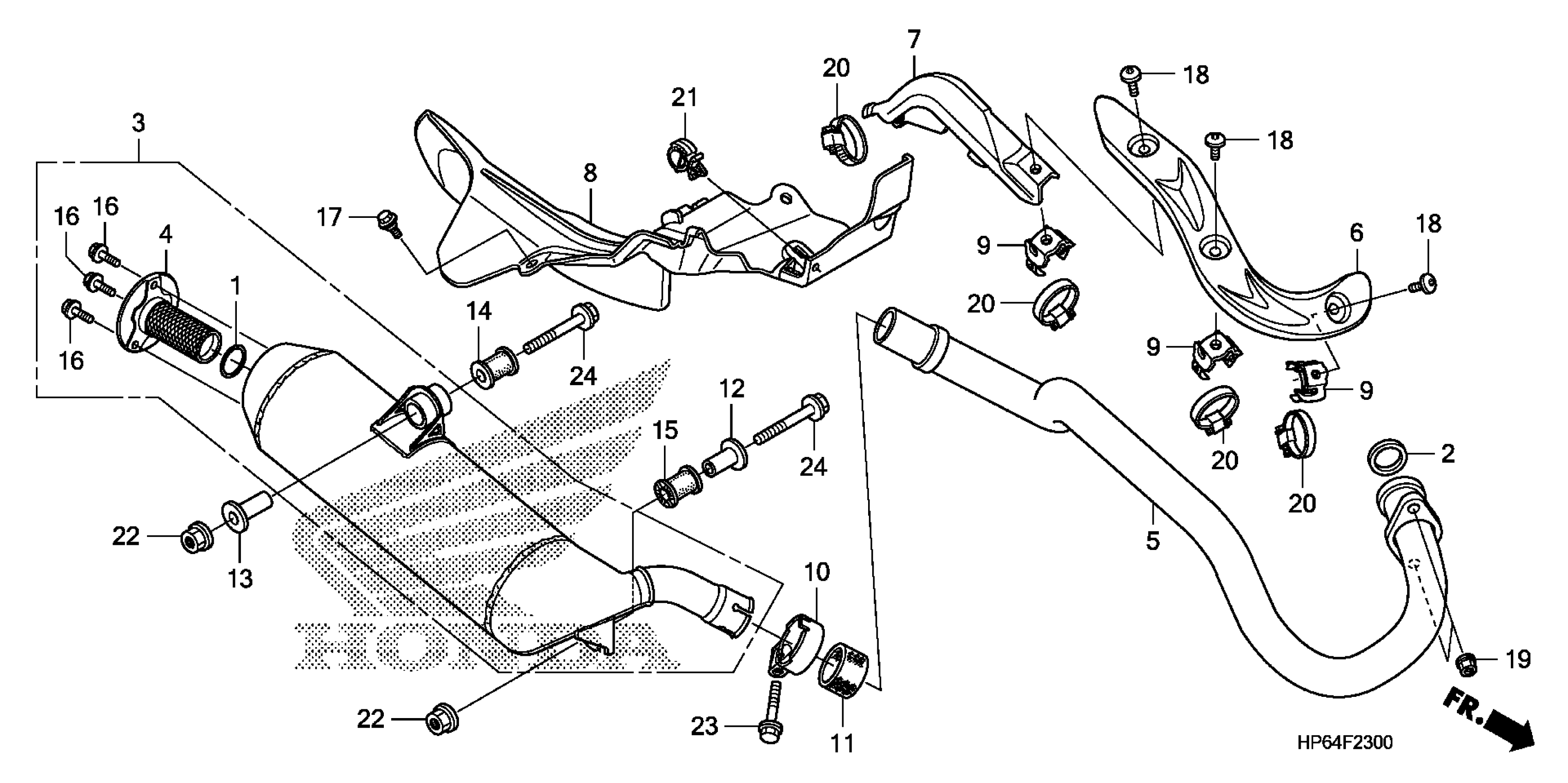

Honda TRX700XX3A (09) TRX700XX, JPN, VIN# JH2TE364-9K000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KAE-870

$4.37

2

GASKET, EX. PIPE

18291-MEB-670

$4.92

3

MUFFLER ASSY., EX.

18300-HP6-A00

Unavailable

4

ARRESTER, SPARK

18317-HP6-A00

$69.98

5

PIPE, EX.

18320-HP6-A00

Unavailable

6

PROTECTOR A, EX. PIPE

18325-HP6-A00

$34.61

7

PROTECTOR B, EX. PIPE

18326-HP6-A00

$42.08

8

PROTECTOR, RR. EX.

18327-HP6-A00

$34.92

9

STAY, EX. PIPE PROTECTOR

18328-HP6-A00

$25.66

10

BAND, R. MUFFLER

18373-KE8-000

$28.64

10

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$28.64

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$9.05

13

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

14

RUBBER, MUFFLER MOUNTING

50608-HP6-A00

$6.08

15

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

16

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

16

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

BOLT, SPECIAL (6MM)

90170-HP1-000

$2.11

19

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

20

CLAMP, HOSE

90653-GHB-660

$10.95

21

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

22

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

23

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

24

BOLT, FLANGE (8X50)

96300-08050-00

$2.25
