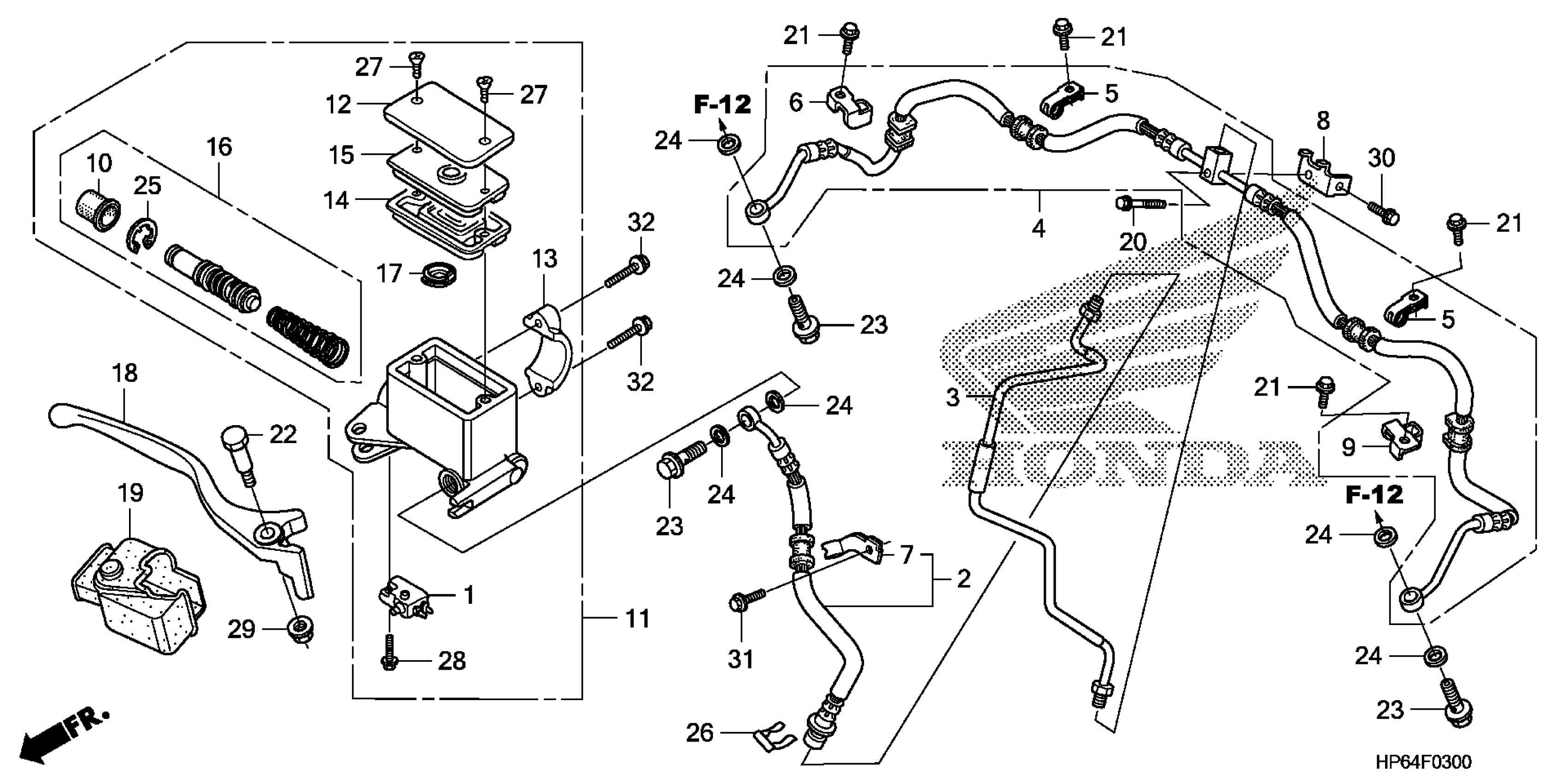

Honda TRX700XX3A (09) TRX700XX, JPN, VIN# JH2TE364-9K000001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

HOSE ASSY. A, FR. BRAKE

45126-HP6-A01

$39.54

PIPE, FR. BRAKE

45127-HP6-A00

$13.79

HOSE ASSY. B, FR. BRAKE

45128-HP6-A01

$130.08

CLAMP A, FR. BRAKE HOSE LOW

45461-HP6-A00

$5.69

CLAMP B, R. FR. BRAKE HOSE

45462-HP6-A00

$4.75

CLAMP, FR. BRAKE HOSE (UPPER)

45463-HP6-A00

$5.69

STAY, BRAKE JOINT

45464-HP6-A00

$4.39

CLAMP B, L. FR. BRAKE HOSE

45472-HP6-A00

$4.75

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-HP1-305.

45510-HP1-601

$210.64

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-HP1-601

$210.64

CAP, MASTER CYLINDER

45513-GW3-851

$21.52

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-HA8-771

$40.36

SEPARATOR

46666-HB9-006

$9.38

LEVER, R. HANDLEBAR

53175-HP6-A01

Unavailable

COVER, R. HANDLE LEVER

53176-HC0-671

$8.43

BOLT, FLANGE (6X25) (NSHF)

90005-GHB-670

$3.77

BOLT, FLANGE (6X10) (NSHF)

90110-HP1-000

$2.07

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

CLIP, BRAKE HOSE

90651-538-000

$6.77

SCREW, FLAT (4X12) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

93600-04012-1A

$1.49

SCREW-WASHER (4X14)

93893-04014-07

$1.49

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
