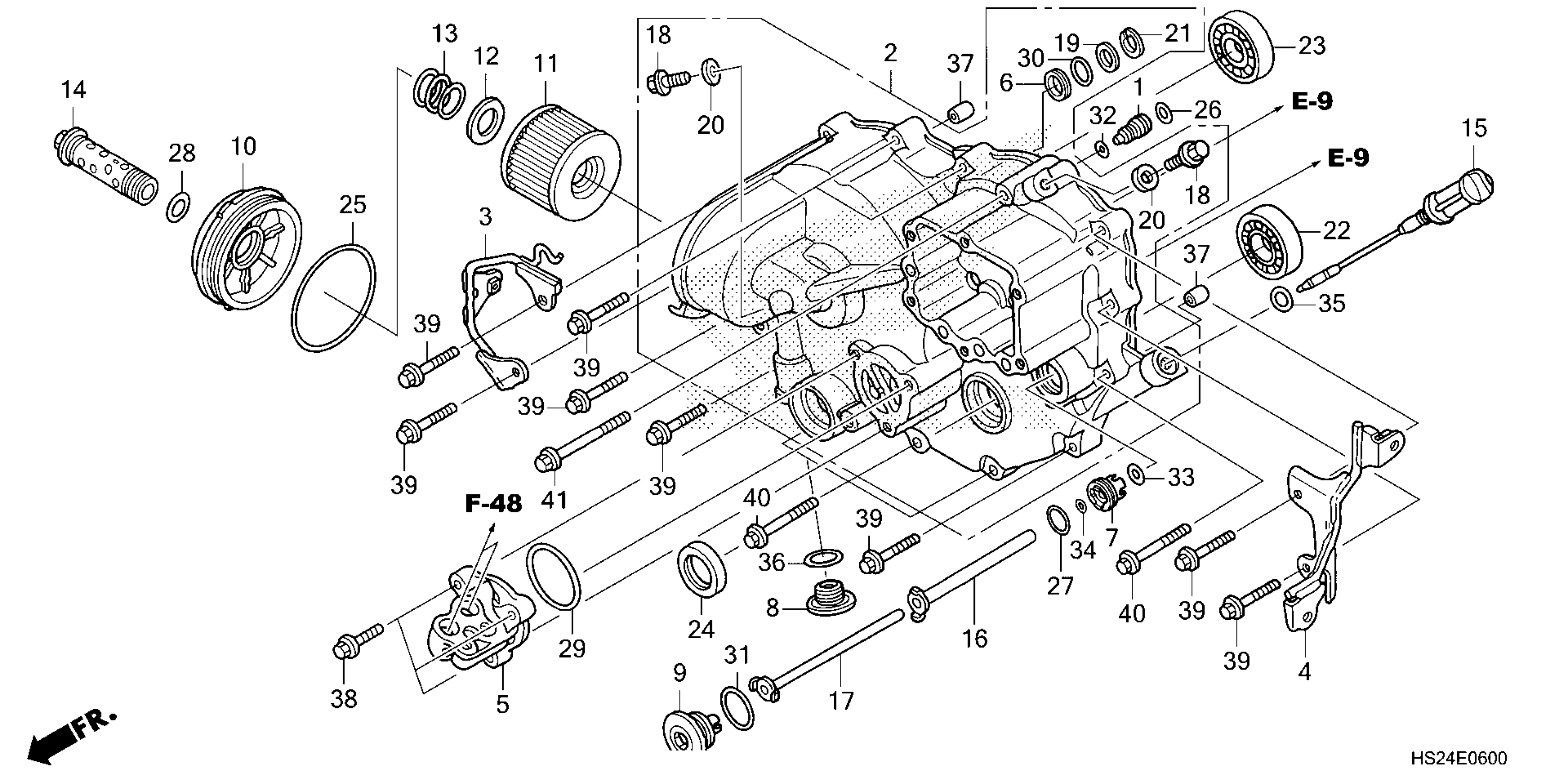

Honda TRX700FA5A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-R4900001 TO 1HFTE331-R4999999 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

ORIFICE, MAIN

11140-HN8-000

$11.28

2

COVER ASSY., FR.

11300-HN8-010

$463.28

3

STAY, R. FR. ENGINE SIDE COVER

11311-HN8-A60

$16.26

4

STAY, L. FR. ENGINE SIDE COVER

11321-HN8-000

$20.15

5

JOINT, OIL HOSE

11332-HN8-000

$29.61

6

COLLAR, FR. COVER

11333-HN8-000

$4.07

7

COLLAR, OIL FEED PIPE SETTING

11335-HN8-000

$4.49

8

BOLT, OIL PASSAGE

11336-HN8-000

$4.62

9

BOLT, OIL FEED PIPE SETTING

11337-HN8-000

$5.67

10

COVER, OIL FILTER

15411-HN8-010

$32.72

11

ELEMENT, OIL FILTER

15412-KEA-003

$9.63

12

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

13

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

14

BOLT, OIL FILTER CENTER

15420-HN2-000

$45.33

15

DIPSTICK, OIL

15650-HN8-000

$13.91

16

PIPE B, FEED

22715-HN8-000

$23.26

17

PIPE C, FEED

22725-HN8-000

$25.02

18

BOLT, SEALING (8MM) | Use from Engine SN 8302483.

90024-HL4-BA0

$1.49

18

BOLT, SEALING (8MM) | Use up to Engine SN 8302482.

90024-612-000

$4.76

19

WASHER, THRUST (22X15.5X0.5)

90409-HN8-000

$1.84

20

GASKET (8MM) | Use from Engine SN 8302483.

90471-HL4-BA0

$1.49

20

WASHER (8MM) | Use up to Engine SN 8302482.

90471-580-000

$2.92

21

CIRCLIP (INNER) (22MM)

90601-HN8-000

$1.49

22

BEARING, RADIAL BALL (6005) (NTN)

91012-HN2-004

$15.33

23

BEARING, RADIAL BALL SPECIAL (6303)

91017-HN8-003

$13.55

24

OIL SEAL (25X35X5)

91203-KCY-671

$7.13

25

O-RING (75X2.5)

91301-107-000

$4.87

26

O-RING (7X1.7)

91301-473-003

$2.72

27

O-RING (19.20X1.90) (NOK)

91301-P7X-003

$3.08

28

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

29

O-RING (43X2.5)

91302-HN8-000

$2.92

30

O-RING (17.8X1.9)

91303-HN8-003

$1.87

31

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

32

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

33

O-RING (8.5X1.9) (NOK) This part replaces 91314-PC9-003.

91314-PC9-004

$3.23

33

O-RING (8.5X1.9) (NOK)

91314-PC9-004

$3.23

34

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

35

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

36

O-RING (22.1X2)

91305-679-003

$4.67

36

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.67

37

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

38

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

39

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

40

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

41

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.51
