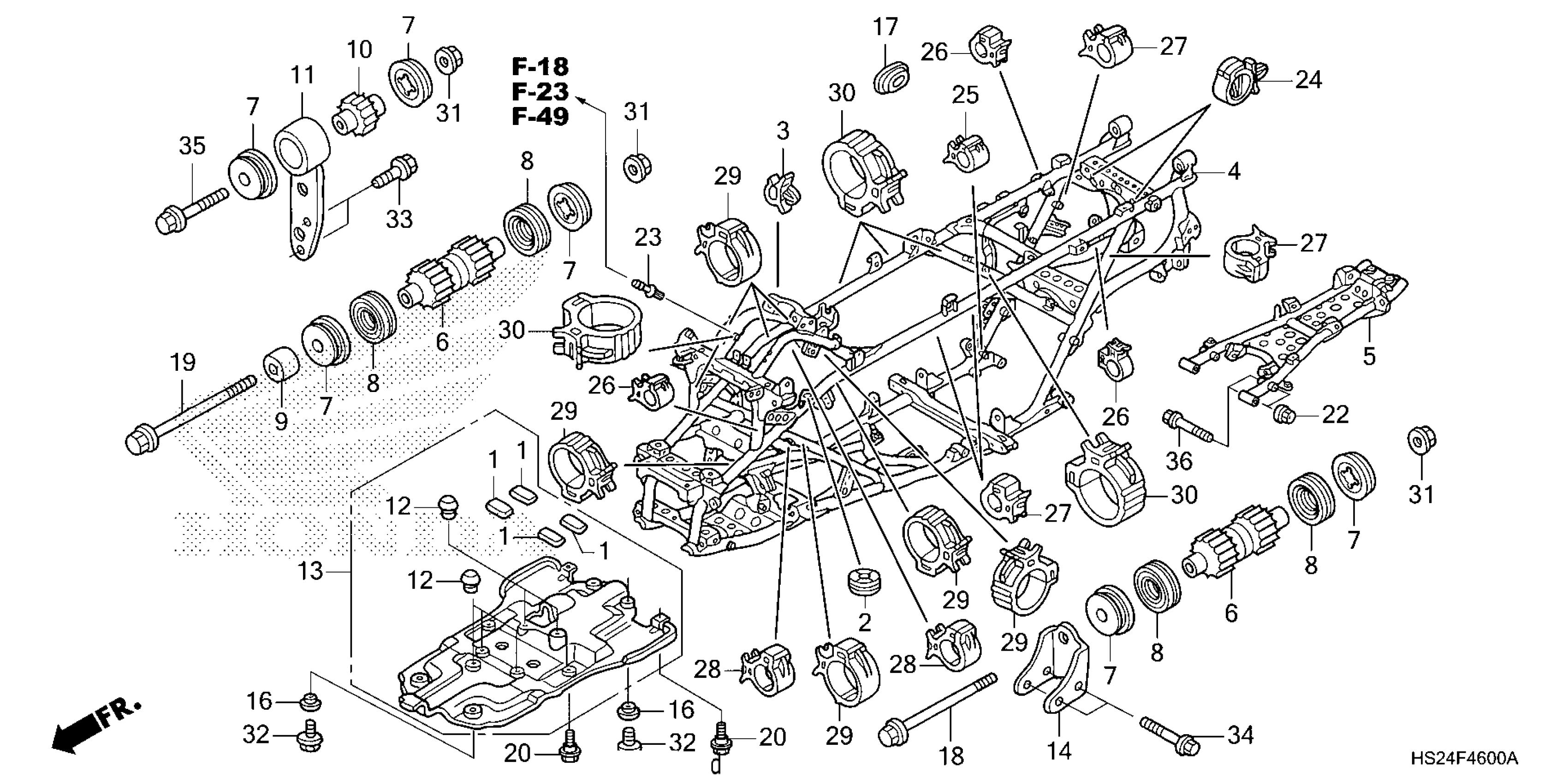

Honda TRX700FA5A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-R4900001 TO 1HFTE331-R4999999 FRAME Diagram

#

Description
Price

1

RUBBER, RADIATOR SHROUD

19036-GS2-600

$2.92

2

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

3

CLIP, WIRE HARNESS

32171-GJ1-003

$3.47

4

FRAME COMP

50100-HS2-A50

$4,908.46

5

FRAME, RR.

50200-HN8-000

$352.69

6

RUBBER, ENGINE MOUNTING (LOWER)

50301-HN8-003

$24.56

7

RUBBER C, MOUNTING

50302-HN8-003

$7.08

8

DUST SEAL, ENGINE MOUNTING

50303-HN8-000

$9.15

9

COLLAR, ENGINE HANGER

50304-HN8-000

$5.28

10

RUBBER, ENGINE HEAD MOUNTING

50305-HN8-003

$11.59

11

BRACKET, HEAD HANGER

50353-HN8-A60

$22.77

12

RUBBER B, STOPPER

50354-428-000

$2.75

13

GUARD ASSY., ENGINE

50360-HN8-000

$40.03

14

HANGER, ENGINE (LOWER)

50363-HN8-000

$8.93

16

COLLAR, FR. FENDER

80102-GK4-970

$2.97

17

GROMMET, SIDE COVER

83551-HM5-730

$1.49

18

BOLT, FLANGE (10X142)

90101-KZ4-J10

$10.59

19

BOLT, ENGINE HANGER

90103-GC2-920

$11.87

20

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

22

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

23

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

24

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

25

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

26

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

27

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

28

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

29

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

30

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

31

NUT, FLANGE (10MM)

94050-10000

$1.59

32

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

33

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

34

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

35

BOLT, FLANGE (10X65)

95701-10065-08

$3.05

36

BOLT, FLANGE (10X95)

95701-10095-00

$2.03
