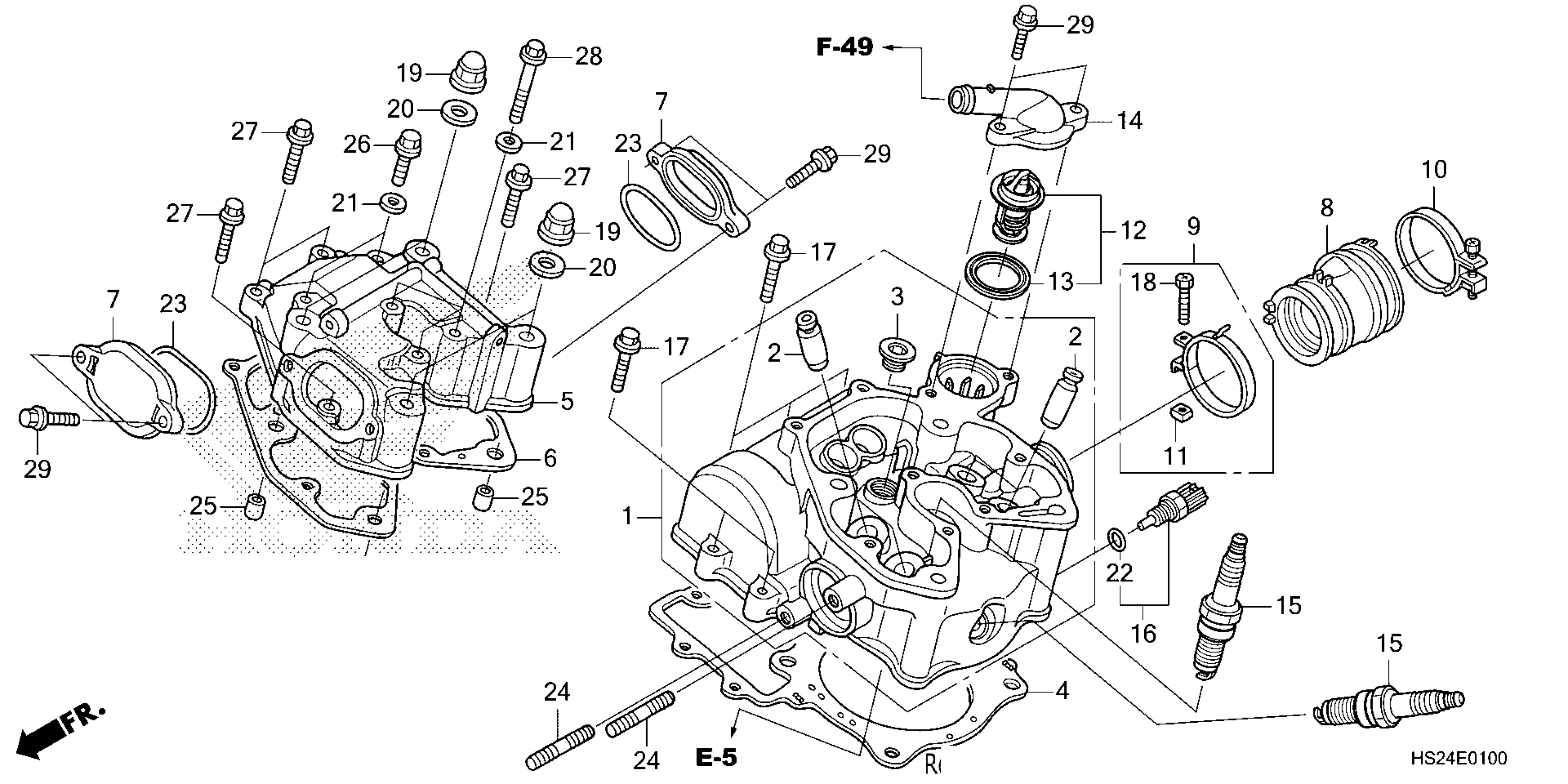

Honda TRX700FA5A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-R4900001 TO 1HFTE331-R4999999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-HN8-F40

$782.62

GUIDE, VALVE (OVER SIZE)

12204-HN2-305

$18.00

BOLT, SEALING (18MM) (Honda Code 2156917)

12206-ML8-300

$9.23

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$9.23

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.23

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$9.23

GASKET, CYLINDER HEAD

12251-HN8-A61

$44.19

COVER, CYLINDER HEAD

12310-HN8-000

$201.14

GASKET, CYLINDER HEAD COVER

12315-HN8-000

$15.54

COVER, TAPPET ADJUSTING HOLE

12351-HN2-010

$12.88

INSULATOR, THROTTLE BODY

16211-HN8-A60

$23.57

BAND, CARBURETOR INSULATOR

16219-HN8-000

$8.49

BAND, INSULATOR

16219-MBB-000

$10.91

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.08

THERMOSTAT SET

19300-HN8-305

$60.18

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

COVER, THERMOSTAT

19321-HN8-000

$22.12

SPARK PLUG (CPR6EB-9) (NGK)

31916-HN8-F41

$7.64

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$8.17

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.36

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.80

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.15

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.15

WASHER, PLAIN (10MM)

90401-437-000

$2.71

WASHER (6MM) | Use from Engine SN 8302483.

90441-K1B-H40

$1.26

WASHER, SEALING (6MM) | Use up to Engine SN 8302482.

90441-706-000

$1.12

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.96

O-RING (57X2.5)

91308-500-000

$6.71

BOLT, STUD (8X25)

92900-08025-0B

$2.79

PIN A, DOWEL (12X16)

94301-12160

Unavailable

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.86

BOLT, FLANGE (6X25)

95701-06025-00

$1.88

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.46

BOLT, FLANGE (6X20)

96001-06020-00

$1.20
