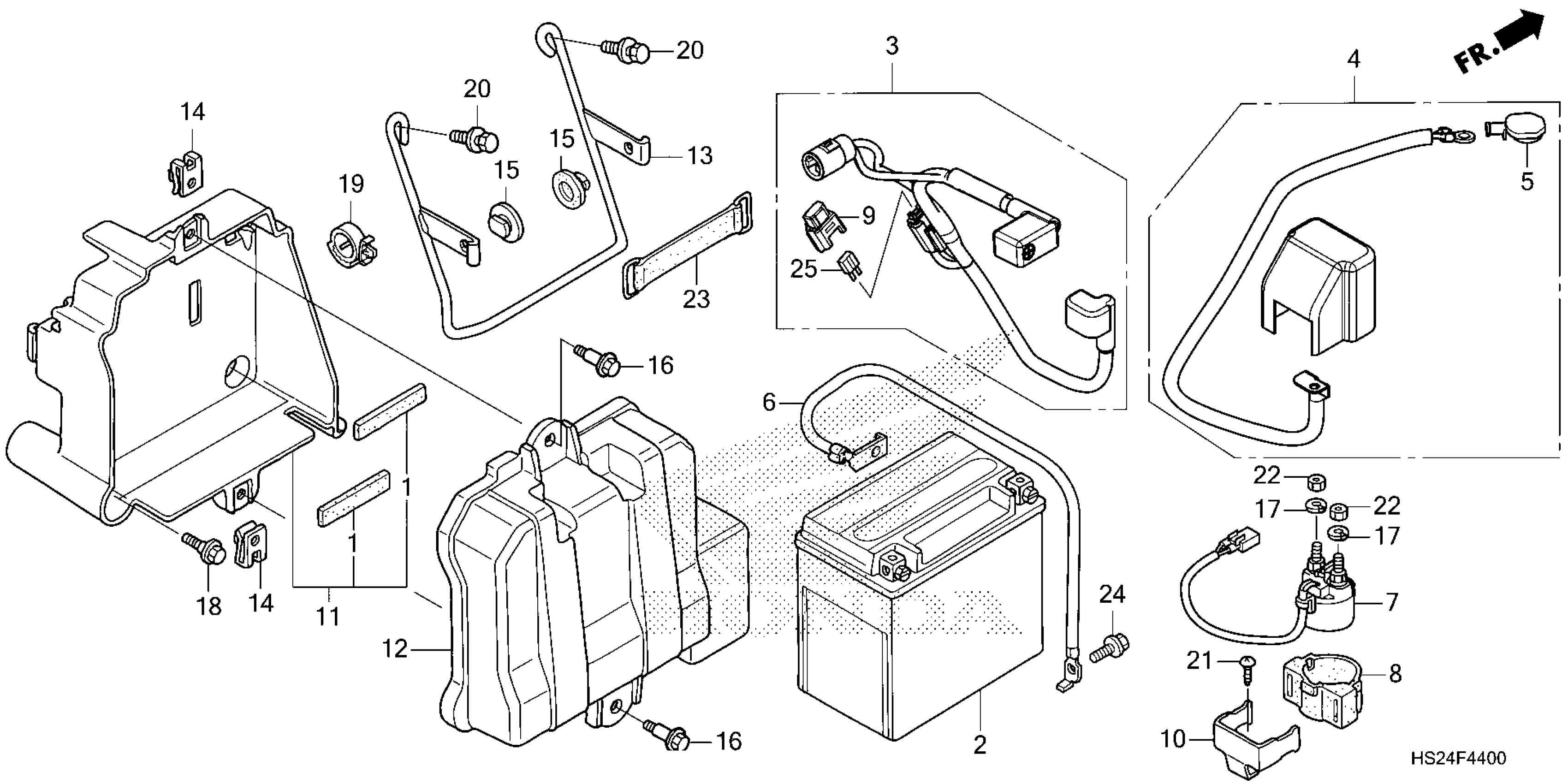

Honda TRX700FA5A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-R4900001 TO 1HFTE331-R4999999 BATTERY Diagram

RUBBER, TANK SPACER

17511-HM5-670

$11.56

BATTERY,YTX20L-BS This part replaces 31500-MCA-003.

31500-MCA-013AH

$141.79

BATTERY,YTX20L-BS This part replaces 31500-MCA-013.

31500-MCA-013AH

$141.79

CABLE, RELAY BATT

32401-HS2-A50

$28.38

CABLE, STARTER MOTOR

32405-HN8-010

$29.75

COVER, STARTER MOTOR TERMINAL

32411-MEW-920

$4.21

CABLE, BATTERY GROUND (N/A: USE CABLE SET 32010-HN8-000)

32601-HN8-650

$16.80

SWITCH ASSY., STARTER MAGNETIC

35850-HN8-003

$59.24

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

COVER, FUSE

38211-KRG-003

$2.67

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

BOX, BATTERY

50400-HN8-A60

$84.26

COVER, BATTERY

50403-HN8-000

$7.42

ROD, BATTERY BOX

50404-HN8-000

$35.25

NUT, CLIP (6MM) (NA USE ALT:64529-MN5-000)

64529-KCH-780

Unavailable

RUBBER, SEAT STOPPER

77103-GK4-000

$4.48

BOLT, FLANGE (6X20)

90020-438-000

$3.35

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

BOLT, FLANGE (6MM)

90104-KAB-000

$2.92

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

BOLT-WASHER (8X20)

93404-08020-07

$1.92

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND F, BATTERY (155MM)

95012-17001

$7.23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

FUSE, MINI (10A)

98200-41000

$1.49
