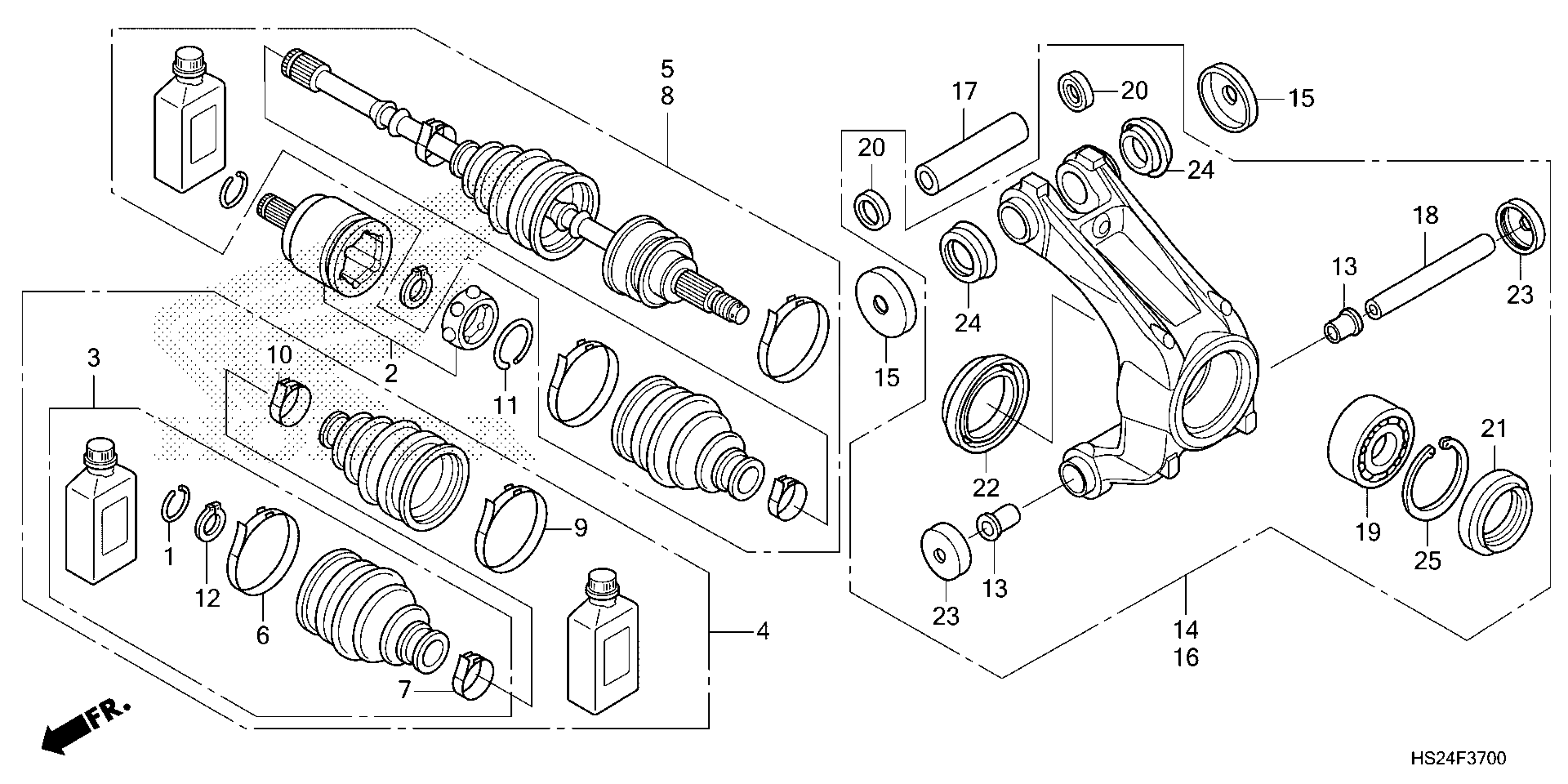

Honda TRX700FA53A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE330-RJ000001 TO 1HFTE330-RJ099999 REAR KNUCKLE@REAR DRIVESHAFT Diagram

#

Description

Price

1

RING, SNAP

42206-HN8-003

Unavailable

2

JOINT, INBOARD

42220-HN8-003

Unavailable

3

BOOT SET, INBOARD

42230-HN8-305

Unavailable

4

BOOT SET

42240-HN8-305

Unavailable

5

DRIVESHAFT SET, R. RR.

42250-HN8-003

Unavailable

6

BAND, INBOARD BOOT

42336-SN4-901

Unavailable

7

BAND, SHAFT BOOT (DOUBLE ROLLED BAND) This part replaces 42339-SJ6-003.

44329-SV4-305

Unavailable

7

BAND, SHAFT BOOT (DOUBLE ROLLED BAND)

44329-SV4-305

Unavailable

8

DRIVESHAFT SET, L. RR.

42350-HN8-003

Unavailable

9

BAND, JOINT BOOT (DOUBLE ROLLED BAND) This part replaces 44316-SJ7-003.

44327-SV4-305

Unavailable

9

BAND, JOINT BOOT (DOUBLE ROLLED BAND)

44327-SV4-305

Unavailable

10

BAND, SHAFT BOOT (R. SIDE)

44318-SJ7-003

Unavailable

11

RING, SNAP (L. SIDE)

44337-ST5-003

Unavailable

12

CIRCLIP (L. SIDE)

44338-ST5-003

Unavailable

13

BUSH, ARM (UPPER) (LOWER)

51108-HN2-000

Unavailable

14

KNUCKLE ASSY., R. RR.

52200-HN8-F40

Unavailable

15

CAP, PIVOT (12X36)

52207-HN8-000

Unavailable

16

KNUCKLE ASSY., L. RR.

52250-HN8-F40

Unavailable

17

COLLAR, RR. KNUCKLE

52263-HN8-000

Unavailable

18

COLLAR B, ARM (LOWER)

52464-HN8-000

Unavailable

19

BEARING, ANGULAR BALL (34X58X24)

91051-HN8-003

Unavailable

20

DUST SEAL (18X23X4) (ARAI)

91208-PG1-003

Unavailable

21

DUST SEAL (42X59X6)

91209-HN8-003

Unavailable

22

DUST SEAL (44X62X7)

91211-HN8-003

Unavailable

23

SEAL, PIVOT

91261-HN8-F41

Unavailable

24

DUST SEAL (28X36X7)

91262-HN8-003

Unavailable

25

CIRCLIP (INNER) (60MM)

94520-60000

Unavailable
