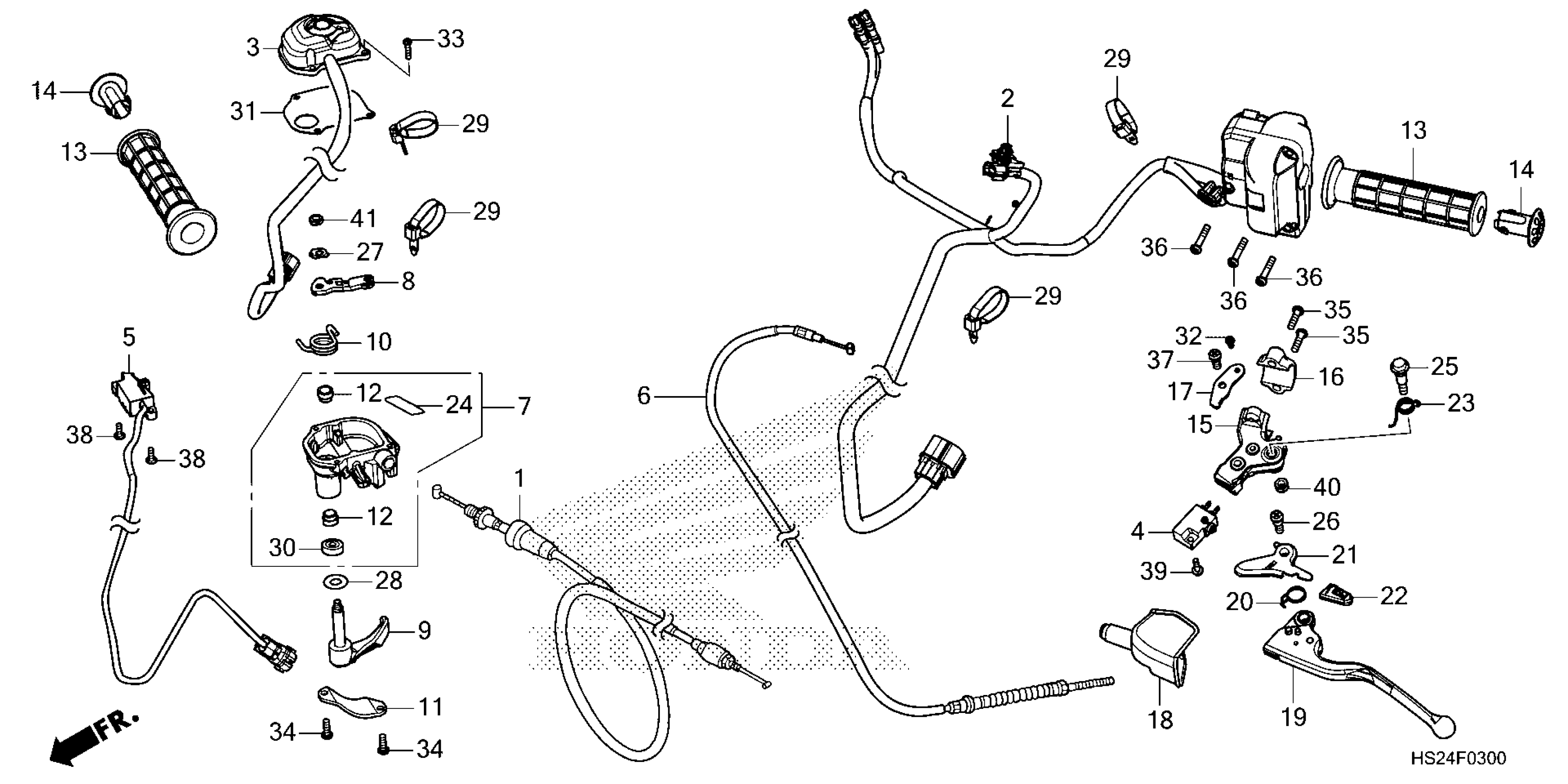

Honda TRX700FA53A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE330-RJ000001 TO 1HFTE330-RJ099999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN8-000

Unavailable

2

SW, ELECTRIC SHIFT

35140-HS2-A51

Unavailable

3

SWITCH ASSY., MODE SELECT

35300-HN8-F41

Unavailable

4

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

Unavailable

4

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

Unavailable

5

SWITCH ASSY., SELECT (2WD/4WD)

35400-HN8-003

Unavailable

6

CABLE, HAND BRAKE

43460-HN8-A00

Unavailable

7

CASE ASSY., THROTTLE LEVER

53143-HN0-305

Unavailable

8

ARM, THROTTLE

53144-HA0-010

Unavailable

9

LEVER, THROTTLE

53145-HA0-770

Unavailable

10

SPRING, THROTTLE RETURN

53146-HM8-000

Unavailable

11

HOLDER, THROTTLE CASE

53147-HN0-670

Unavailable

12

BUSH, THROTTLE PIVOT

53148-HA0-000

Unavailable

13

GRIP, HANDLE

53165-HP5-600

Unavailable

14

GUARD, HANDLE END

53167-HP5-600

Unavailable

15

BRACKET, BRAKE LEVER

53172-HN8-000

Unavailable

16

HOLDER, LEVER BRACKET

53173-376-000

Unavailable

17

STAY, PARKING BRAKE STOPPER

53174-HN8-000

Unavailable

18

COVER, L. HANDLE LEVER

53177-HN8-000

Unavailable

19

LEVER, L. HANDLEBAR

53178-HN8-010

Unavailable

20

SPRING, PARKING BRAKE LEVER

53191-HN8-000

Unavailable

21

LEVER, PARKING BRAKE LOCK

53192-HN8-000

Unavailable

22

CAP, PARKING LEVER

53193-HA0-770

Unavailable

23

SPRING, RETURN LEVER

53193-HN8-000

Unavailable

24

MARK, SELECT (2WD/4WD)

87516-HN0-670

Unavailable

25

BOLT, HANDLE LEVER PIVOT

90114-HN8-000

Unavailable

26

SCREW, PARKING LEVER PIVOT

90115-HA6-000

Unavailable

27

WASHER, LOCK (6MM)

90501-HA0-000

Unavailable

28

WASHER (9X20)

90504-HA0-000

Unavailable

29

BAND, WIRE HARNESS

90651-MA6-720

Unavailable

30

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

Unavailable

30

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

Unavailable

31

GASKET, THROTTLE CASE

91532-HN8-000

Unavailable

32

SCREW, PAN (4X8)

93500-04008-0G

Unavailable

33

SCREW, PAN (4X16)

93500-04016-0G

Unavailable

34

SCREW, PAN (5X14)

93500-05014-0G

Unavailable

35

SCREW, PAN (5X18)

93500-05018-0G

Unavailable

36

SCREW, PAN (5X28)

93500-05028-0G

Unavailable

37

SCREW, PAN (6X16)

93500-06016-0G

Unavailable

38

SCREW-WASHER (4X12)

93891-04012-07

Unavailable

39

SCREW-WASHER (4X16)

93893-04016-07

Unavailable

40

NUT, HEX. (6MM)

94001-06070-0S

Unavailable

41

NUT, HEX. (6MM)

94002-06000-0S

Unavailable
