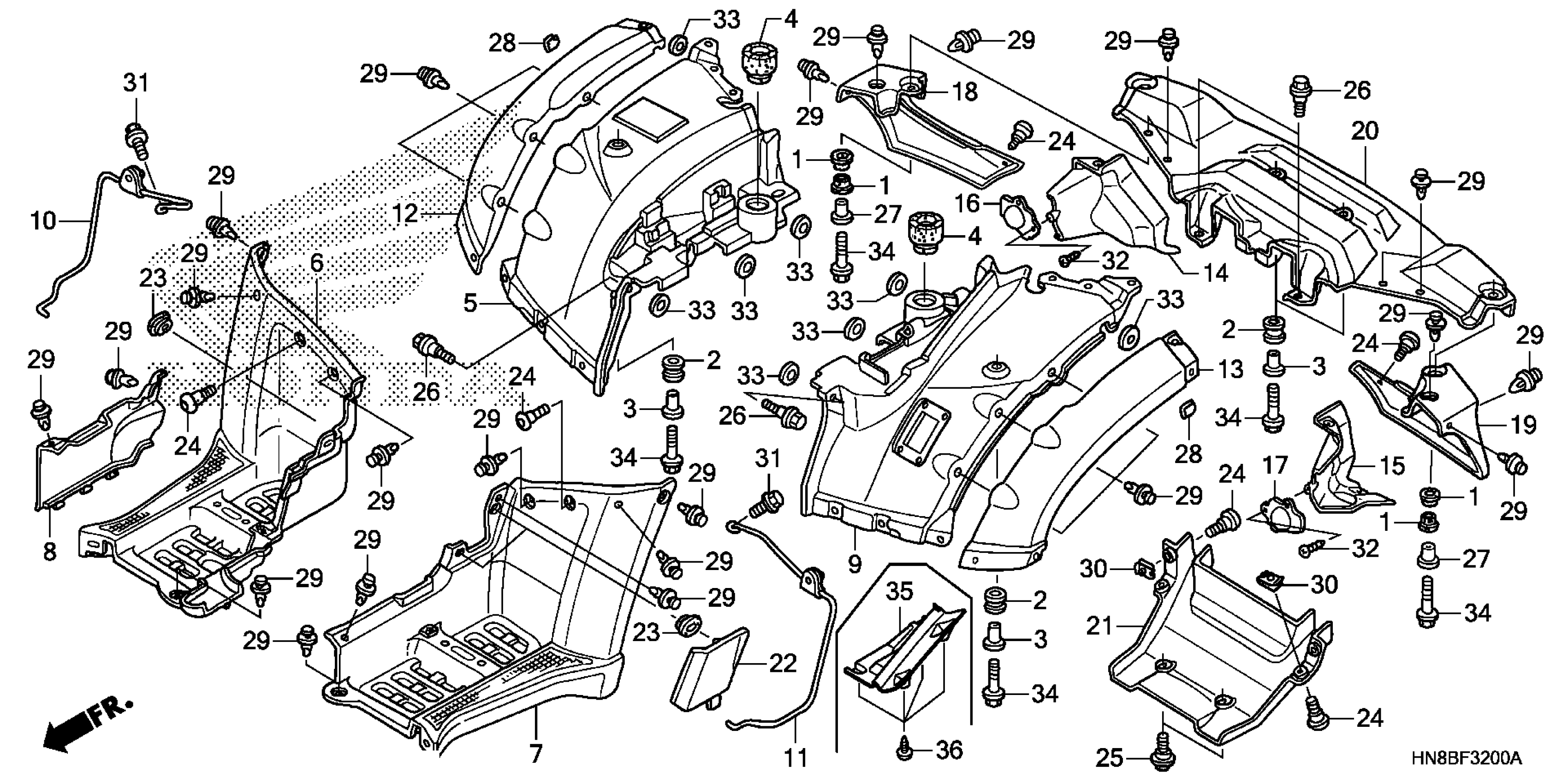

Honda TRX680FAAC (14) FOURTRAX RINCON, USA, VIN# 1HFTE330-E4900001 TO 1HFTE330-E4999999 REAR FENDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.29

2

RUBBER, FR. FENDER MOUNTING (RR.)

61103-HM5-850

$1.35

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

4

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.64

5

FENDER, R. RR. *G152* (ADVENTURE GREEN) | Adventure green G152;

80100-HN8-000ZA

$134.39

5

FENDER, R. RR. *R232* (PATRIOT RED) | Patriot red R232;

80100-HN8-000ZB

$124.90

5

FENDER, R. RR. *YR252R* (SANDSTONE BEIGE R) | Sandstone beiger YR252R;

80100-HN8-000ZG

$134.35

6

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HN8-000ZA

$207.43

7

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HN8-000ZA

Unavailable

8

COVER, R. ENGINE SUB *NH1* (BLACK)

80123-HN8-000ZA

$13.59

9

FENDER, L. RR. *G152* (ADVENTURE GREEN) | Adventure green G152;

80200-HN8-B80ZA

$134.41

9

FENDER, L. RR. *R232* (PATRIOT RED) | Patriot red R232;

80200-HN8-B80ZC

$134.33

9

FENDER, L. RR. *YR252R* (SANDSTONE BEIGE R) | Sandstone beiger YR252R;

80200-HN8-B80ZE

$134.39

10

STAY, R. RR. FENDER

80217-HN8-000

$10.75

11

STAY, L. RR. FENDER

80218-HN8-000

$10.75

12

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HN8-000ZA

$16.53

13

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HN8-000ZA

$16.30

14

PROTECTOR, R. TAILLIGHT COVER

80235-HN8-000

$45.91

15

PROTECTOR, L. TAILLIGHT COVER

80236-HN8-000

$45.91

16

CAP, R. TAILLIGHT COVER

80240-HN8-000

$7.54

17

CAP, L. TAILLIGHT COVER

80241-HN8-000

$7.54

18

SPLASH GUARD, R. RR. *NH1* (BLACK)

80255-HN8-000ZA

$13.88

19

SPLASH GUARD, L. RR. *NH1* (BLACK)

80260-HN8-000ZA

$13.88

20

SPLASH GUARD ASSY., RR. *NH1* (BLACK)

80270-HN8-A00ZA

$246.24

21

PROTECTOR, MUFFLER *NH1* (BLACK)

81320-HN8-000ZA

$14.98

22

LID, OIL *NH1* (BLACK)

83130-HN8-000ZA

$6.28

23

GROMMET, SIDE COVER

83551-MA6-000

$3.12

24

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.17

25

BOLT, FLANGE (6MM)

90111-187-000

$5.21

26

BOLT, FLANGE (6MM)

90111-197-890

$3.32

27

COLLAR (6.3X13.5)

90503-KE1-000

$4.16

28

U-CLIP

90651-HN8-000

$2.62

29

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

30

NUT, CLIP (6MM)

90675-SA5-003

$4.84

31

BOLT-WASHER (6X14)

93404-06014-07

$0.84

32

SCREW, TAPPING (4X12)

93903-24320

$0.83

33

WASHER, PLAIN (8MM)

94103-08800

$0.86

34

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
