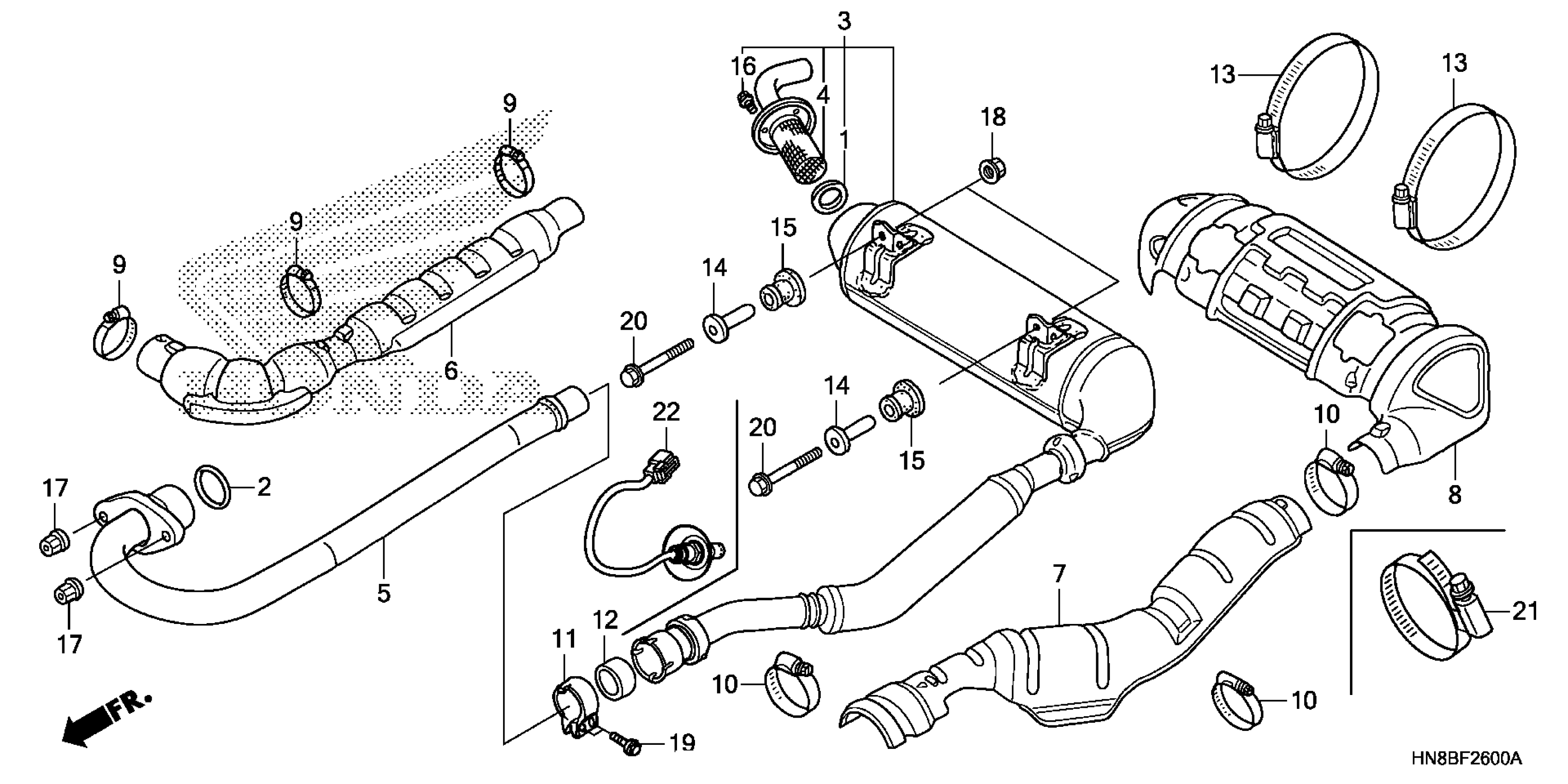

Honda TRX680FAAC (14) FOURTRAX RINCON, USA, VIN# 1HFTE330-E4900001 TO 1HFTE330-E4999999 MUFFLER Diagram

GASKET, EX. PIPE

18291-KAE-870

$4.07

GASKET, EX. PIPE

18291-MM5-860

$4.81

MUFFLER ASSY.

18300-HN8-A60

Unavailable

ARRESTER, SPARK

18317-HN8-A60

$43.92

PIPE, EX.

18320-HN8-000

$60.39

COVER, EX. PIPE

18321-HN8-A60

$41.14

PROTECTOR, HEAT

18322-HN8-A60

$84.14

COVER, MUFFLER

18323-HN8-000

$53.26

BAND, EX. PIPE COVER

18325-HN2-000

$9.86

BAND, HEAT PROTECTOR

18326-HN2-000

Unavailable

BAND, FR. EX. PIPE

18373-MR5-000

$23.39

GASKET, MUFFLER

18392-MBH-000

$14.82

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.43

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.20

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.48

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

NUT, FLANGE (8MM)

94050-08080

$0.86

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

BOLT, FLANGE (8X50)

95701-08050-08

$2.17
