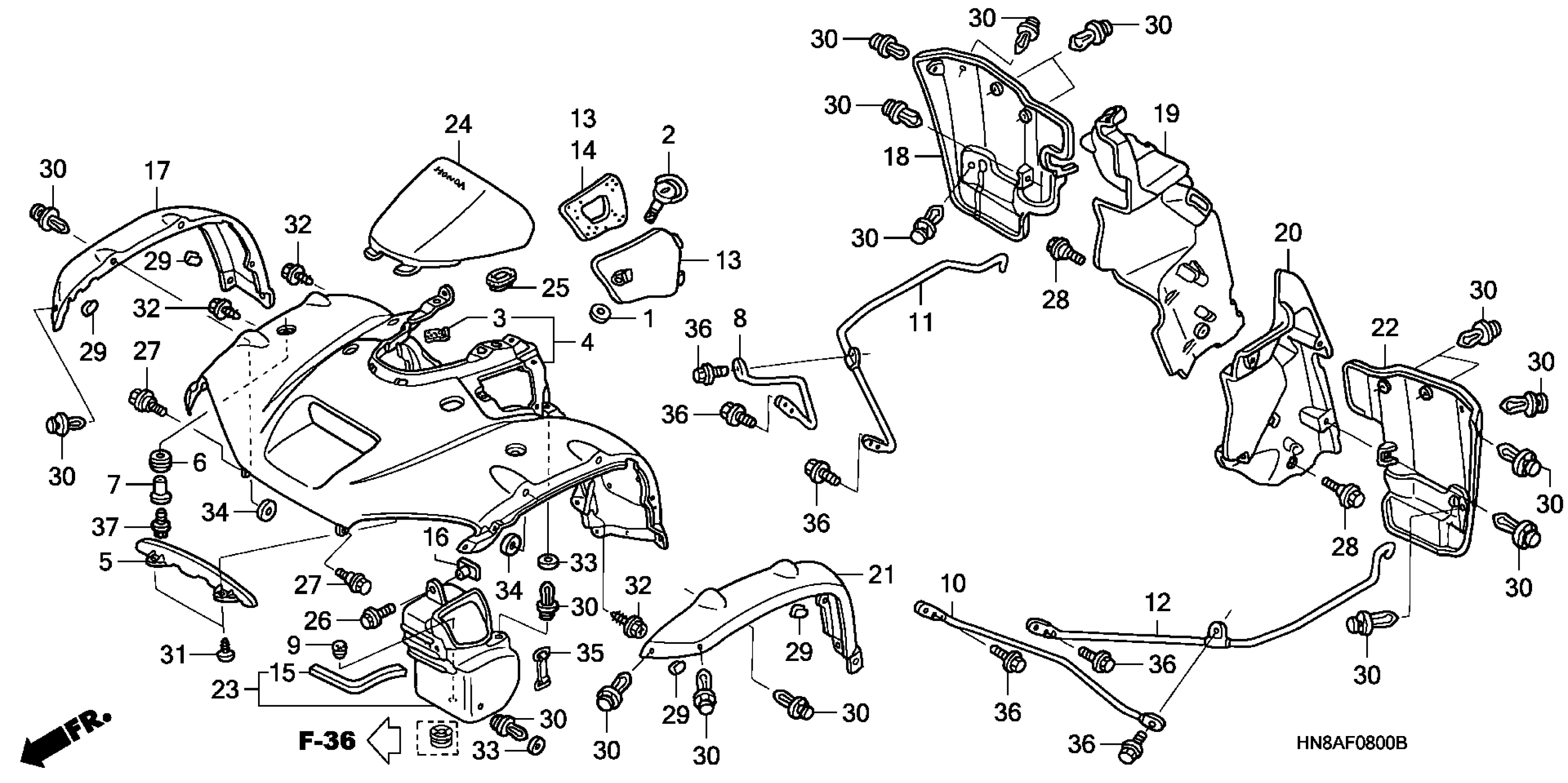

Honda TRX680FAA (09) FOURTRAX RINCON, USA, VIN# 1HFTE330-94400001 FRONT FENDER Diagram

#

Description
Price

1

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.24

2

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.67

2

STUD (6X21)

17225-KN5-671

$6.67

3

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.44

4

FENDER, FR. *G152* (ADVENTURE GREEN) | Adventure green G152; This part replaces 61100-HN8-B80ZA.

61100-HN8-B81ZA

$97.43

4

FRONT FEN*PB357R* | Eastern blue PB357R; This part replaces 61100-HN8-B80ZB.

61100-HN8-305ZG

$97.18

4

FENDER, FR. *R232* (PATRIOT RED) | Patriot red R232; This part replaces 61100-HN8-B80ZC.

61100-HN8-B81ZC

$93.04

4

FENDER, FR. *R232* (PATRIOT RED)

61100-HN8-B81ZC

$93.04

5

PLATE, RADIATOR

61101-HN8-000

$7.12

6

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

8

STAY, R. FR. FENDER

61105-HN2-000

$32.68

9

PLUG, FR. FENDER

61105-KA8-000

$1.34

10

STAY, L. FR. FENDER

61106-HN2-000

$36.21

11

STAY, R. SPLASH GUARD CENTER

61107-HN2-000

$49.01

12

STAY, L. SPLASH GUARD CENTER

61108-HN2-000

$45.91

13

LID ASSY., UTILITY BOX *G152* (ADVENTURE GREEN) | Adventure green G152;

61110-HN8-000ZA

$14.10

13

LID ASSY., UTILITY BOX *R232* (PATRIOT RED) | Patriot red R232;

61110-HN8-000ZB

$13.44

13

LID ASSY., UTILITY BOX *PB357R* (EASTERN BLUE) | Eastern blue PB357R;

61110-HN8-000ZF

$15.34

14

SEAL, UTILITY BOX LID

61125-HN8-000

$4.92

15

SEAL B, UTILITY BOX

61126-HN8-000

$3.85

16

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

17

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HN8-000ZA

$27.63

18

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61862-HN8-000ZA

$28.56

19

FENDER, R. (INNER)

61863-HN8-000

$18.15

20

FENDER, L. (INNER)

61864-HN8-000

$19.46

21

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HN8-000ZA

$27.63

22

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61867-HN8-000ZA

$28.56

23

BOX, UTILITY

80210-HN8-A60

$30.50

24

COVER SET, STEERING *NH1* (WL) (BLACK)

83450-HN8-B80ZA

$63.93

25

GROMMET, SIDE COVER

83551-MA6-000

$3.19

26

BOLT, FLANGE (6X14)

90111-HC4-000

$2.86

27

BOLT, RR. FENDER SETTING

90111-KAE-870

$4.24

28

BOLT, FLANGE (6MM)

90111-162-000

$2.66

29

U-CLIP

90651-HN8-000

$2.66

30

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

31

SCREW, TAPPING (5X16)

93903-25320

$0.90

32

SCREW, TAPPING (6X16)

93904-26210

$0.56

33

WASHER, PLAIN (8MM)

94101-08800

$1.74

34

WASHER, PLAIN (8MM)

94103-08800

$0.87

35

BAND F, BATTERY (155MM)

95012-17001

$6.90

36

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

37

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
