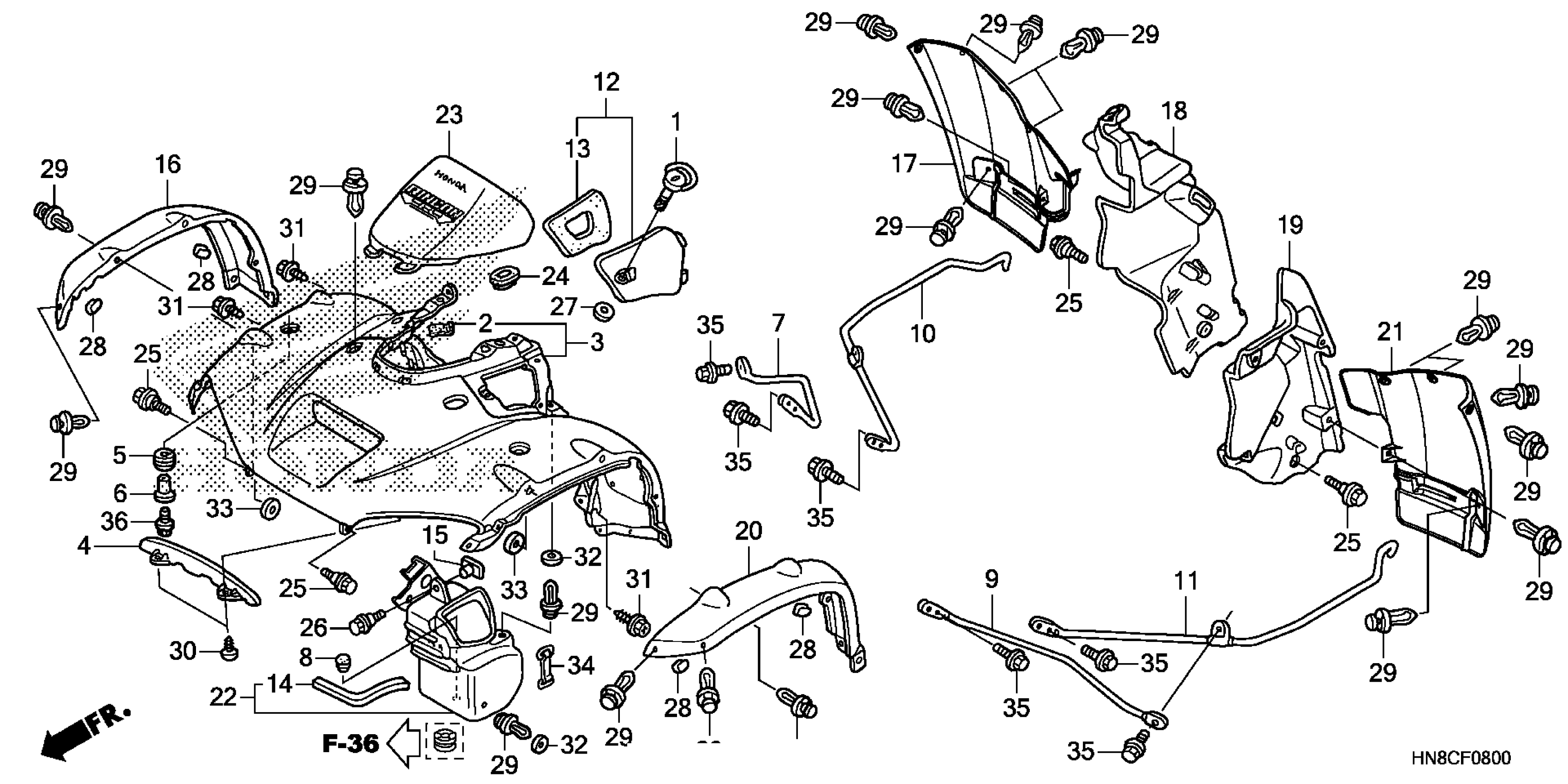

Honda TRX680FA5A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE331-N4700001 TO 1HFTE331-N4799999 FRONT FENDER Diagram

#

Description
Price

1

STUD (6X21)

17225-KN5-671

$6.67

2

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.44

3

FENDER, FR. *R232* (PATRIOT RED)

61100-HN8-L10ZA

$106.46

3

FENDER, FR. *G152* (ADVENTURE GREEN)

61100-HN8-L10ZB

$113.01

4

PLATE, RADIATOR

61101-HN8-000

$7.12

5

RUBBER, FR. FENDER MOUNTING (Honda Code 4735148)

61103-HM5-850

$1.37

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

6

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

7

STAY, R. FR. FENDER

61105-HN2-000

$32.68

8

PLUG, FR. FENDER

61105-KA8-000

$1.34

9

STAY, L. FR. FENDER

61106-HN2-000

$36.21

10

STAY, R. SPLASH GUARD CENTER

61107-HN2-000

$49.01

11

STAY, L. SPLASH GUARD CENTER

61108-HN2-000

$45.91

12

LID ASSY., UTILITY BOX *R232* (PATRIOT RED)

61110-HN8-000ZB

$13.44

12

LID ASSY., UTILITY BOX *G152* (ADVENTURE GREEN)

61110-HN8-000ZA

$14.10

13

SEAL, UTILITY BOX LID

61125-HN8-000

$4.92

14

SEAL B, UTILITY BOX

61126-HN8-000

$3.85

15

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

16

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HN8-000ZA

$27.63

17

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61862-HN8-000ZA

$28.56

18

FENDER, R. (INNER)

61863-HN8-000

$18.15

19

FENDER, L. (INNER)

61864-HN8-000

$19.46

20

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HN8-000ZA

$27.63

21

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61867-HN8-000ZA

$28.56

22

BOX, UTILITY

80210-HN8-A60

$30.50

23

COVER SET, STEERING *NH1* (WL) (BLACK)

83450-HN8-J00ZA

$85.13

24

GROMMET, SIDE COVER

83551-MA6-000

$3.19

25

BOLT, FLANGE (6MM)

90111-162-000

$2.66

26

BOLT, FLANGE (6X14)

90111-HC4-000

$2.86

27

WASHER (5.4X14X0.5)

90505-MY6-920

$1.96

28

U-CLIP

90651-HN8-000

$2.66

29

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

30

SCREW, TAPPING (5X16)

93903-25320

$0.90

31

SCREW, TAPPING (6X16)

93904-26210

$0.56

32

WASHER, PLAIN (8MM)

94101-08800

$1.74

33

WASHER, PLAIN (8MM)

94103-08800

$0.87

34

BAND F, BATTERY (155MM)

95012-17001

$6.90

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

36

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
