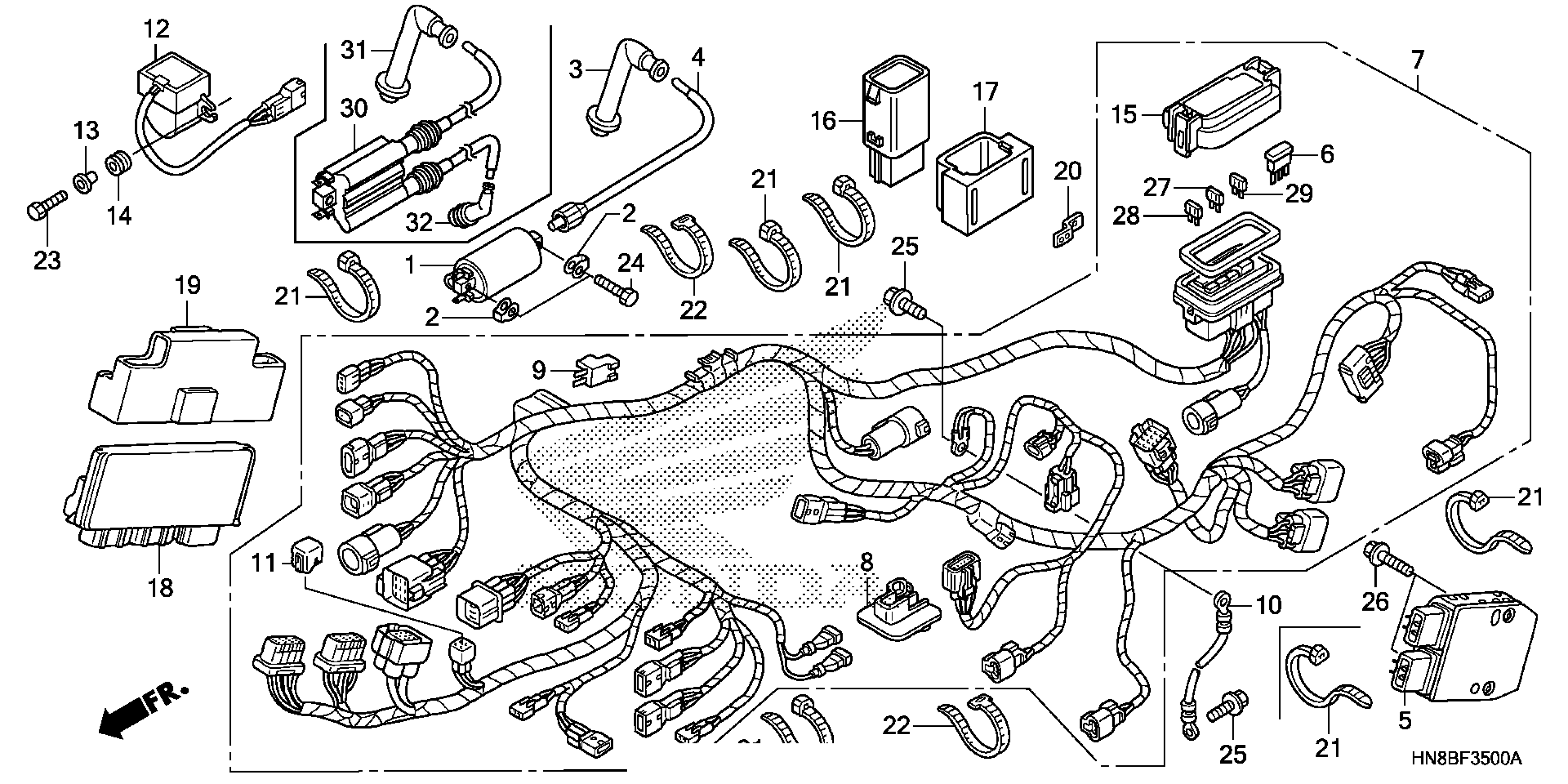

Honda TRX680FA2AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE336-G4100001 WIRE HARNESS Diagram

SPACER, IGNITION COIL

30520-ML7-000

$3.77

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$193.01

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HN8-F40

$428.66

COVER, CONNECTOR

32107-HN8-A60

$5.80

CABLE, GROUND

32603-HN8-000

$31.92

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE

35161-HN8-F41

$110.18

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

COVER SET, FUSE

38220-HN8-B40

$7.08

RELAY, WATERPROOF (15AX2)

38580-HP5-601

$46.40

CUSHION, RELAY

38585-HN8-B41

$5.66

PGM-FI UNIT

38770-HN8-F42

$1,400.03

CUSHION, PGM-FI UNIT

38771-HN8-A60

$34.03

STAY A, CONNECTOR

50327-HN5-670

$3.90

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BOLT-WASHER (4X20)

93401-04020-08

$1.49

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67

COIL ASSY., IGNITION

30510-HN8-F41

$98.34

CAP ASSY., NOISE SUPPRESSOR

30700-HL1-A21

$46.07

CAP ASSY., NOISE SUPPRESSOR (NGK)

30701-HN8-F41

$26.07
