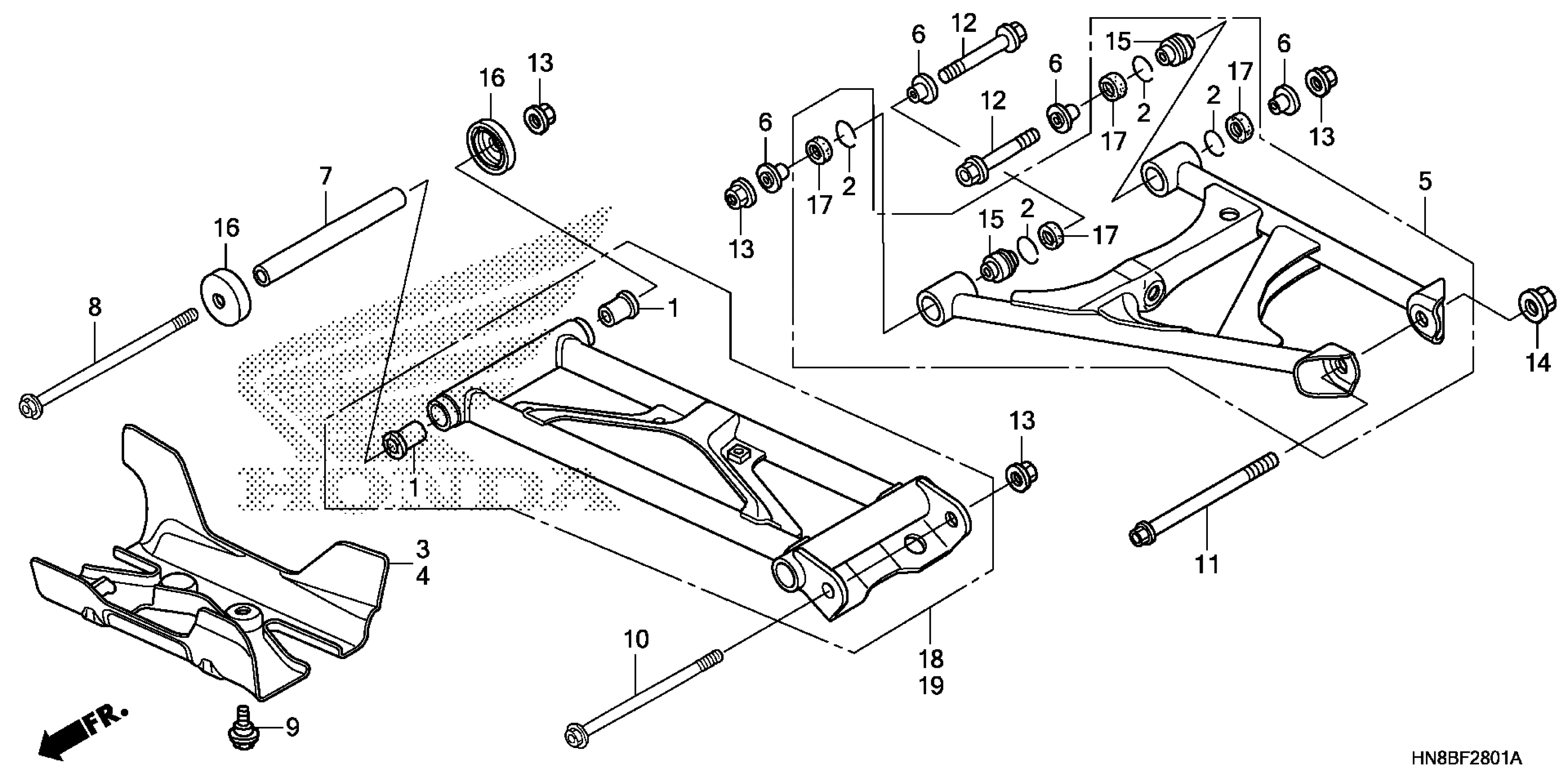

Honda TRX680FA2AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE336-G4100001 REAR ARM (2) Diagram

BUSH, ARM (UPPER)

51108-HN2-000

$8.71

RING, STOPPER

51393-HB9-670

$4.64

GUARD, R. RR.

52315-HN8-F40

$7.70

GUARD, L. RR.

52316-HN8-F40

$7.70

ARM ASSY., RR. (UPPER)

52370-HN8-F40

$162.62

COLLAR, ARM PIVOT

52394-HN8-000

$7.96

COLLAR A, ARM (LOWER)

52463-HN8-000

$16.06

BOLT, FLANGE (10X170)

90102-HN8-000

$4.47

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

BOLT, FLANGE (10X138)

90116-KW3-000

$12.52

BOLT, FLANGE (12X113)

90161-S30-000

$17.58

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, SELF-LOCK (12MM)

90305-HC4-000

$3.90

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$34.40

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

SEAL, PIVOT

91261-HN8-F41

$9.70

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

Unavailable

ARM SET, R. RR. (LOWER)

52330-HN8-F40

$135.78

ARM SET, L. RR. (LOWER)

52340-HN8-F40

$130.09
