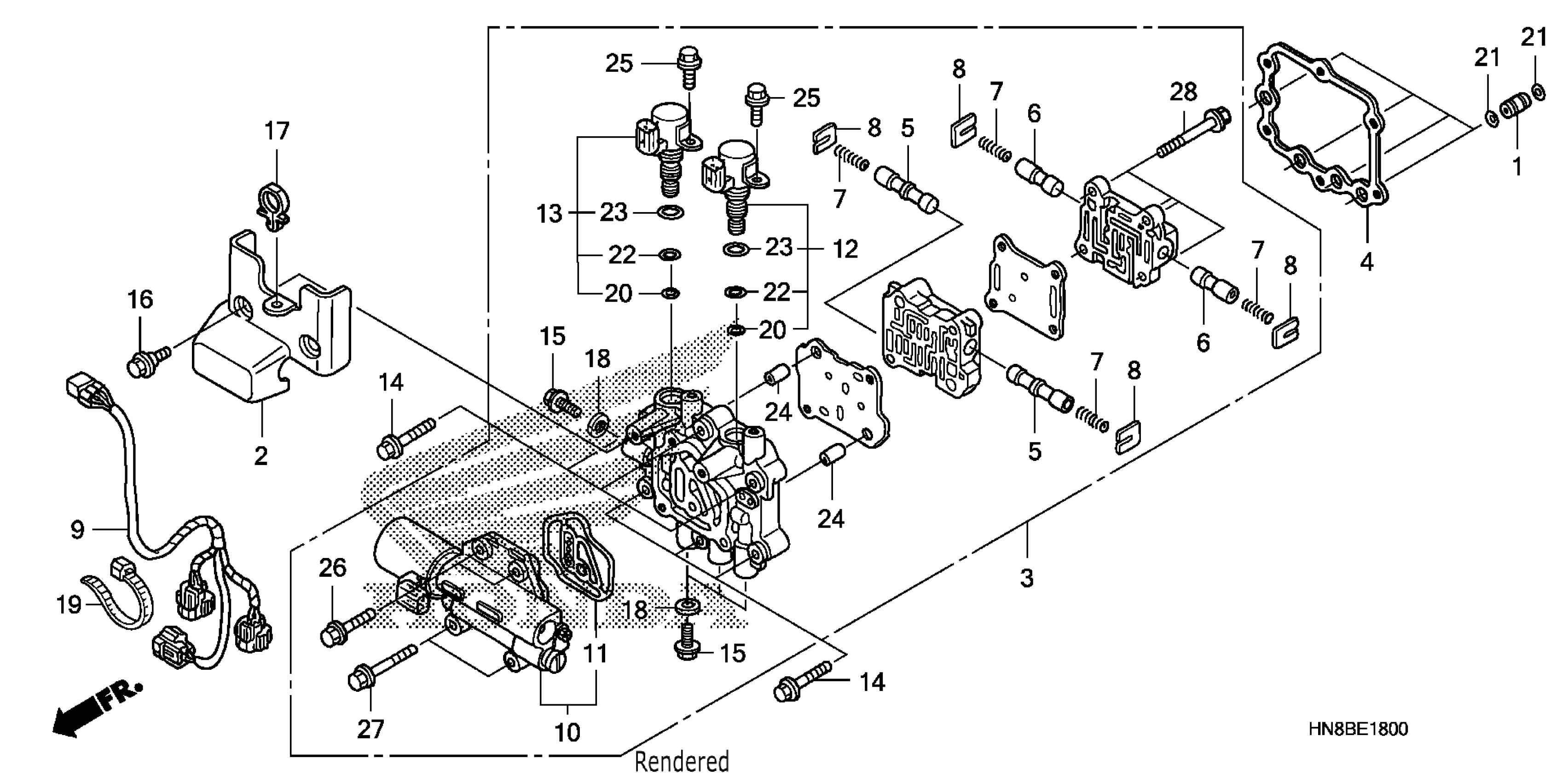

Honda TRX680FA2AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE336-G4100001 MAIN VALVE BODY Diagram

PIN, OIL GUIDE (10MM)

11334-HN8-010

$9.89

COVER, SOLENOID

11355-HN8-000

$19.03

BODY ASSY., MAIN VALVE

27100-HN8-003

$837.90

GASKET, OIL CONTROL COVER

27135-HN8-000

$9.29

VALVE, SHIFT

27211-HN8-003

$12.28

VALVE, ORIFICE CONTROL

27221-HN8-003

$10.72

SPRING, VALVE

27231-HN8-003

$6.48

SEAT, VALVE SPRING

27263-PX3-000

$4.48

SUB-WIRE, SOLENOID

32102-HN8-F40

$38.23

SOLENOID ASSY., LINEAR

38610-HN8-003

$260.57

GASKET, BASE

38615-HN8-003

$22.19

SOLENOID ASSY. A

38620-HN8-003

$94.85

SOLENOID ASSY. B

38630-HN8-003

$94.85

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, SEALING (8MM)

90024-612-000

$4.76

BOLT, FLANGE (6MM)

90111-187-000

$5.59

CLIP, HARNESS

90684-ZA0-601

$2.93

GASKET (8MM)

90471-580-000

$2.92

O-RING (7.6X1.9) (KEIHIN)

91301-P6H-003

$2.92

O-RING (7X1.7)

91301-473-003

$2.72

O-RING (9.6X1.9) This part replaces 91302-P6H-003.

91302-P7W-A00

$2.69

O-RING (11.7X1.9) (KEIHIN)

91303-P6H-003

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

BOLT, FLANGE (6X50)

95701-06050-08

$2.16
