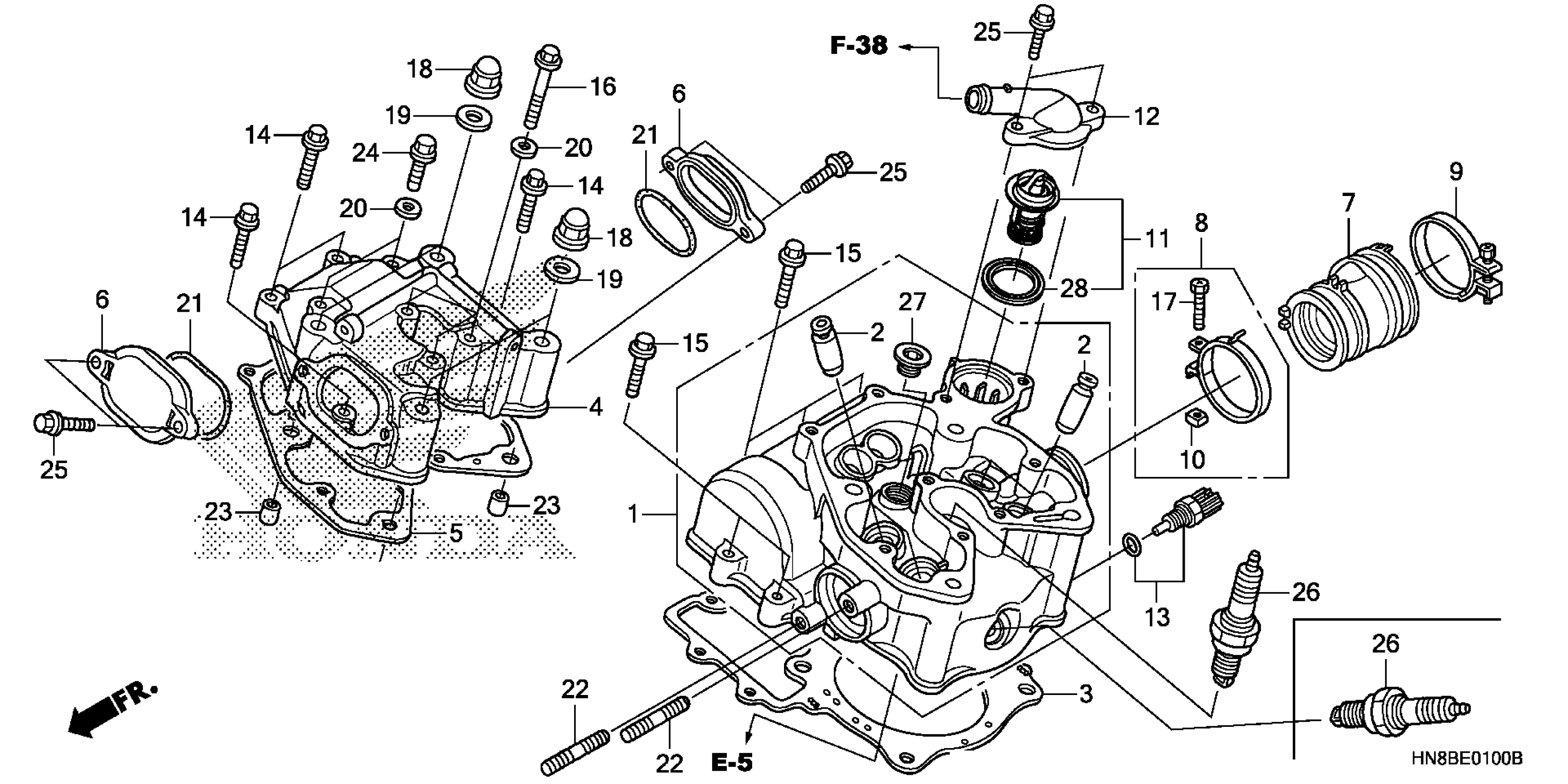

Honda TRX680FA2AC (13) FOURTRAX RINCON, USA, VIN# 1HFTE336-D4800001 TO 1HFTE336-D4899999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-HN8-A60

$726.00

GUIDE, VALVE (OVER SIZE)

12204-HN2-305

$17.60

GASKET, CYLINDER HEAD

12251-HN8-A61

$42.89

COVER, CYLINDER HEAD

12310-HN8-000

$189.48

GASKET, CYLINDER HEAD COVER

12315-HN8-000

$15.20

COVER, TAPPET ADJUSTING HOLE

12351-HN2-010

$12.13

INSULATOR, THROTTLE BODY

16211-HN8-A60

$23.06

BAND, CARBURETOR INSULATOR

16219-HN8-000

$8.00

BAND, INSULATOR

16219-MBB-000

$10.67

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

THERMOSTAT SET This part replaces 19300-HN8-003.

19300-HN8-305

$58.86

THERMOSTAT SET

19300-HN8-305

$58.86

COVER, THERMOSTAT

19321-HN8-000

$20.84

SENSOR ASSY., WATER TEMPERATURE This part replaces 37870-HN8-A60.

37870-HN8-A61

$32.94

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.77

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.19

BOLT, RECESSED (5X28)

90023-MM5-000

$2.80

NUT, CAP (10MM)

90201-HA0-000

$5.99

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

WASHER, PLAIN (10MM)

90401-437-000

$2.55

WASHER, SEALING (6MM)

90441-706-000

$1.06

O-RING (57X2.5)

91308-500-000

$6.54

BOLT, STUD (8X25)

92900-08025-0B

$2.00

PIN A, DOWEL (12X16)

94301-12160

Unavailable

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

SPARK PLUG (VK16PRZ11) (DENSO)

98079-5515U

$29.67

SPARK PLUG (IFR5L11) (NGK)

98079-5517U

$14.16

SPARK PLUG (VK20PRZ11) (DENSO) | (Optional).

98079-5615U

$29.67

SPARK PLUG (IFR6L11) (NGK) | (Optional).

98079-5617U

$15.90

BOLT, SEALING (18MM)

12206-ML8-300

$8.70

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$8.70

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$8.70

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$8.70

RUBBER, THERMOSTAT

19305-KV3-010

$5.64
