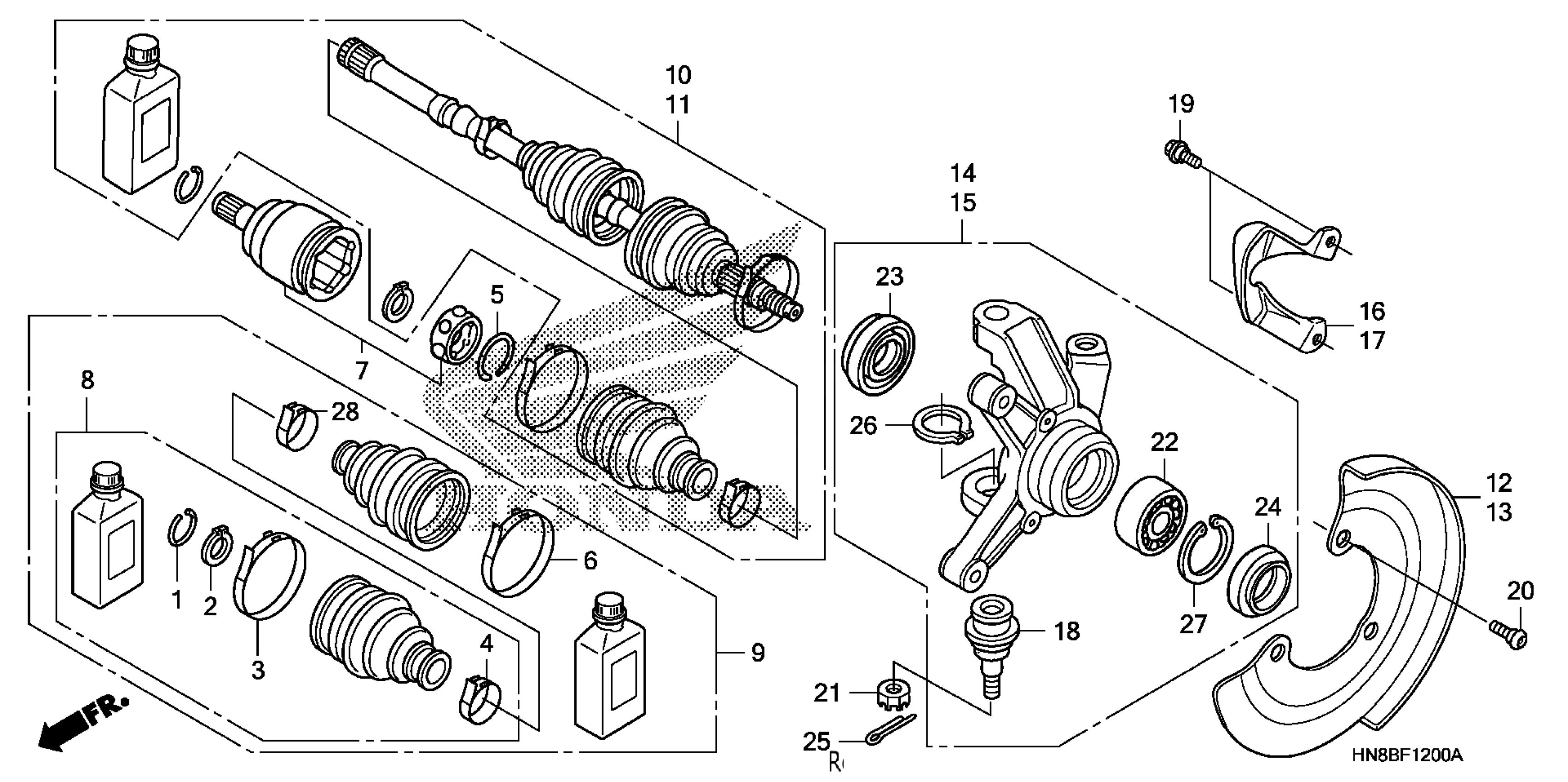

Honda TRX680FA2A (12) FOURTRAX RINCON, USA, VIN# 1HFTE336-C4700001 TO 1HFTE336-C4799999 FRONT KNUCKLE Diagram

Description

Price

RING, SNAP

42206-HA7-671

$1.09

CIRCLIP

42209-HC5-003

$0.83

BAND B, INBOARD

44205-HN8-A41

$7.67

BAND A, INBOARD

44206-HN8-A41

$7.67

RING, SNAP

44207-HN8-A41

$7.18

BAND, OUTBOARD BOOT

42336-SN4-003

$10.37

JOINT, INBOARD

44220-HN8-A41

$102.81

BOOT SET, INBOARD

44230-HN8-A41

$50.24

BOOT SET

44240-HP0-305

$66.31

DRIVESHAFT SET, R. FR.

44250-HN8-A43

$158.69

DRIVESHAFT SET, L. FR.

44350-HN8-A43

$158.93

SPLASH GUARD, R.

45255-HP0-A00

$20.32

SPLASH GUARD, L.

45256-HP0-A00

$20.32

KNUCKLE ASSY., R.

51200-HP0-B00

$187.36

KNUCKLE ASSY., L.

51250-HP0-B00

Unavailable

GUARD, R. FR. OUTBOARD

51325-HN2-B70

$4.53

GUARD, L. FR. OUTBOARD

51326-HN2-B70

$4.53

JOINT A, ARM BALL

51375-HP5-601

$17.90

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

BOLT, SOCKET (6X15)

90114-HP0-A00

$1.93

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

BEARING, ANGULAR BALL (30X54X24)

91051-HA7-651

$48.18

DUST SEAL (40X58X7)

91209-HN2-003

$10.62

DUST SEAL (38X55X6)

91256-HP0-A01

$7.36

PIN, SPLIT (3.0X18)

94201-30180

$0.94

CIRCLIP (OUTER) (34MM)

94514-34000

$1.68

CIRCLIP, INNER (55MM)

94520-55000

$2.80

BAND, SHAFT BOOT

44318-SJ7-003

$8.17
