Description

Price

1

BUSH, ARM (UPPER)

51108-HN2-000

$8.71

2

RING, STOPPER

51393-HB9-670

$4.64

3

CAP, ARM PIVOT

52206-HN8-000

$8.94

4

GUARD, R. RR.

52315-HN8-000

$11.55

5

GUARD, L. RR.

52316-HN8-000

$11.55

6

ARM SET, RR. (LOWER)

52330-HN8-000

$215.48

7

ARM ASSY., RR. (UPPER)

52370-HN8-000

$381.77

8

COLLAR, ARM PIVOT

52394-HN8-000

$7.96

9

COLLAR A, ARM (LOWER)

52463-HN8-000

$16.06

10

COLLAR B, ARM (LOWER)

52464-HN8-000

$13.27

11

BOLT, FLANGE (10X170)

90102-HN8-000

$4.47

12

BOLT, SOCKET (6X23)

90111-HN8-000

$1.83

13

BOLT, SOCKET (10X147)

90127-HN8-000

$13.18

14

BOLT, SOCKET (12X130)

90128-HN8-000

$15.56

15

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

16

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

17

NUT, SELF-LOCK (12MM)

90305-HC4-000

$3.90

18

NUT, SELF-LOCK (6MM)

90343-ZE6-000

$1.62

19

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

20

DUST SEAL (24X36X7)

91264-HN8-003

$5.68

21

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

Unavailable

22

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.61

23

O-RING (17X1.4)

91355-HN8-003

$1.80

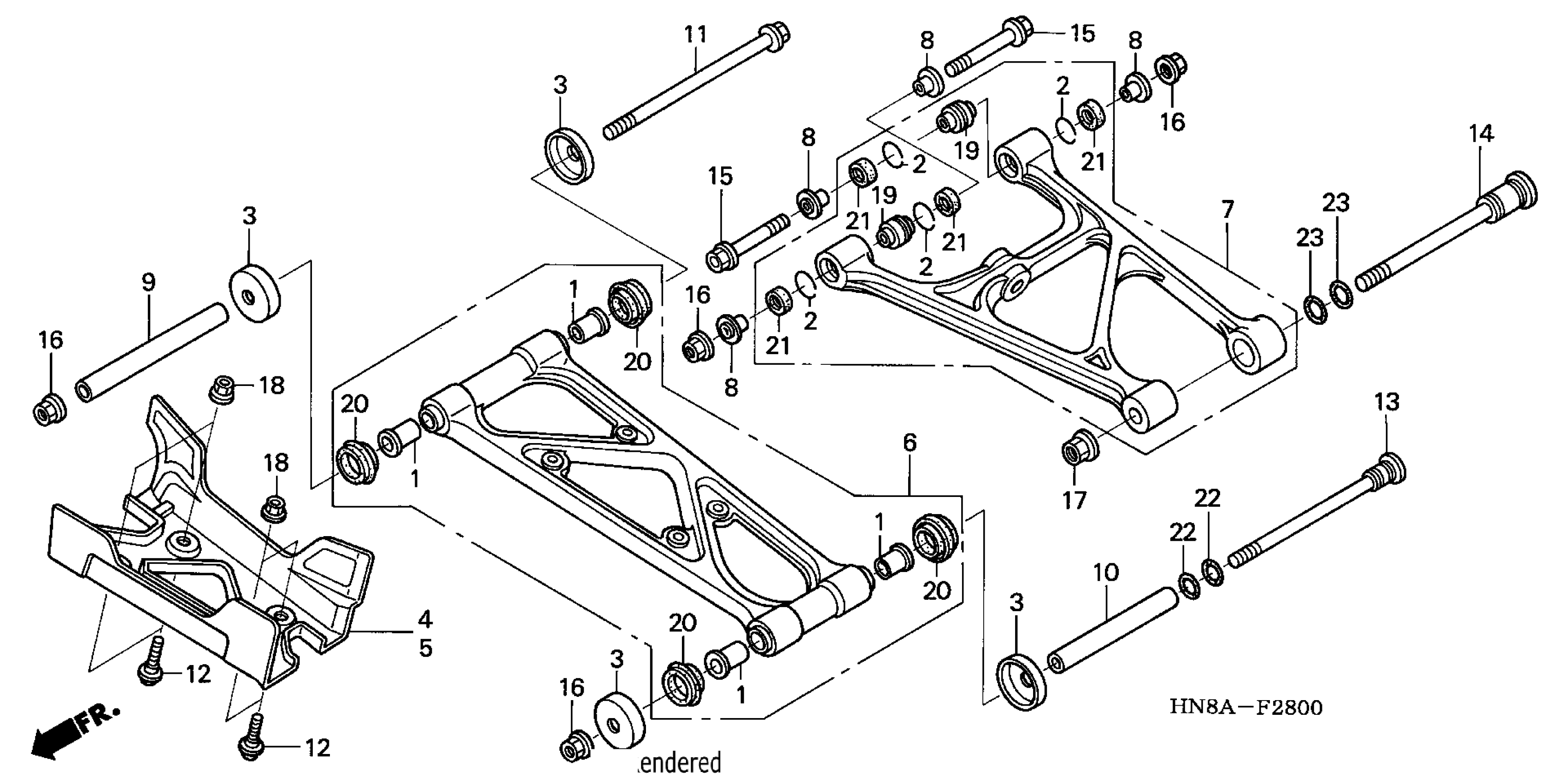

Honda TRX680FA2A (09) FOURTRAX RINCON, USA, VIN# 1HFTE336-94400001 REAR ARM Diagram
