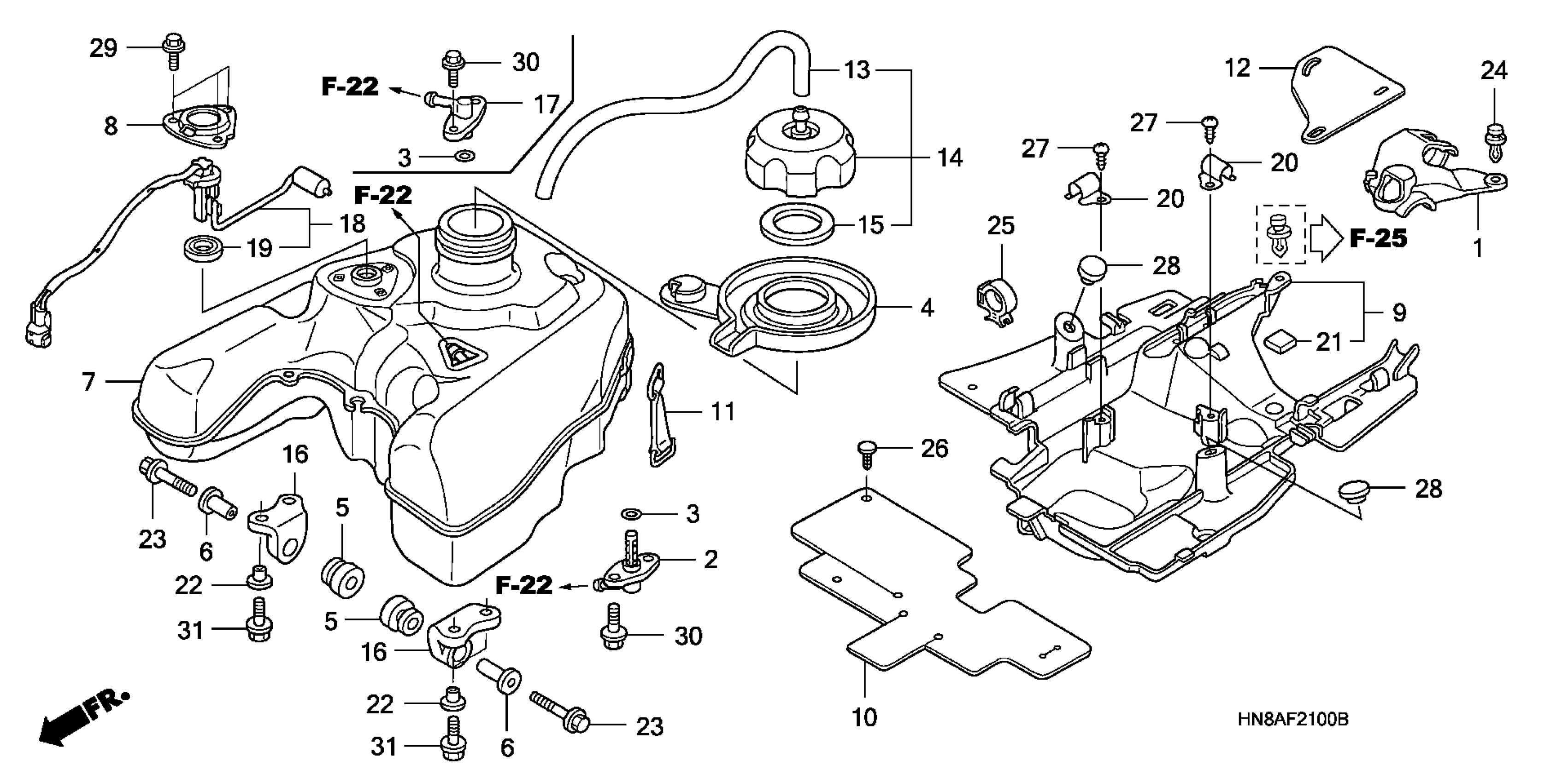

Honda TRX680FA2A (07) FOURTRAX RINCON, USA, VIN# 1HFTE336-74200001 TO 1HFTE336-74299999 FUEL TANK Diagram

COVER, THROTTLE BODY

16721-HN8-A60

$13.00

JOINT ASSY., FUEL

16958-HN8-A61

$10.56

O-RING (11.8X3.55)

16997-467-000

$2.11

TRAY, FUEL TANK

17507-HN8-A60

$12.10

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KS6-700

$9.13

TANK, FUEL

17510-HN8-A60

$265.56

PLATE, UNIT SET

17515-GBL-760

$4.93

PROTECTOR, TANK HEAT (LOWER)

17515-HN8-A60

$8.90

RUBBER, HEAT PROTECTOR

17516-HN8-A60

$10.07

BAND, TANK

17517-HN8-000

$4.21

RUBBER, RR. HEAT PROTECTOR

17518-HN8-A60

$2.54

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.99

CAP ASSY., FUEL TANK

17620-HF7-000

$55.16

GASKET, FUEL CAP

17624-HF7-000

$7.81

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

JOINT, VAPOR BREATHER

17684-HN8-A60

Unavailable

FUEL UNIT SET

37080-HN8-000

$57.49

GASKET, BASE

37801-GA7-700

$5.17

CLAMP A, CHOKE CABLE

50173-MAH-A00

$7.43

RUBBER, CUSHION PAD

64207-MAM-A00

$4.54

COLLAR

84706-415-000

$2.23

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

SCREW, TAPPING (5X12)

93913-25210

$1.49

RUBBER C, STAND STOPPER

95011-63000

$3.90

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
