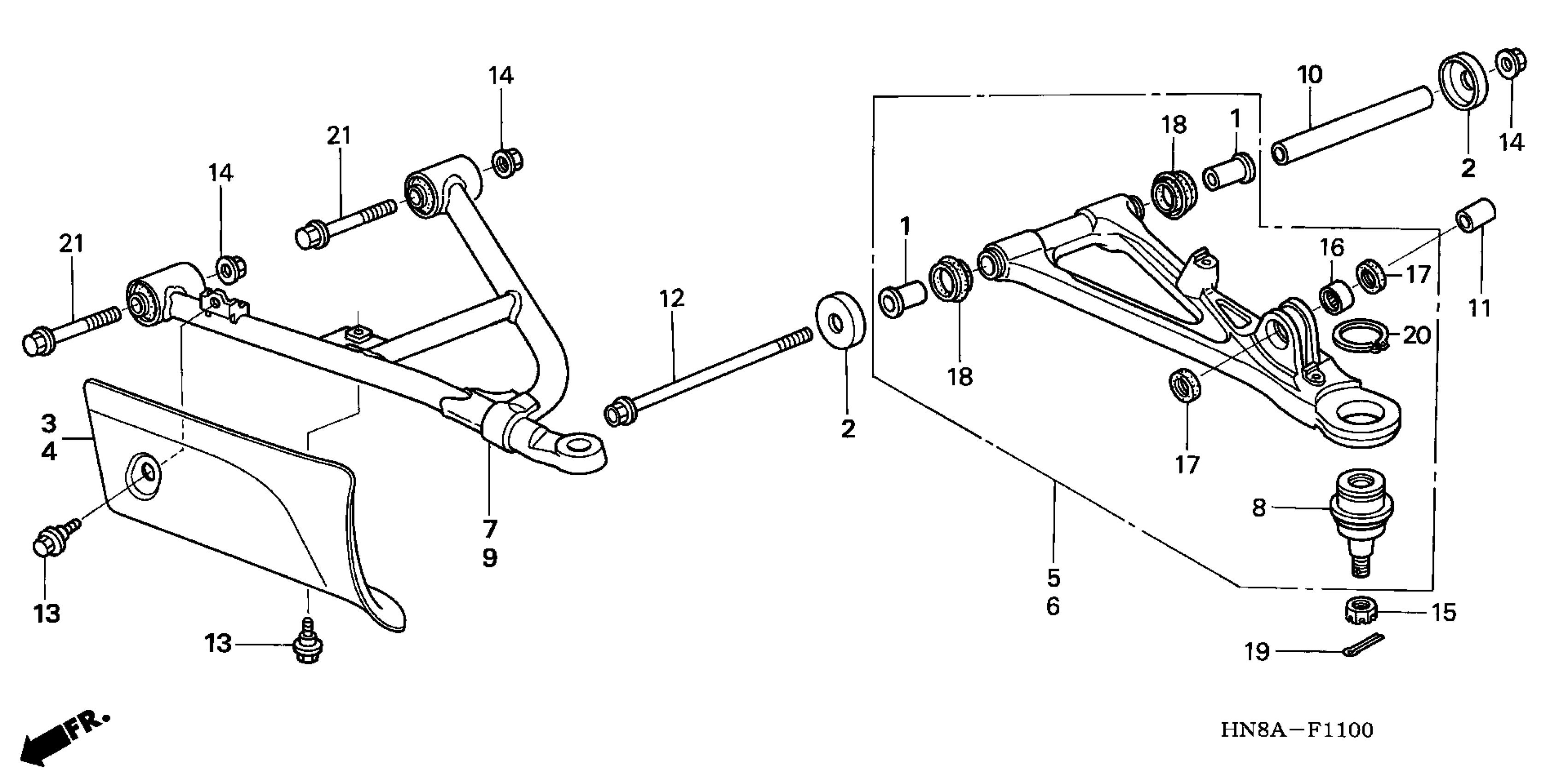

Honda TRX680FA2A (07) FOURTRAX RINCON, USA, VIN# 1HFTE336-74200001 TO 1HFTE336-74299999 FRONT ARM Diagram

BUSH, ARM (UPPER)

51108-HN2-000

$10.00

CAP, PIVOT (10X32)

51206-HN8-000

$9.43

GUARD, R. FR. INBOARD

51315-HN2-B70

$9.54

GUARD, R. FR. INBOARD This part replaces 51315-HP0-A00.

51315-HN2-B70

$9.54

GUARD, L. FR. INBOARD

51316-HN2-B70

$9.54

GUARD, L. FR. INBOARD This part replaces 51316-HP0-A00.

51316-HN2-B70

$9.54

ARM SET, R. FR. (UPPER)

51330-HN8-000

$444.48

ARM SET, L. FR. (UPPER)

51340-HN8-000

$455.59

ARM ASSY., R. FR. (LOWER)

51350-HP0-A00

$130.92

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

ARM ASSY., L. FR. (LOWER)

51360-HP0-A00

$134.19

COLLAR, ARM (UPPER)

51464-HN2-000

$11.64

COLLAR, RR. SHOCK ABSORBER

52486-HN2-000

$5.81

BOLT, FLANGE (10X164)

90106-HN8-000

$5.98

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, NEEDLE (16X22X12)

91077-HN2-003

$17.85

DUST SEAL (16X24X4)

91253-HN8-003

$4.92

DUST SEAL (24X32X7)

91261-HN8-003

$6.69

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
