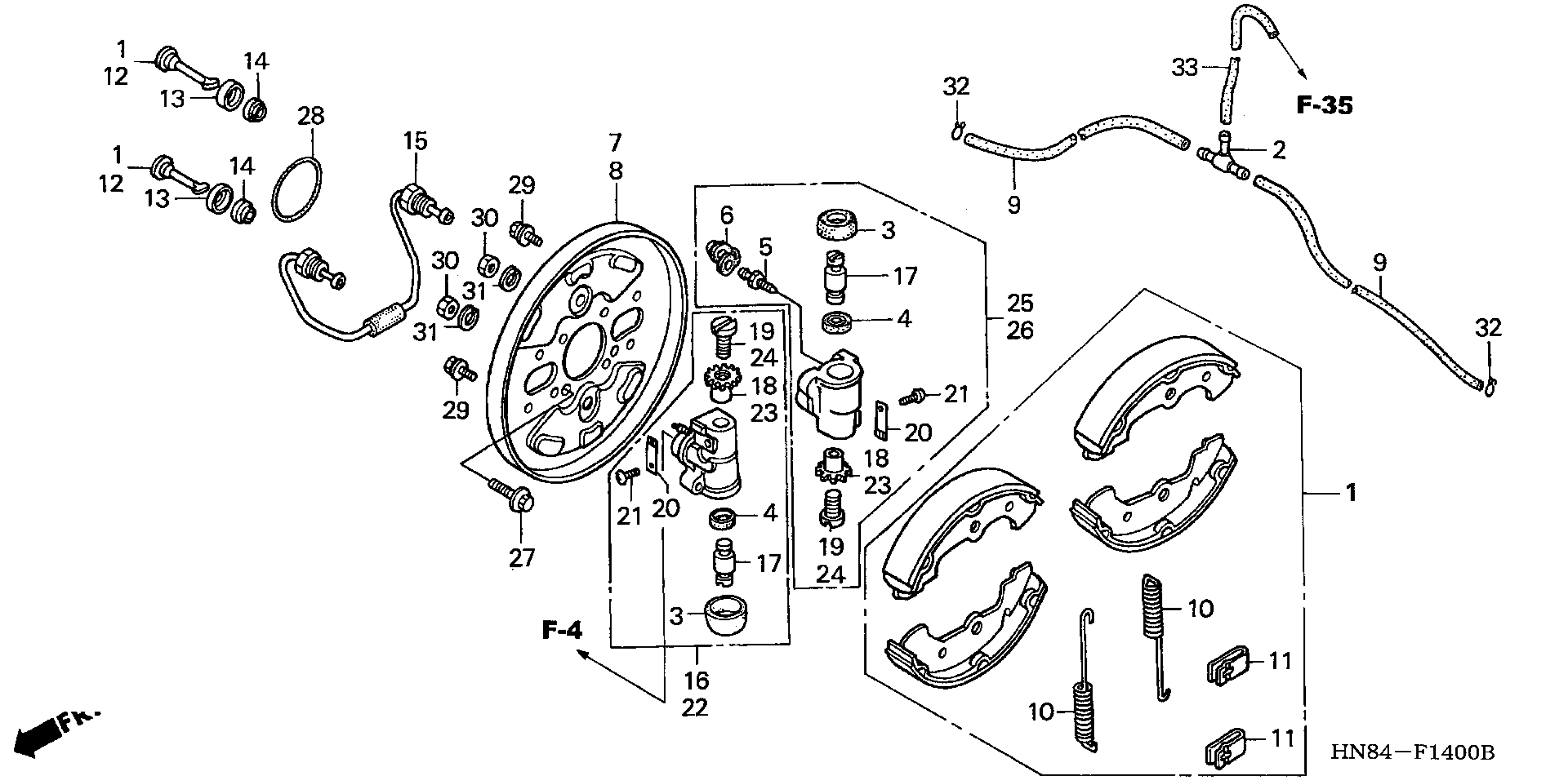

Honda TRX650FGAA (05) FOURTRAX RINCON GPSCAPE, USA, VIN# 1HFTE284-54000001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE

06450-HN5-671

$46.43

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

Unavailable

JOINT, TUBE

38581-679-003

Unavailable

COVER, DUST

43315-SN4-003

$6.42

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$6.42

CUP, PISTON

43322-663-003

$6.91

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

CAP, BLEEDER

43353-461-771

Unavailable

PLATE, R. BACK

45110-HN5-671

$145.74

PLATE, L. BACK

45120-HN5-671

$145.74

TUBE, FR. BRAKE BREATHER

45136-HN2-000

$3.65

SPRING, BRAKE

45171-HN5-671

$3.38

SPRING, SHOE CLAMP

45172-S04-003

$1.75

PIN, TENSION

45175-HC4-006

$3.71

CAP, PIN (NISSIN)

45176-HM5-A81

$6.87

SEAL, PIN (NISSIN)

45177-HA7-651

$6.57

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$18.17

CYLINDER ASSY., R. FR. WHEEL

45310-HN2-006

$41.42

PISTON

45314-HN0-A01

$7.70

NUT, R. ADJUSTER

45316-VM0-003

$7.90

SCREW, R. ADJUSTING

45317-634-013

$5.16

LOCK, SPRING

45318-HA7-671

$5.61

SCREW-WASHER (4X6)

45319-634-003

$2.29

CYLINDER ASSY., L. FR. WHEEL

45330-HN2-006

$41.42

NUT, L. ADJUSTER

45336-VM0-003

$8.46

SCREW, L. ADJUSTING

45337-634-013

$5.53

CYLINDER ASSY. B, R. FR. WHEEL

45350-HN5-N01

$31.26

CYLINDER ASSY. B, L. FR. WHEEL This part replaces 45370-HN0-A01.

45370-HN5-N01

$31.26

CYLINDER ASSY. B, L. FR. WHEEL

45370-HN5-N01

$31.26

BOLT, FLANGE (8X20)

90115-HA7-651

$4.47

O-RING (64.6X1.7)

91357-HM7-003

$4.99

BOLT-WASHER (6X12)

93402-06012-08

$1.63

NUT, HEX. (8MM)

94001-08000-0S

$1.31

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.31

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.31

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.31

WASHER, SPRING (8MM)

94111-08800

$0.91

CLIP, TUBE (C6.5)

95002-35000

$0.69

BULK HOSE, VACUUM (3.5X1000) (3.5X390)

95005-35001-30M

$10.65
