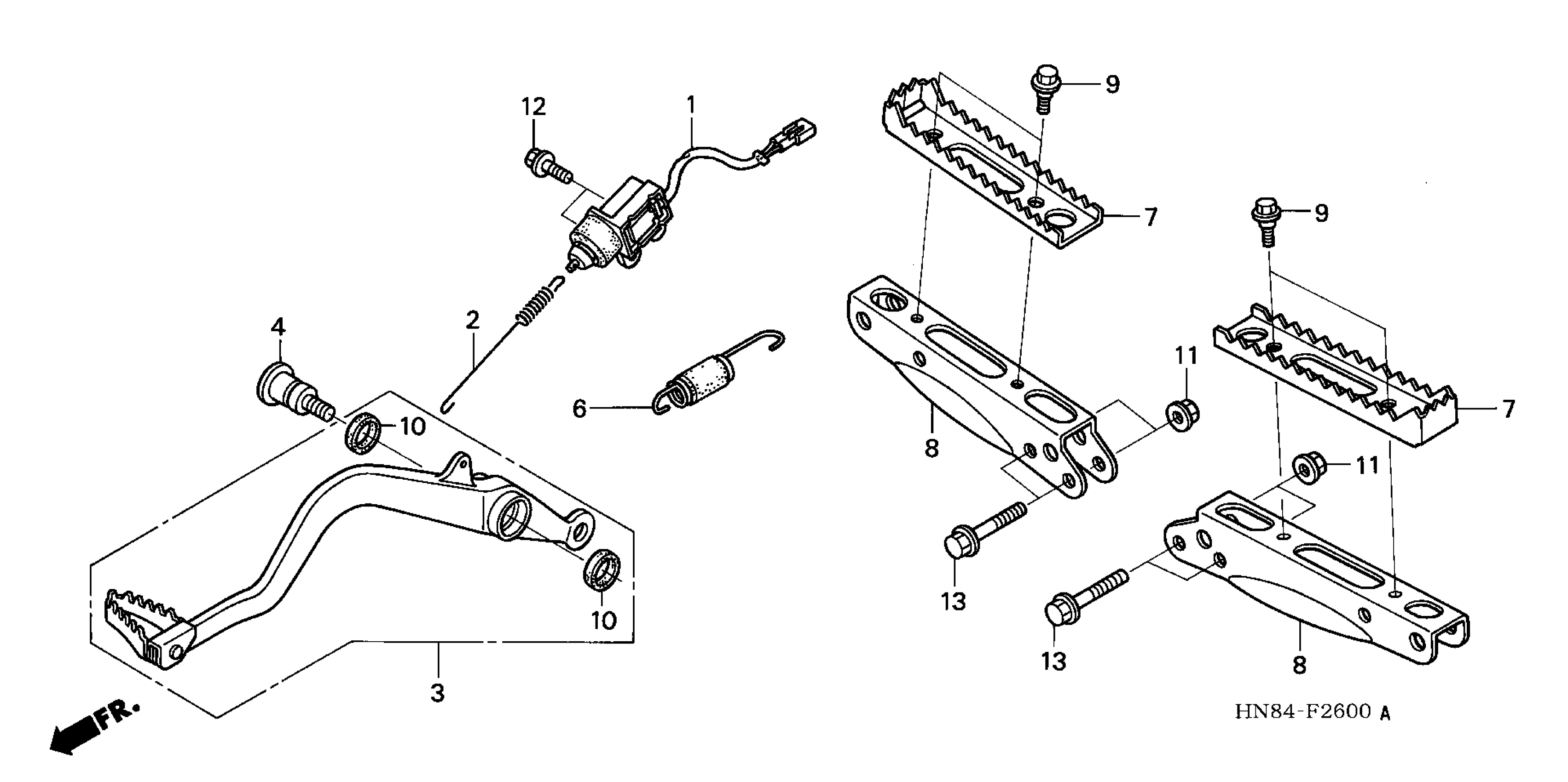

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 STEP Diagram

SWITCH ASSY., RR. STOP

35350-HN8-003

Unavailable

SPRING, STOP SWITCH

35357-HN8-000

$3.51

PEDAL, BRAKE This part replaces 46500-HN8-A00.

46500-HN8-000

Unavailable

SHAFT, BRAKE PIVOT

46513-MBN-670

$14.33

SPRING ASSY., RR. BRAKE

46520-HN8-000

$7.83

STEP

50610-HN2-000

$32.67

BRACKET, STEP

50611-HN8-000

$26.02

BOLT, FLANGE (6MM)

90111-197-890

$3.32

DUST SEAL (15X20X2.5)

91251-444-000

$4.03

NUT, FLANGE (8MM)

94050-08000

$0.86

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

BOLT, FLANGE (6X12) This part replaces 95801-06012-08.

95701-06012-08

$1.48

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
