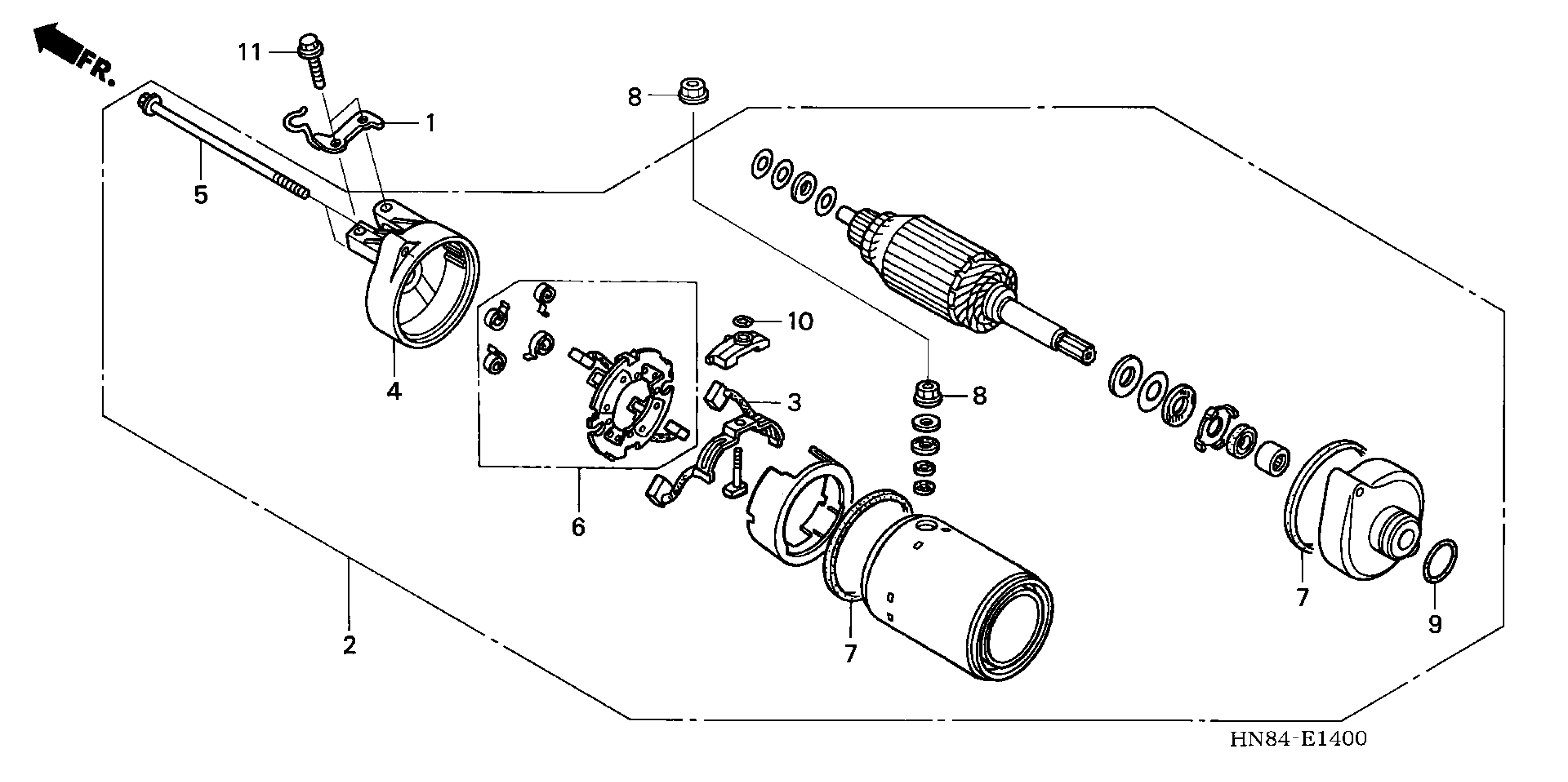

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 STARTER MOTOR Diagram

#

Description
Price

1

CLIP, HOSE

19315-HN8-000

Unavailable

2

STARTER MOTOR ASSY.

31200-HN8-003

$434.81

3

TERMINAL SET, BRUSH

31201-MR6-008

$21.48

4

BRACKET, RR.

31203-HN8-000

$16.68

5

BOLT, SETTING

31205-MR1-008

$3.64

6

HOLDER SET, BRUSH

31206-MR6-008

$22.58

7

RING

31207-KS5-901

$2.97

8

NUT-WASHER (6MM)

90071-MB0-000

$1.91

9

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

9

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

10

O-RING (4X2)

91320-MB0-000

$2.24

11

BOLT, FLANGE (6X25)

95801-06025-00

$1.00
