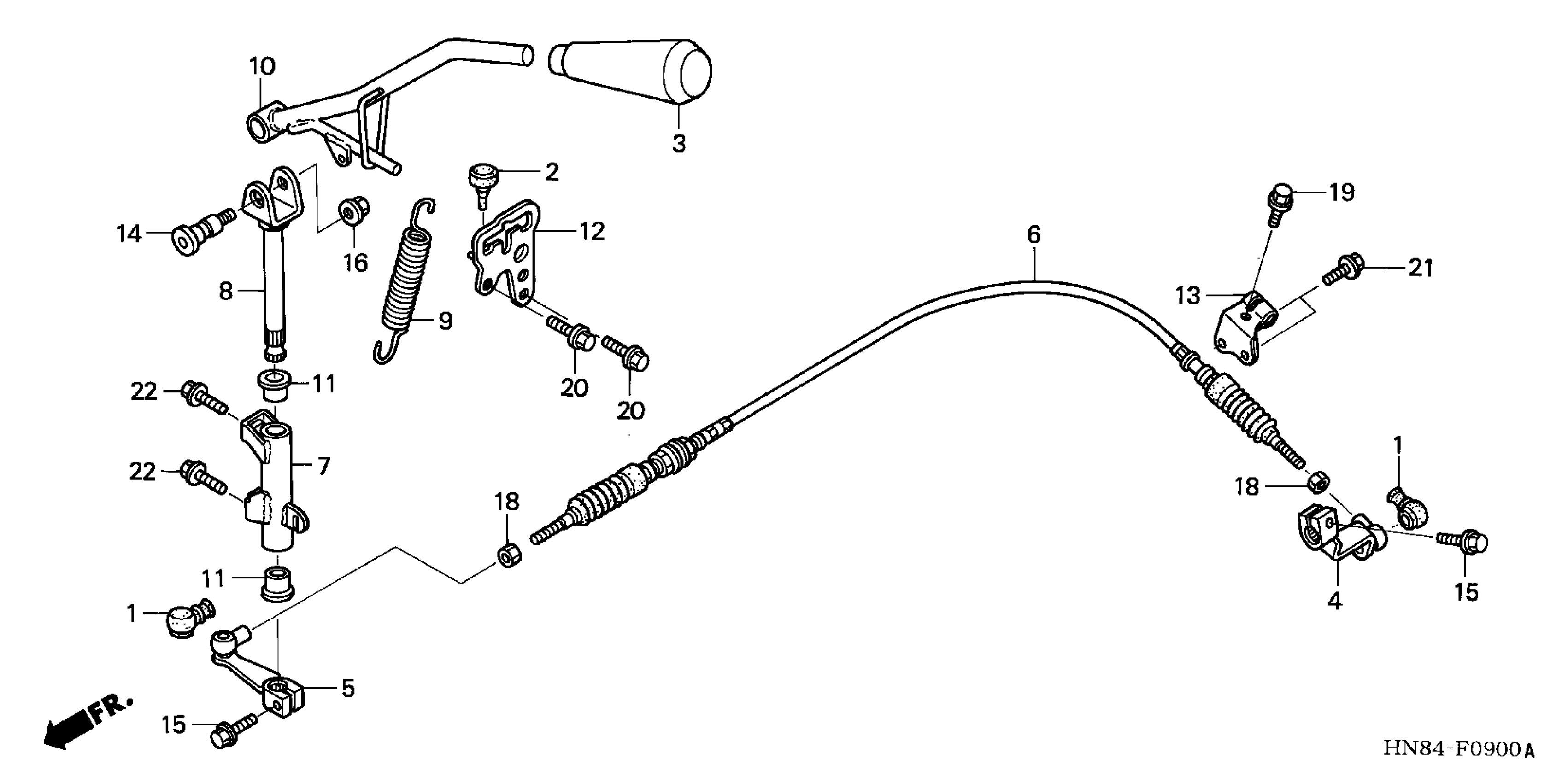

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 SELECT LEVER Diagram

COVER, DUST

24724-422-000

$6.68

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

KNOB, SELECT LEVER

54130-HN8-003

$38.87

ARM A, SHIFT CHANGE

54313-HN8-000

$36.18

ARM B, SHIFT CHANGE

54314-HN8-000

$30.33

WIRE, CONTROL

54315-HN8-003

$43.94

PIPE, PIVOT

54320-HN8-000

$29.97

PIPE, PIVOT (INNER)

54321-HN8-000

$27.49

SPRING, SELECT LEVER

54324-HN8-000

$4.45

LEVER, SELECT

54325-HN8-000

$63.07

COLLAR, SHAFT

54326-HN8-000

$3.86

PLATE, SHIFT GATE

54330-HN8-000

$13.30

BRACKET, HOLDER

54343-HN8-000

$5.01

BOLT, CHANGE PIVOT

90115-KAF-000

$19.75

BOLT, FLANGE (6X20)

90118-968-000

$4.24

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

NUT, HEX. (6MM)

94002-06000-0S

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, SOCKET (6X12) This part replaces 96700-06012-00.

96600-06012-00

$1.74
