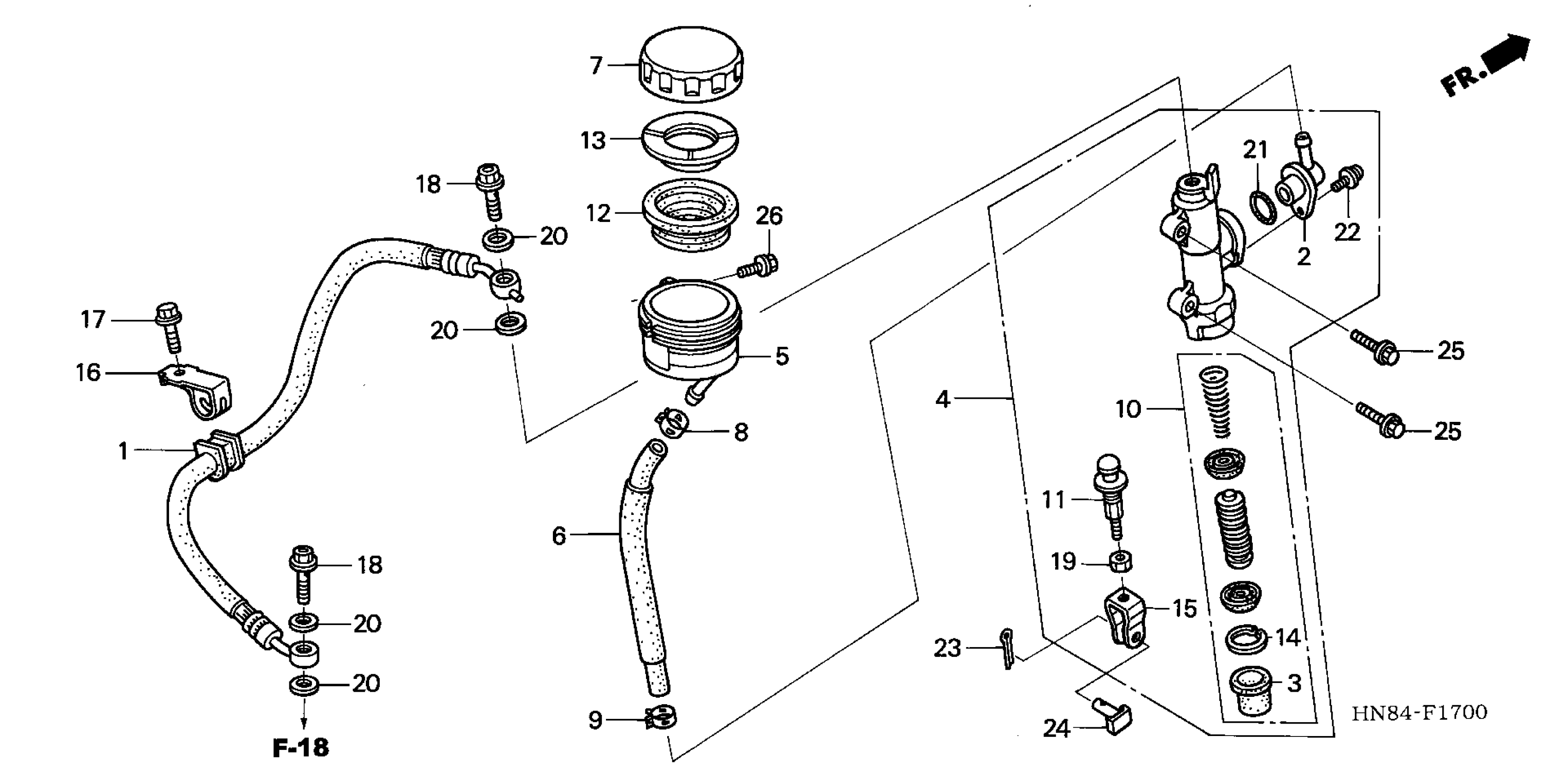

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-HN8-003

$18.66

2

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$11.10

3

BOOT

43504-MB2-006

$9.24

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) This part replaces 43510-HN8-006.

43510-HN8-305

$99.67

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) This part replaces 43510-HN8-016.

43510-HN8-305

$99.67

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)

43510-HN8-305

$99.67

5

CUP, OIL

43511-MR7-016

$29.99

6

HOSE, RR. BRAKE MASTER CYLINDER

43512-HN8-006

$7.10

7

CAP, OIL CUP

43513-MY1-006

$26.99

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.12

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$62.11

11

ROD, PUSH

43530-MM5-006

$25.59

12

DIAPHRAGM

45520-300-000

$8.34

13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

14

CIRCLIP

46182-500-013

$4.76

15

JOINT, BRAKE ROD

46504-HN8-006

$4.96

16

CLAMP B, FR. BRAKE HOSE

51208-HM8-000

$2.06

17

BOLT, FLANGE (6X10)

90107-HC5-000

$2.15

18

BOLT, OIL (10X22)

90145-MS9-612

$6.99

19

NUT, SPECIAL (8MM)

90315-MAT-006

$0.41

20

WASHER, OIL BOLT

90545-300-000

$5.79

21

O-RING (14.8X2.4)

91212-422-006

$2.37

22

SCREW-WASHER (4X12)

93893-04012-07

$1.32

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

23

PIN, SPLIT (2.0X15)

94201-20150

$1.04

24

PIN D, JOINT

95015-54000

$4.05

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

26

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable
