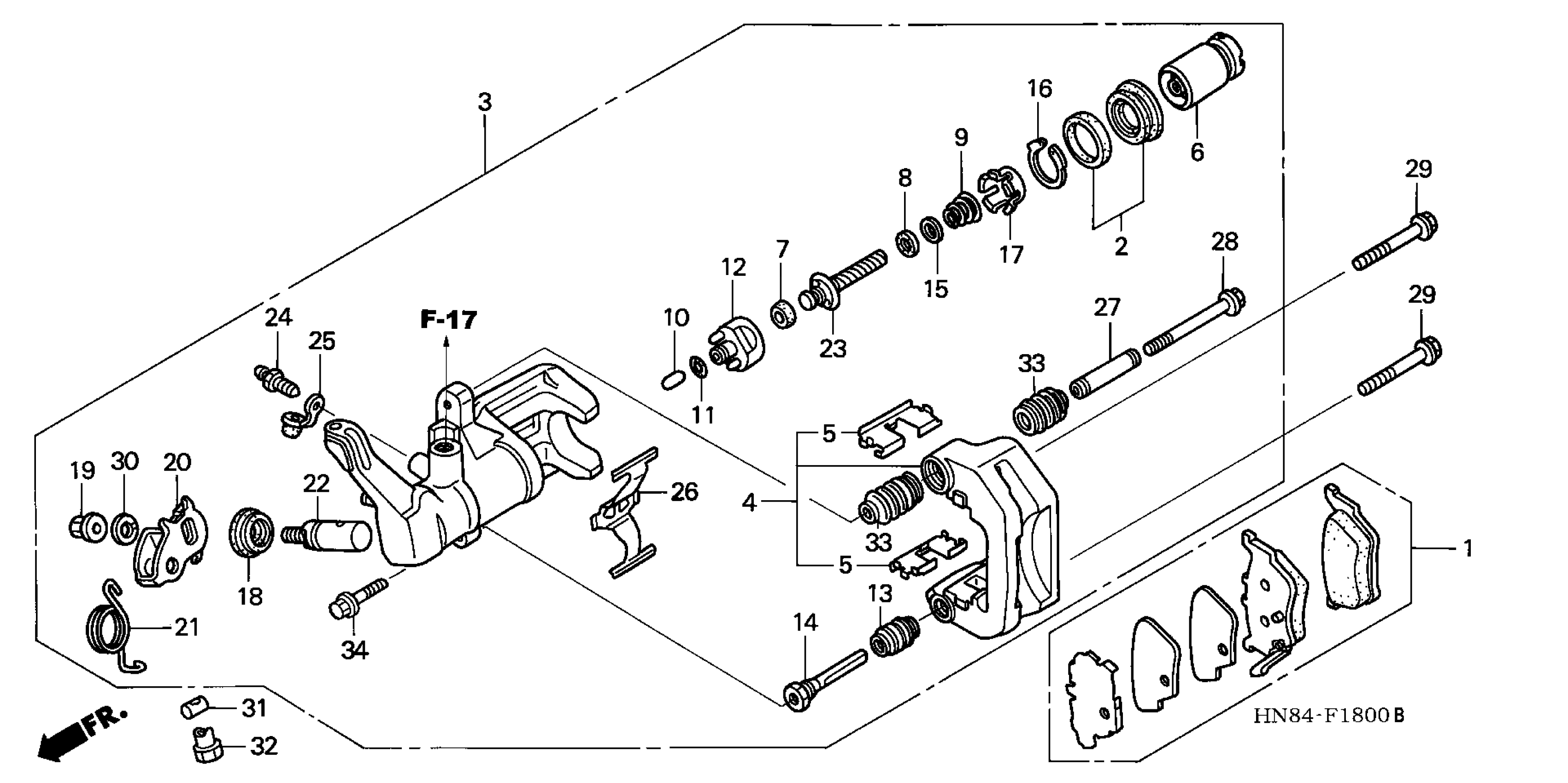

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. This part replaces 06435-HN8-006.

06435-HN8-016

Unavailable

1

PAD SET, RR.

06435-HN8-016

Unavailable

2

SEAL SET, PISTON

06451-HN8-006

$11.93

3

CALIPER SUB-ASSY., RR.

43150-HN8-006

$192.64

4

BRACKET, RR.

43210-HN8-006

$52.72

5

RETAINER, BRACKET

43211-HN8-006

$6.75

6

PISTON ASSY.

43215-SH3-931

$134.84

7

CUP

43218-SD2-931

$9.76

8

BEARING A

43223-SD2-932

$19.29

9

SPRING B, ADJUSTING

43224-SD2-931

$5.19

10

ROD

43229-SD2-931

$10.54

11

O-RING

43232-SD2-931

$3.18

12

PISTON, SLEEVE This part replaces 43233-S5A-J01.

43233-TR0-A01

$27.15

13

COVER, DUST

43234-S04-003

$6.24

14

PIN A

43235-S84-A51

$8.68

15

SPACER

43236-S04-003

$7.66

16

RING, RETAINING

43238-SD2-931

$9.63

17

GUIDE, SPRING

43241-SD2-931

$9.40

18

COVER, SHAFT

43242-SD2-933

$10.87

19

NUT (10MM)

43243-HN8-006

Unavailable

20

LEVER, BRAKE LOCK

43245-HN8-006

$9.19

21

SPRING, ARM RETURN

43246-HN8-006

$3.32

22

SHAFT B

43248-SD2-933

$37.91

23

BOLT, ADJUSTER

43249-S04-003

$21.59

24

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

25

CAP, BLEEDER

43353-461-771

$4.83

26

SPRING, PAD

45108-HN8-006

$6.82

27

SLEEVE

45235-S3Y-003

$15.85

28

BOLT, FLANGE (8X74)

45241-S3Y-003

$7.55

29

BOLT, FLANGE (8X40)

90131-MS6-900

$3.89

30

WASHER, SPRING (10MM)

94111-10800

$1.07

31

JOINT B, BRAKE ARM

95015-32001

$0.87

32

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

33

SLEEVE, BOOT

45233-HN8-305

$6.48

34

BOLT, FLANGE

43240-HN8-305

$4.50
