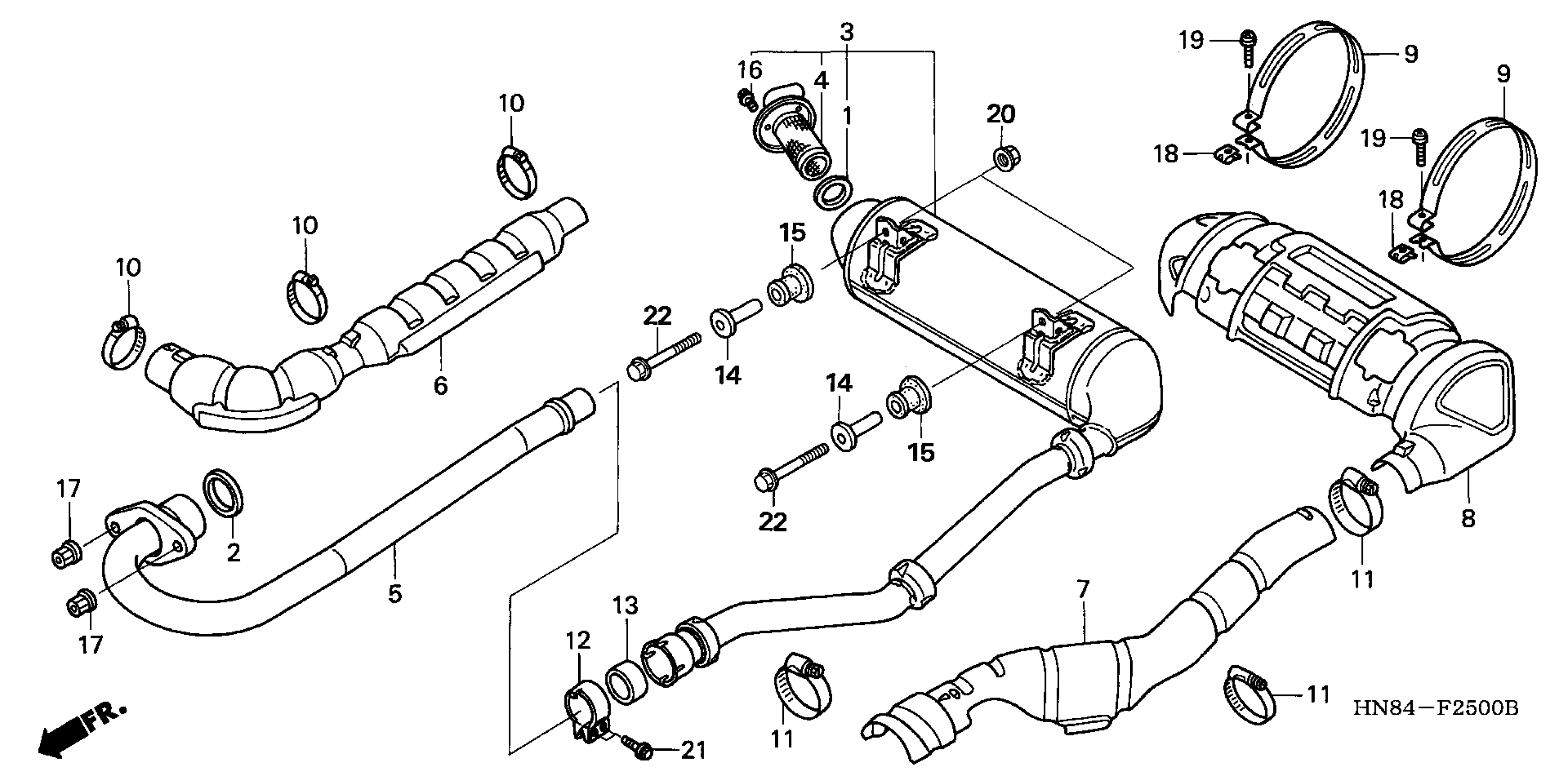

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KAE-870

$4.07

2

GASKET, EX. PIPE

18291-MM5-860

$4.81

3

MUFFLER ASSY., EX.

18300-HN8-010

Unavailable

4

ARRESTER, SPARK

18317-HN8-000

Unavailable

5

PIPE, EX.

18320-HN8-000

$60.39

6

COVER, EX. PIPE

18321-HN8-000

$41.14

7

PROTECTOR, HEAT

18322-HN8-000

Unavailable

8

COVER, MUFFLER

18323-HN8-000

$53.26

9

BAND, MUFFLER COVER

18324-HN8-000

Unavailable

10

BAND, EX. PIPE COVER

18325-HN2-000

$9.86

11

BAND, HEAT PROTECTOR

18326-HN2-000

Unavailable

12

BAND, FR. EX. PIPE

18373-MR5-000

$23.39

13

GASKET, MUFFLER

18392-MBH-000

$14.82

14

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.20

15

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.48

16

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

16

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

17

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

18

NUT, CLIP (5MM)

90677-KAN-961

$3.79

19

SCREW-WASHER (5X25)

93891-05025-08

$1.12

20

NUT, FLANGE (8MM)

94050-08080

$0.86

21

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

22

BOLT, FLANGE (8X50)

95701-08050-08

$2.17
