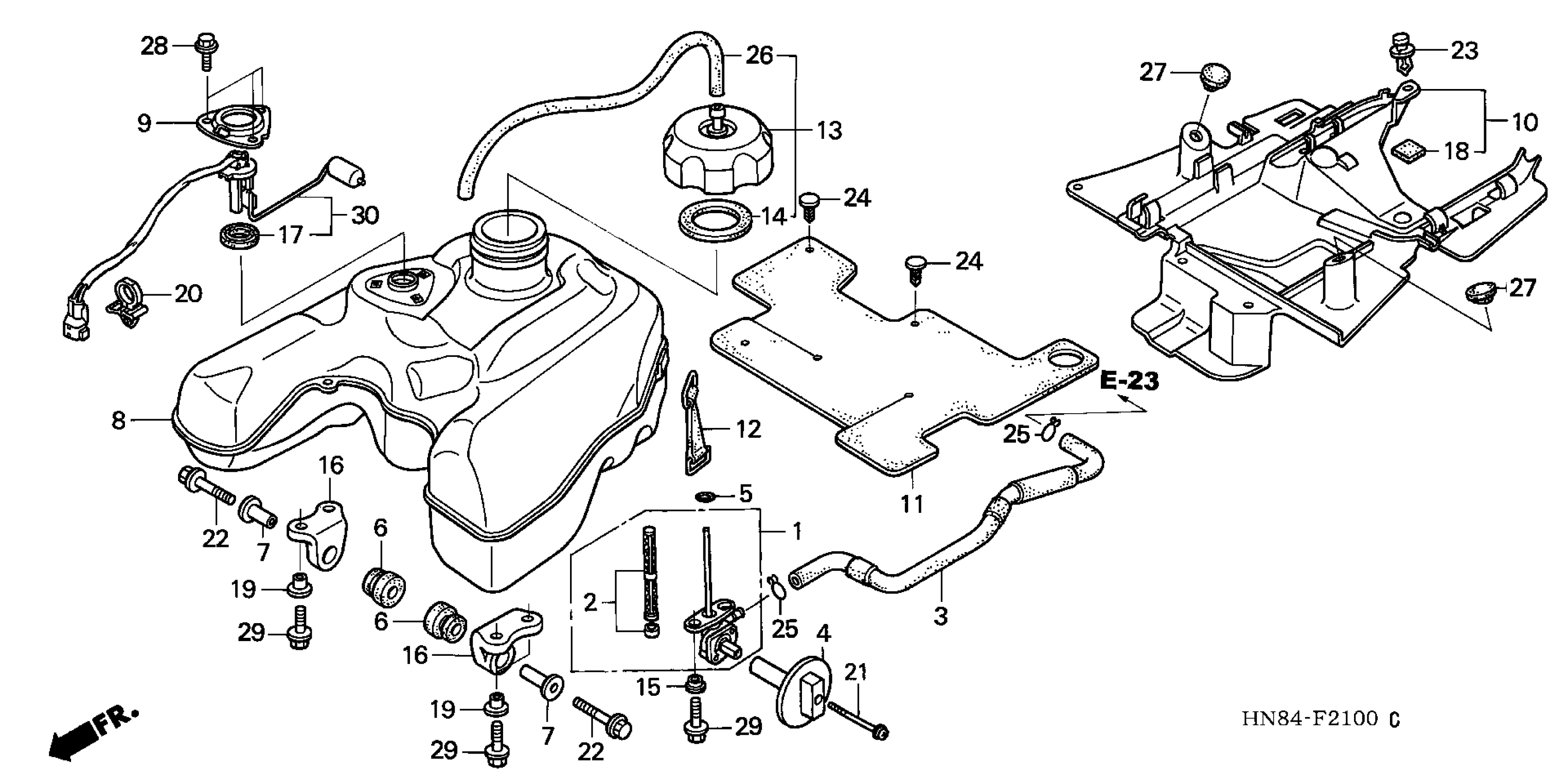

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-HM7-003

$113.65

2

SCREEN SET, FUEL STRAINER

16952-HM7-003

$21.08

3

TUBE, FUEL

16955-HN8-010

$4.60

4

LEVER, PETCOCK *NH1* (BLACK)

16963-HM8-000ZA

$9.33

5

O-RING (11.8X3.55)

16997-467-000

$2.04

6

RUBBER, TANK MOUNTING

17508-GBF-830

$5.64

7

COLLAR, TANK SETTING

17509-KS6-700

$8.42

8

TANK, FUEL

17510-HN8-010

$169.73

9

PLATE, UNIT SET

17515-GBL-760

$4.56

10

PROTECTOR, FUEL TANK HEAT (LOWER)

17515-HN8-000

Unavailable

11

RUBBER, HEAT PROTECTOR

17516-HN8-000

Unavailable

12

BAND, TANK

17517-HN8-000

$4.01

13

CAP ASSY., FUEL TANK

17620-HF7-000

$50.65

14

GASKET, FUEL CAP

17624-HF7-000

$7.47

15

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

16

BRACKET, FR. FUEL TANK

17634-KZ3-860

Unavailable

17

GASKET, BASE

37801-GA7-700

$4.93

18

RUBBER, CUSHION PAD

64207-MAM-A00

$4.07

19

COLLAR

84706-415-000

$2.16

21

SCREW-WASHER (5X80)

90101-HN7-000

$3.86

22

BOLT, FLANGE (6X40)

90137-KA3-830

$2.68

23

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

24

CLIP, WASHER MOUTH

91504-SD5-901

$4.20

25

CLIP, TUBE (B12)

95002-02120

$1.79

26

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.67

27

RUBBER C, STAND STOPPER

95011-63000

$3.73

28

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

29

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

30

FUEL UNIT SET

37080-HN8-000

$52.77
