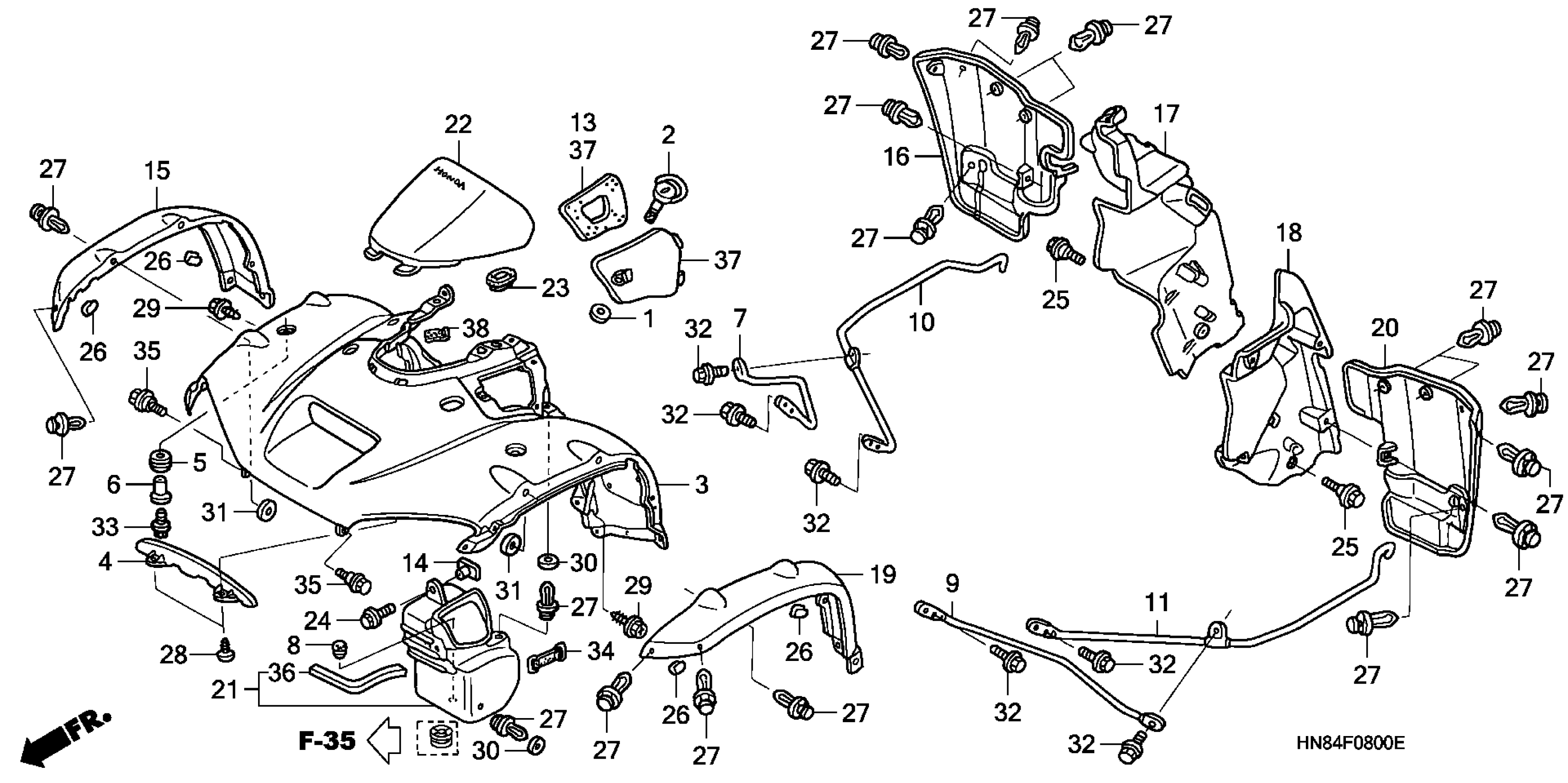

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 FRONT FENDER Diagram

#

Description
Price

1

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.24

2

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.67

2

STUD (6X21)

17225-KN5-671

$6.67

3

FRONT FENDE*G152* This part replaces 61100-HN8-000ZA.

61100-HN8-305ZC

$109.10

3

FRONT FENDE*R232* This part replaces 61100-HN8-000ZB.

61100-HN8-305ZB

$110.38

3

FRONT FENDER*NH1* This part replaces 61100-HN8-000ZD.

61100-HN8-305ZE

$97.18

4

PLATE, RADIATOR

61101-HN8-000

$7.12

5

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

7

STAY, R. FR. FENDER

61105-HN2-000

$32.68

8

PLUG, FR. FENDER

61105-KA8-000

$1.34

9

STAY, L. FR. FENDER

61106-HN2-000

$36.21

10

STAY, R. SPLASH GUARD CENTER

61107-HN2-000

$49.01

11

STAY, L. SPLASH GUARD CENTER

61108-HN2-000

$45.91

13

SEAL, UTILITY BOX LID

61125-HN8-000

$4.92

14

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

15

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HN8-000ZA

$27.63

16

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61862-HN8-000ZA

$28.56

17

FENDER, R. (INNER)

61863-HN8-000

$18.15

18

FENDER, L. (INNER)

61864-HN8-000

$19.46

19

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HN8-000ZA

$27.63

20

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61867-HN8-000ZA

$28.56

21

BOX, UTILITY

80210-HN8-000

$21.85

22

COVER, STEERING *NH1* (BLACK)

83400-HN8-000ZA

$15.87

23

GROMMET, SIDE COVER

83551-MA6-000

$3.19

24

BOLT, FLANGE (6X14)

90111-HC4-000

$2.86

25

BOLT, FLANGE (6MM)

90111-162-000

$2.66

26

U-CLIP

90651-HN8-000

$2.66

27

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

28

SCREW, TAPPING (5X16)

93903-25320

$0.90

29

SCREW, TAPPING (6X16)

93904-26210

$0.56

30

WASHER, PLAIN (8MM)

94101-08800

$1.74

31

WASHER, PLAIN (8MM)

94103-08800

$0.87

32

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

33

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

34

BAND A, BATTERY

95012-11001

$2.80

35

BOLT, RR. FENDER SETTING

90111-KAE-870

$4.24

36

SEAL B, UTILITY BOX

61126-HN8-000

$3.85

37

LID ASSY., UTILITY BOX *G152* (ADVENTURE GREEN)

61110-HN8-000ZA

$14.10

37

LID ASSY., UTILITY BOX *R232* (PATRIOT RED)

61110-HN8-000ZB

$13.44

37

LID ASSY., UTILITY BOX *NH1* (BLACK)

61110-HN8-000ZD

$14.09

38

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.44
