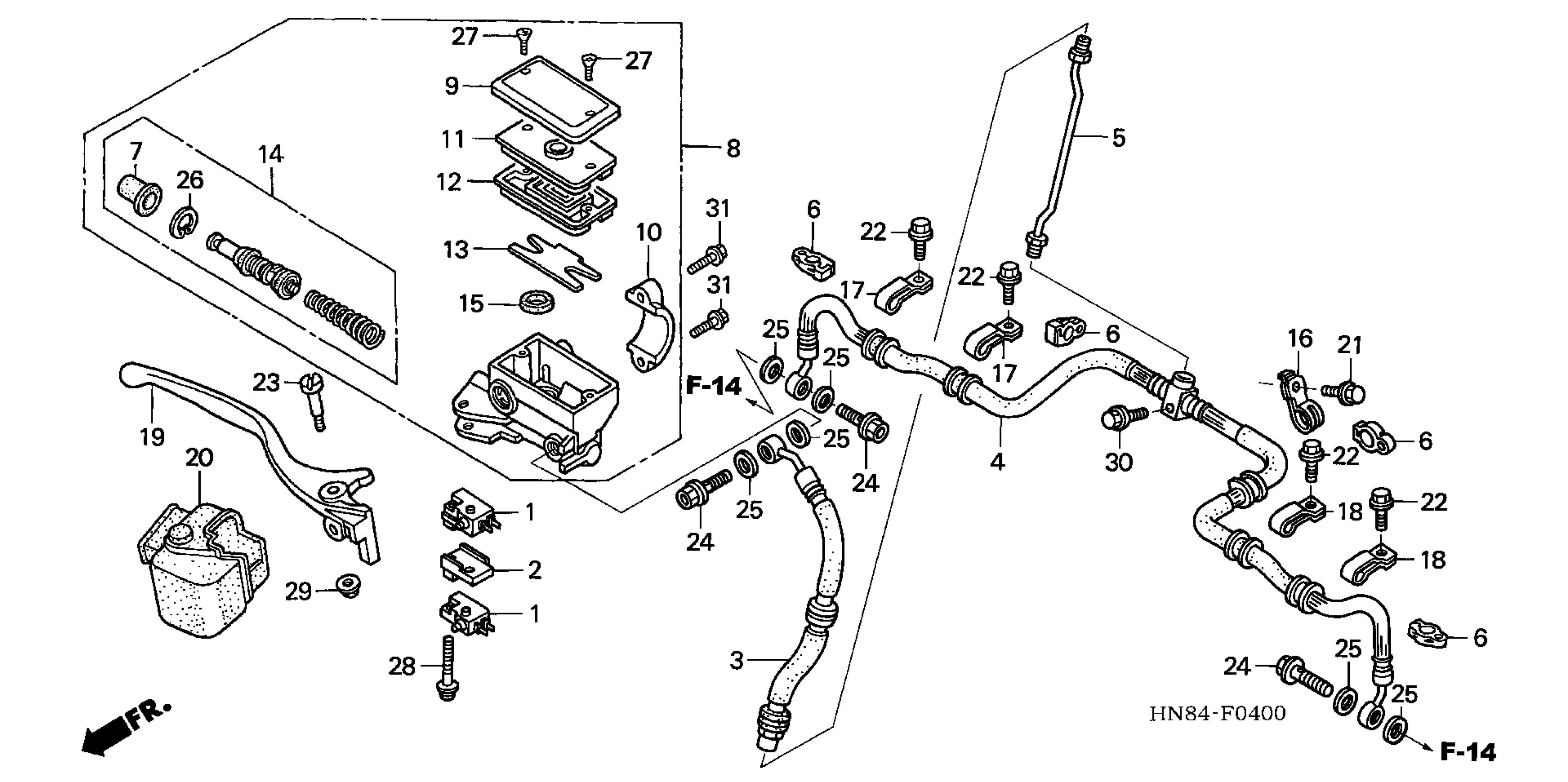

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

2

SPACER, FR. STOP SWITCH

35343-HN2-740

$3.67

3

HOSE A, FR. BRAKE

45126-HN8-003

$16.57

4

HOSE B, FR. BRAKE

45127-HN8-A41

$55.03

5

PIPE, FR. BRAKE

45128-HN8-000

$4.30

6

CLIP, BRAKE HOSE

45401-HM5-850

$1.93

7

BOOT

45504-410-003

$12.16

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-HN8-006

$88.78

9

CAP, MASTER CYLINDER

45513-MB4-673

$47.89

10

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

11

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC5-971

$6.52

14

MASTER CYLINDER SET

45530-HN8-006

$14.22

15

SEPARATOR

46666-961-013

$8.68

16

CLAMP A, FR. BRAKE HOSE

51207-HN8-000

$1.84

17

CLAMP C, R. FR. BRAKE HOSE

51208-HN8-000

Unavailable

18

CLAMP C, L. FR. BRAKE HOSE

51209-HN8-000

$46.80

19

LEVER, R. HANDLE

53175-HN8-006

$30.92

20

COVER, R. HANDLE

53176-HN8-000

$7.82

21

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

22

BOLT, FLANGE (6X14)

90112-GW3-000

$2.02

23

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

24

BOLT, OIL (10X22)

90145-MS9-612

$7.54

25

WASHER, OIL BOLT

90545-300-000

$3.99

26

CIRCLIP

90651-MA5-671

$2.66

27

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

28

SCREW-WASHER (4X30)

93893-04030-07

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

31

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
